ULS-200 Solid-State Point-Level Sensor

Part Number: ULS-200

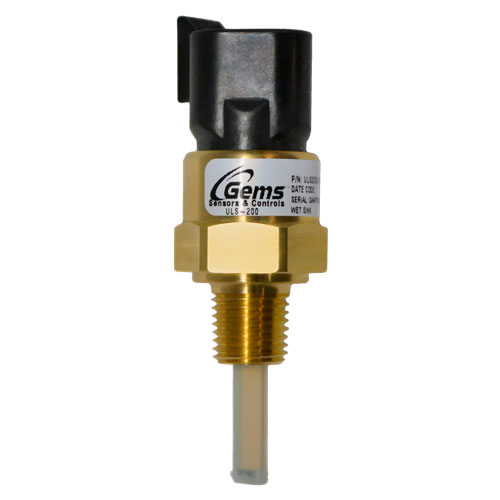

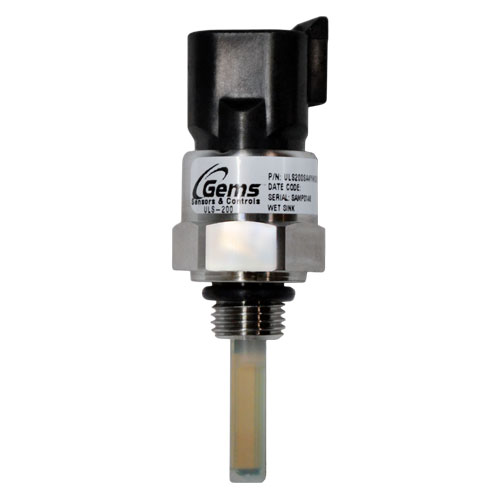

ULS-200 Solid-State Single-Point Level Sensor Brass ULS200BA1YW0000
Image is of similar product

PRODUCT DESCRIPTION:

The versatile ULS-200 is a solution for OEM applications. The sensor is compact, tolerates coating, and is rugged enough for mobile equipment in agricultural, construction, buses as well as power generation, semiconductor and HVAC applications.

Features

  •  IPX7 & IP6K9K
  • RoHS - CE
  •  Solid-State Output
  •  Sinking or Sourcing
  •  Wet or Dry Signal
  •  Resists Coating & Build-Up
  •  Water -Oil - Hydrocarbon-Based Liquids
  •  High Process Pressure to 300 PSIG
  •  Standard Configurations Include Choice of Time Delays
SKU
ULS-200
Sensor Type
Capacitance
Primary Material Of Construction
316L Stainless Steel, Brass
Wetted Materials
O-Ring - Buna-N, Probe Tip - PVDF (Aqueous) or PBT (Hydrocarbon)
Actuation Level
N/A
Maximum Pressure
300 psig (20.7 Bar)
Minimum Temperature
-40°F (-40°C)
Maximum Temperature
+257° F (+125° C)
Mounting Size
1/4"-18 NPT, 1/2"-14 NPT, G1/4"-19 B, M12x1.5-6g
Mounting Style
Any Orientation
Electrical Termination
Deutsch DT04-3P
Switch Type
Open Collector, Sinking or Sourcing Output, 9-32 VDC, 300mA Max.
Switch Operation
Wet or Dry, Optional Time Delays
Input
 9-32 VDC
Output
Solid-State, Wet or Dry, Sinking or Sourcing Output, 9-32 VDC, 300mA max
Approvals
RoHS, CE

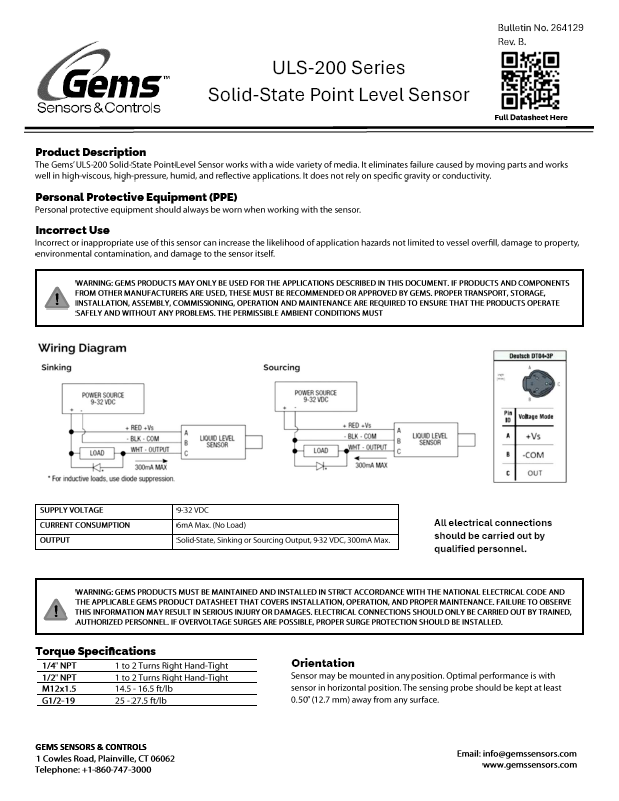

ULS-200 Sale Sheet

Format .pdf
Size 297 KB

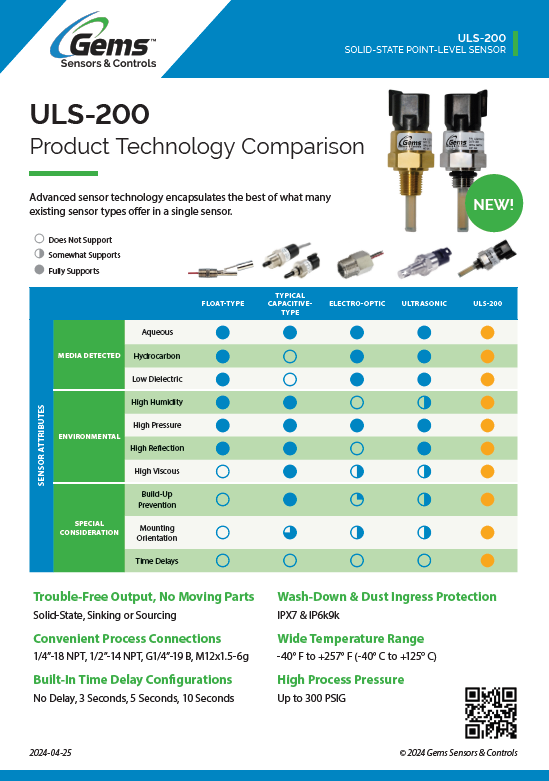

ULS-200 Technology Comparison Sheet

Format .pdf
Size 439 KB

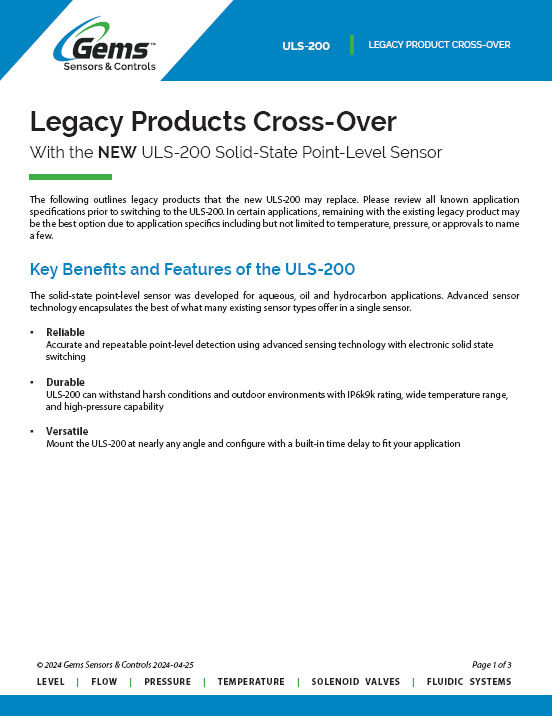

ULS-200 Legacy Cross-Over Sheet

Format .pdf
Size 523 KB

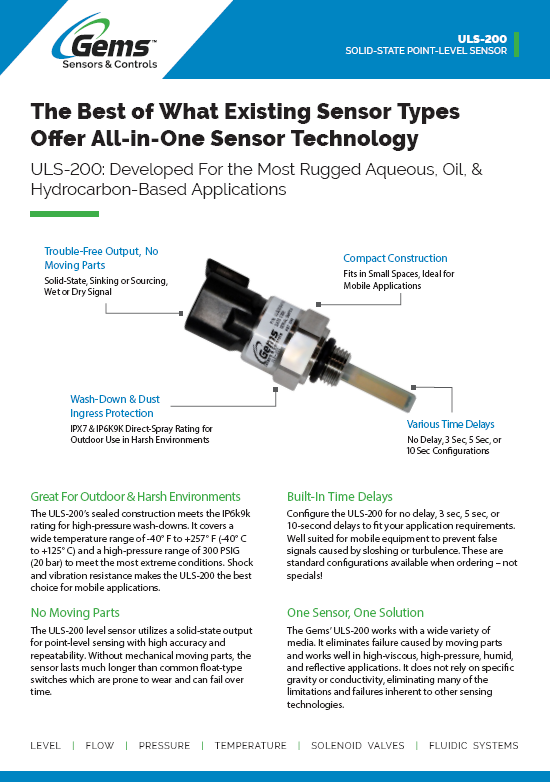

ULS-200 Product Guide

Format .pdf
Size 1 MB

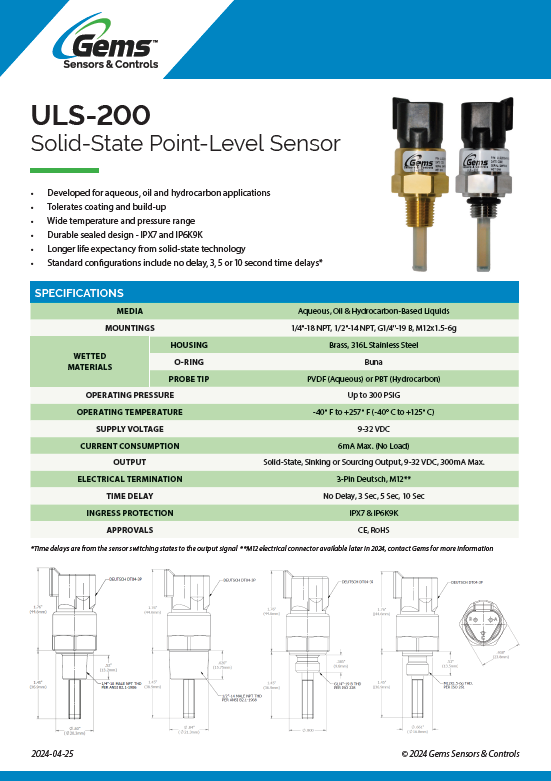

ULS-200 Datasheet

Format .pdf
Size 448 KB
