LS-7 Single-Point Type 12 Level Switch

Part Number: 191080

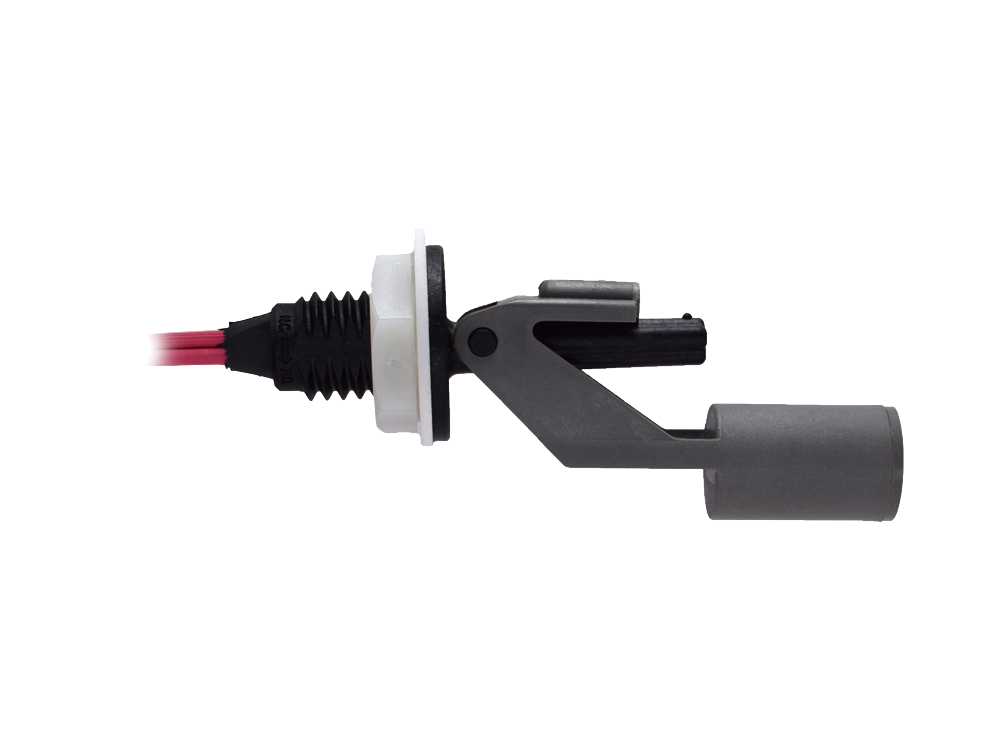

LS-7_Type12_191080
Image is of similar product

PRODUCT DESCRIPTION:

This compact Side Mount Level Switch is optimized for calcifying hot water applications. The Drop Float design keeps critical sensor elements out of the water thus eliminating liming or mineral deposit problems that can affect other level switches. This switch is ideal for use on food warmers, hot water heaters, steam cookers and small boilers or wherever water evaporation occurs. Made of Noryl and WRC approved for use in potable water.

LEAD TIME:

In Stock
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Float Design Eliminates Problems Associated with Liming Calcifying Applications
  • WRC Material Compliant
Sku
191080
Model
LS-7
Sensor Type
Float Type
Primary Material Of Construction
Plastic
Wetted Materials
Noryl
Stem Material
Noryl
Float Material
Noryl
Float Diameter
11/16"
Actuation Level
N/A
Min. Liquid SG
0.8
Maximum Pressure
100 psi
Minimum Temperature
-40°F
Maximum Temperature
225°F
Mounting Size
Internal
Mounting Style
Horizontal
Electrical Termination
24" Long, 22 AWG, TPE Zip Cord
Switch Type
SPST (20 VA)
Switch Operation
Selectable
Input
N/A
Output
N/A
Approvals
UL Recognized, CSA Listed, CE

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, LS-7 Plastic Switches

Format .pdf
Size 59 KB

LS-7 Product Guide

Format .pdf
Size 1 MB

Gems Sensors Catalog, LS-7

Format .pdf
Size 1 MB
  • Agricultural Equipment
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Automated Water Dispense
  • Food & Beverage - Beverage dispensing
  • Food & Beverage - Brewery
  • Food & Beverage - Other
  • Food & Beverage - Ovens
  • Food & Beverage - Washers
  • General Industry
  • General Industry - Alarm Panels
  • General Industry - Car Wash Equipment
  • General Industry - Chemical Metering/Injection
  • General Industry - Compressors
  • General Industry - Environmental
  • General Industry - Fountains
  • General Industry - Hydraulics
  • General Industry - Laser Equipment
  • General Industry - Machinery
  • General Industry - Maintenance Equipment
  • General Industry - Other
  • General Industry - Service Cart
  • General Industry - Skid Manufacturer
  • General Industry - Tanks
  • General Industry - Test Stands/Systems
  • General Industry - Welders
  • HVAC/R - Air Conditioning Systems
  • HVAC/R - Chillers
  • HVAC/R - Cooling
  • HVAC/R - Cooling Towers
  • HVAC/R - Evaporators
  • HVAC/R - General HVAC
  • HVAC/R - Heating/Condensate Systems
  • HVAC/R - Humidifers
  • HVAC/R - Other
  • HVAC/R - Refrigeration
  • HVAC/R - Warmers
  • HVAC/R Equipment
  • Medical - Imaging
  • Medical - Immunochemistry
  • Medical - IVD
  • Medical - Lab
  • Medical - Laboratory & Testing
  • Medical - Life Sciences
  • Medical - Medical Lasers
  • Medical - Other
  • Medical - Radiology
  • Medical - Renal Care / Dialysis
  • Medical - Sterilization
  • Medical Equipment
  • Off Highway Vehicles
  • OHV - Agricultural Equipment
  • OHV - Construction Equipment
  • OHV - Fertilizer
  • OHV - Forestry Equipment
  • OHV - Highway Construction Equipment
  • OHV - Industrial Equipment
  • OHV - Lawn Equipment
  • OHV - Material Handling
  • OHV - Military Vehicles
  • OHV - Mining Equipment
  • OHV - Other
  • OHV - Recreational Vehicles
  • OHV - Refueling Trucks
  • OHV - Specialty Equipment
  • OHV - Street Sweepers
  • Power Gen Equipment
  • Power Generation - AC General
  • Power Generation - Fuel Cell
  • Power Generation - Generators
  • Power Generation - Green Energy
  • Power Generation - Other
  • Power Generation - Turbines
  • Specialty Vehicles
  • Transportation
  • Transportation - Buses
  • Transportation - Commercial On-Road Vehicles
  • Transportation - Fire Trucks
  • Transportation - Fuel - Level Monitoring
  • Transportation - Other
  • Transportation - Rail - Other
  • Transportation - Rail - Passenger
  • Transportation - Specialty Vehicles
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
