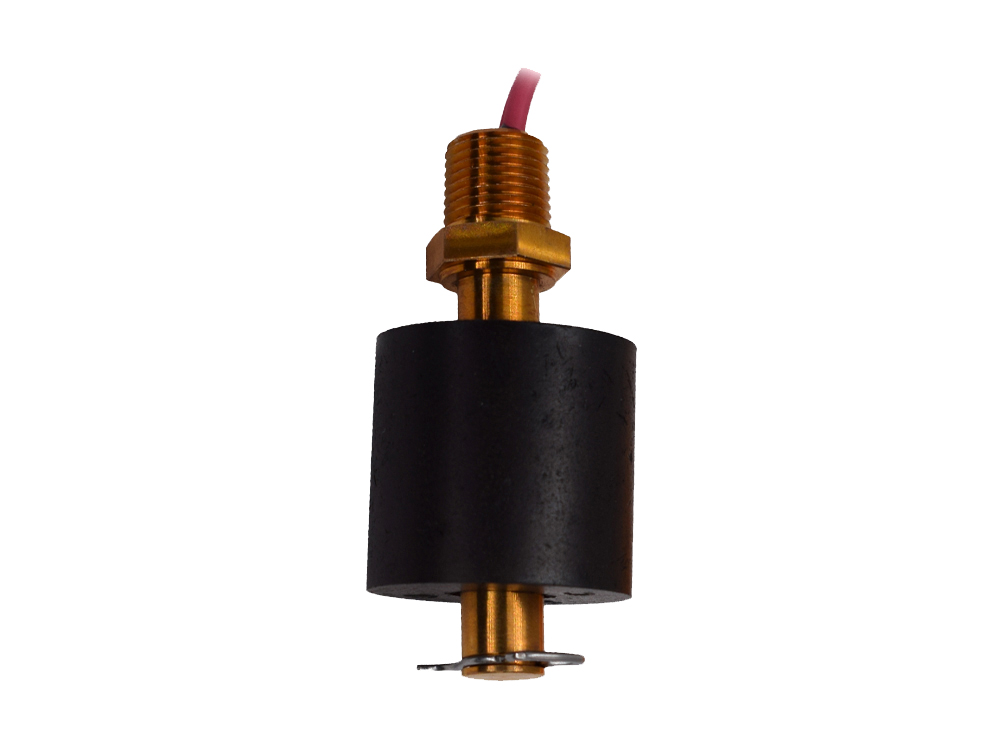

LS-1700 Single-Point Level Switch

Part Number: 01701
Image is of similar product


Small compact level switches combines reliability with low cost. The LS-1700 Series Single-Point Level Switch unit is equipped with a hermetically sealed SPST 20 VA reed switch and is operated by permanent magnets within the float. As the float is raised and lowered with changing liquid level, the hermetically sealed single point level switch closes as the float comes into proximity of the reed switch. The switch logic can be reversed on most models by inverting the float on the stem via a removable float retaining clip. The 20 VA switch is suitable for most solid state control circuits, by using a relay interface the switch can be made capable of switching higher current loads. The unit is easy to install and can be top or bottom mounted. Using an extension pipe and proper sealing techniques the unit can be extended into the tank for high, intermediate, and low level actuation points. The LS-1700 brass/buna version is ideal for low hydraulic fluid warning and other hydrocarbon applications. It can be factory custom configured for volume OEM applications and used as a water or oil level switch.

  • Rugged Durability
  • Ideal for Oils and Water
  • Broad Heat and Pressure Capabilities


  • Rugged Durability
  • Ideal for Oils and Water
  • Broad Heat and Pressure Capabilities
Sensor Type
Float Type
Primary Material Of Construction
Wetted Materials
316 Stainless Steel, Teflon, Epoxy
Stem Material
Stainless Steel
Float Material
Float Diameter
Actuation Level
Min. Liquid SG
Maximum Pressure
1,000 psi
Minimum Temperature
Maximum Temperature
Mounting Size
1/8" NPT Male
Mounting Style
Electrical Termination
24" Long, 22 AWG, Polymeric Leads
Switch Type
SPST (20 VA)
Switch Operation
Normally Open (Non-Reversible)

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, Level Switches

Format .pdf
Size 553 KB

Gems Sensors Catalog, Small Alloy Float Level Switches

Format .pdf
Size 2 MB
