Level Sensors & Switches

Leak Detection Sensors

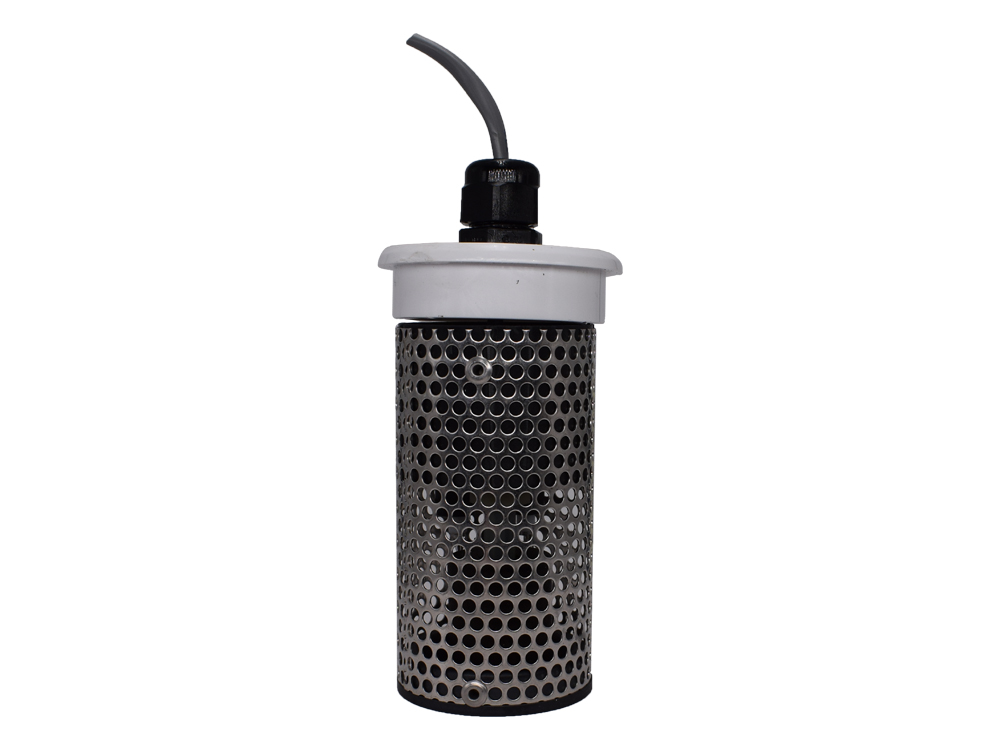

Part Number: SVP2
Leak_Detection_SVP-2
Image is of similar product

PRODUCT DESCRIPTION:

Warrick Leak Detection Sensors are designed for single wall piping, sump alarms and other small areas. Combine with Warrick Monitoring Panels for complete leak detection systems. Models include: DLP, DWP, DFP, SVP and DSP meeting a variety of applications including above and below-ground storage tanks, sumps and dry annular spaces.

  • Compact Size
  • Low Cost, Reliable
  • Hydrocarbon Detection

Features

  • Compact Size
  • Low Cost
  • Reliable
  • Hydrocarbon Detection
SKU
SVP2
Model
SVP
Sensor Type
Leak Detection
Wetted Materials
Nylon, Buna N, 304 Stainless Steel, PVC, Ryton
Stem Material
N/A
Float Material
N/A
Float Diameter
N/A
Actuation Level
N/A
Min. Liquid SG
N/A
Maximum Pressure
15 psi
Minimum Temperature
-40°F
Maximum Temperature
176°F
Mounting Size
N/A
Mounting Style
Vertical
Electrical Termination
16' Long, 20 AWG, (2) Conductor PVC Cable
Switch Type
SPST (20 VA)
Switch Operation
Normally Open (Non-Reversible)
Input
N/A
Output
N/A

Gems Sensors Catalog, Leak Dection Sensors

Format .pdf
Size 1 MB
  • General Industry
  • General Industry - Alarm Panels
  • General Industry - Environmental
  • General Industry - Tanks
  • Process Applications
  • Process Industry - Chemical
  • Process Industry - Other
  • Process Industry - Process Tanks
  • Process Industry - Processing
  • Process Industry - Pulp & Paper
  • Process Industry - Textiles
  • Process Tanks
  • Storage Tanks
  • Waster Water Applications
  • Water & Waste Water - Flood Level Monitoring
  • Water & Waste Water - Groundwater Monitoring
  • Water & Waste Water - Industrial Water Treatment
  • Water & Waste Water - Other
  • Water & Waste Water - Pumps
  • Water & Waste Water - Water Distribution
