865 Series Pressure Sensor

Part Number:
Pressure_865_8651001WD11T1C

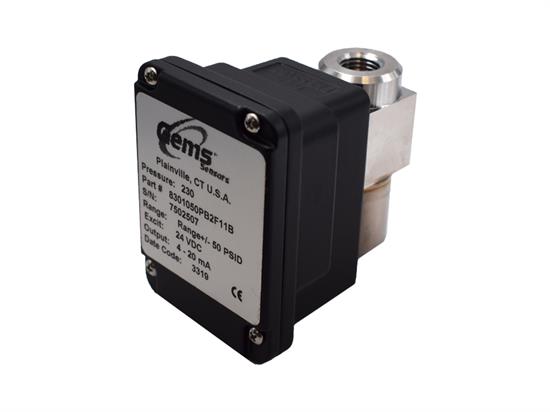

Image is of similar product

PRODUCT DESCRIPTION:

865 Series Pressure Sensor is an air pressure sensors for very low-pressure sensors ranges as low as 0.25" (6.35 mm) W.C. and feature ±1% full-scale static accuracy. Primarily used in Building Energy Management these sensors are capable of measuring air pressures and flows with the accuracy necessary for proper building pressurization and air flow control.

  • For Air or Non-Conductive Gas
  • 0.25 to 100 Inches (6.35 to 2540 mm) in W.C. (differential)/±0.1 to ±50 Inches in W.C. (bidirectional)
  • High Proof Pressure

Features

  • For Air or Non-Conductive Gas
  • 0.25 to 100 Inches (6.35 to 2540 mm) in W.C. (differential)/±0.1 to ±50 Inches in W.C. (bidirectional)
  • High Proof Pressure
Sensor Type
Capacitance
Purpose
Specialty
Minimum Temperature
0°F
Maximum Temperature
150°F
Minimum Pressure
0.25 in. WC (Unidirectional), 0.1 in. WC (Bidirectional)
Maximum Pressure
100 in. WC (Unidirectional), 50 in. WC (Bidirectional)

Gems Sensors Instructions, 865 Pressure Transducer

Format .pdf
Size 66 KB

Gems Sensors Catalog, 865

Format .pdf
Size 683 KB
