BG Series 2-Way NC Valve Back Pressure

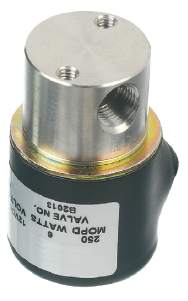

BG Series
When selecting and installing a two way normally closed solenoid valve, it is important to understand the amount of back pressure the valve can withstand.  Typically, the inlet is over-seat, and the outlet is under-seat.   The seat of the valve is the position where the plunger seal material will meet the valve body and make a liquid and airtight seal.

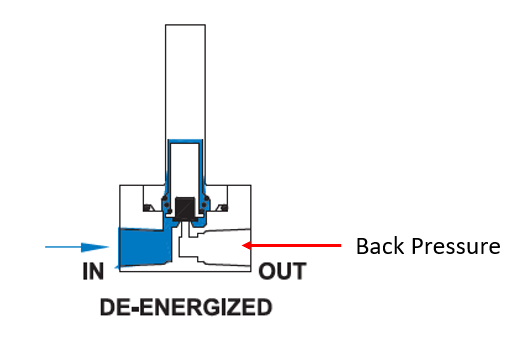

In 2-Way NC valves the inlet is over-seat, and the outlet is under-seat.  In the image below, in the de-energized state the valve is closed, and the blue is indicating the fluid (liquid or gas).  As it travels into the valve it enters the body and goes into the guide tube where it is over the plunger seal, hence over-seat.

BG Series 1Still looking at the de-energized state, you notice the outlet is white since no fluid can travel through with the valve closed.  It cannot because the plunger is down on the seat, on top of the outlet passageway, which in turn means the outlet is under the seat, or under-seat.  However, if there is any backpressure present (pressure going opposite of the inlet direction) it may overcome the spring and inlet pressure force and push the plunger up, which can lead to a problem in your system.


The below chart gives the approximate amount of back pressure this valve can withstand.  If you anticipate having back pressure within your system, it’s important to bench test the valve to fully understand the amount of back pressure it can withstand, but the below can be used as a reference.


Prefix MOPD (PSI) Back Pressure (PSI)
BG2005 400 60
BG2007 300 45
BG2009 250 37.5
BG2011 200 30
BG2017 150 22.5
BG2022 100 15
BG2029 50 7.5
