B Series Spare O-Rings

Gems Sensors B Series solenoid valves have O-Rings in them to provide a water or airtight seal.  Below is the list of part numbers in case an O-Ring needs to be replaced.  For Ported Bodies and Operator (OB) style, there is one O-Ring that makes a seal between the body and the guide tube flange.  For Manifold Mount styles (MM and MM3) there are an additional two more O-Rings used that seal the Manifold Mount body onto the manifold.  For all 3-Way and 2-Way Normally Open (NO) there is an additional O-Ring at the stop port adapter.

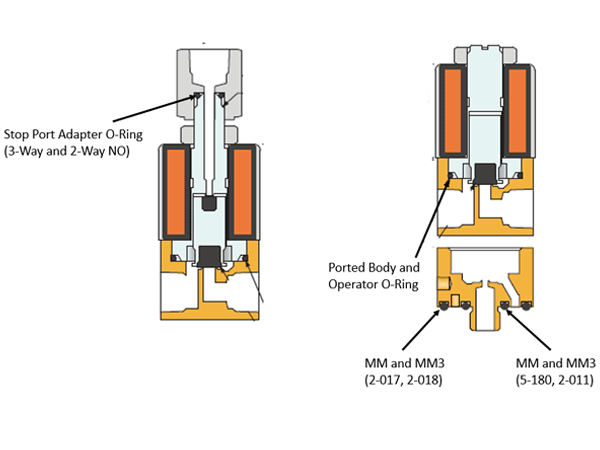

The below diagram shows where each O-Ring is located on the different valves.



Untitled-8

Ported Body and Operator (OB)
Seal Material P/N Size
Nitrile 115-001-00-16 2-016
EPR 115-010-00-16 2-016
Neoprene 115-007-00-16 2-016
Nitrile (NSF) 115-033-00-16 2-016
Perfluoroelastomer 115-036-00-16 2-016
PTFE 115-006-00-16 2-016
Viton 115-005-00-16 2-016



Manifold Mount (MM) 1/4-28 UNF-2A
Seal Material P/N Size
Nitrile 715-001-00-02 5-180
Nitrile 115-001-00-17 2-017
EPR 715-010-00-02 5-180
EPR 115-010-00-17 2-017
Neoprene 715-012-00-02 5-180
Neoprene 115-007-00-17 2-017
Nitrile (NSF) 715-014-00-02 5-180
Nitrile (NSF) 115-033-00-17 2-017
Perfluoroelastomer 715-013-00-02 5-180
Perfluoroelastomer 115-036-00-17 2-017
Viton 715-005-00-02 5-180
Viton 115-005-00-17 2-017



Manifold Mount (MM3) 5/16-24 UNF-2A
Seal Material P/N Size
Nitrile 115-001-00-11 2-011
Nitrile 115-001-00-18 2-018
EPR 115-010-00-11 2-011
EPR 115-010-00-18 2-018
Neoprene 115-007-00-11 2-011
Neoprene 115-007-00-18 2-018
Nitrile (NSF) 115-033-00-11 2-011
Nitrile (NSF) 115-033-00-18 2-018
Perfluoroelastomer 115-036-00-11 2-011
Perfluoroelastomer 115-036-00-18 2-018
Viton 115-005-00-11 2-011
Viton 115-005-00-18 2-018
Stop Port Adapter (3-Way and 2-Way NO)
Seal Material P/N Size
Nitrile 115-001-00-06 2-006
EPR 115-010-00-06 2-006
Neoprene 115-007-00-06 2-006
Nitrile (NSF) 115-033-00-06 2-006
Perfluoroelastomer 115-036-00-06 2-006
PTFE 115-006-00-06 2-006
Viton 115-005-00-06 2-006





Contact Gems Sensors for pricing and availability.
