RLI-G Probe Head Dimensions



When selecting and configuring a RLI-G Guided Wave Radar Level Sensor, it’s important to understand the approximate size of the probe head.  This is crucial so any obstructions above the tank do not interfere with the probe head.  Also, there is a local display within the probe head, so you want to make sure there is ample room to view that.

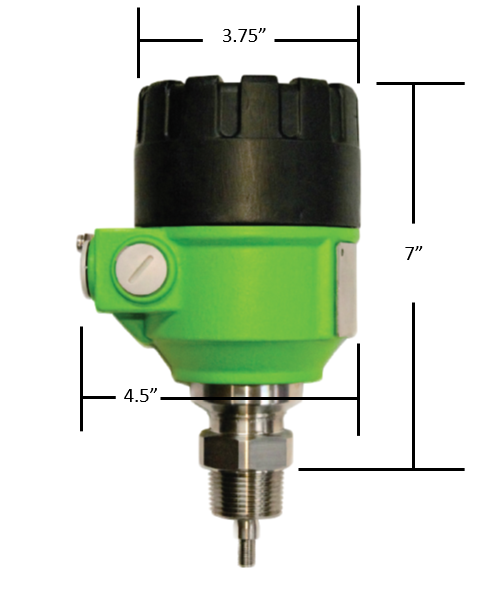

Below diagram gives the approximate dimensions of the probe head so that the RLI-G can be properly installed.  The 7” dimension is the height of the sensor above the tank connection.
