Bench Testing a 3xxx Series Pressure Sensor with a Ratiometric Output
Click here to download: 3100-3200 | Gems Sensors

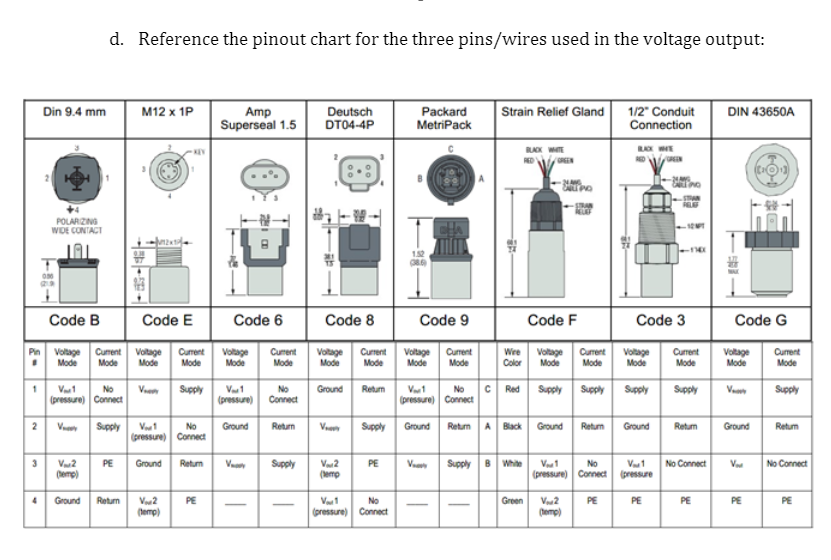

![](/images/default-source/resource-images/landing-pages/31xx-ratiometicd0dbb293bb79433eb4550ebaf2104c5f.png?sfvrsn=4d1fcf0d_1)

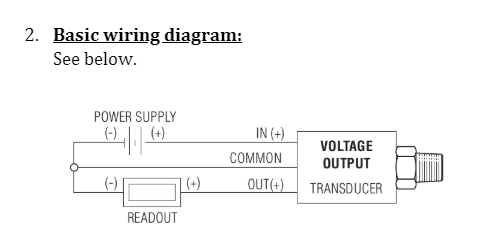

![](/images/default-source/resource-images/landing-pages/31xx-2-basic-wiring.png?sfvrsn=1cd396b6_1)
ii. See write up on Ratiometric sensors here

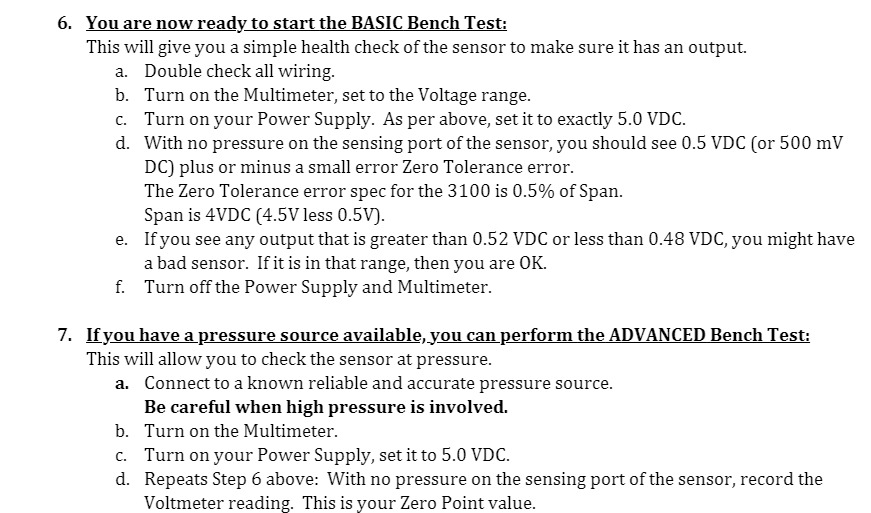

![](/images/default-source/resource-images/landing-pages/31xx-6-and-7.png?sfvrsn=8ad62c1e_1)
8. If you find that your sensor is not reading correctly, contact Gems with your part #, PO #, findings and for next step options. Technical Help Request Form | Gems Sensors
