Solenoid Valves in Fuel Cells Provide High Flow of Hydrogen

Fuel Cells are a green alternative to traditional fossil fuels like gasoline or diesel.  Fuel cells are beginning to be more widely used in transportation vehicles like public buses, forklifts, refuse trucks, backup generators, and more.  Chances are you’ve seen a Hydrogen Fuel Cell powered city bus driving around your nearest city.  They are clean burning, give off no emissions, and only have water as it’s byproduct.  One of the energy sources needed to run a fuel cell is hydrogen (the other is oxygen).  In order for the fuel cell to run correctly, the flow of the hydrogen gas needs to be controlled effectively with a solenoid valve.


Challenge:  Finding a compact solenoid valve that can provide adequate flow and still withstand the harshness of hydrogen over extended periods of time.


Hydrogen is a corrosive gas that can attack and break down certain metals and make them brittle.  This brittleness can cause the internal components of a valve (plunger, spring, guide tube, stop piece) to fail if they are not constructed of premium material.  Also, leaking hydrogen into the atmosphere is extremely dangerouas it is very flammable.  In addition, if hydrogen accumulates in a confined area, it is an asphyxiant as it will displace oxygen

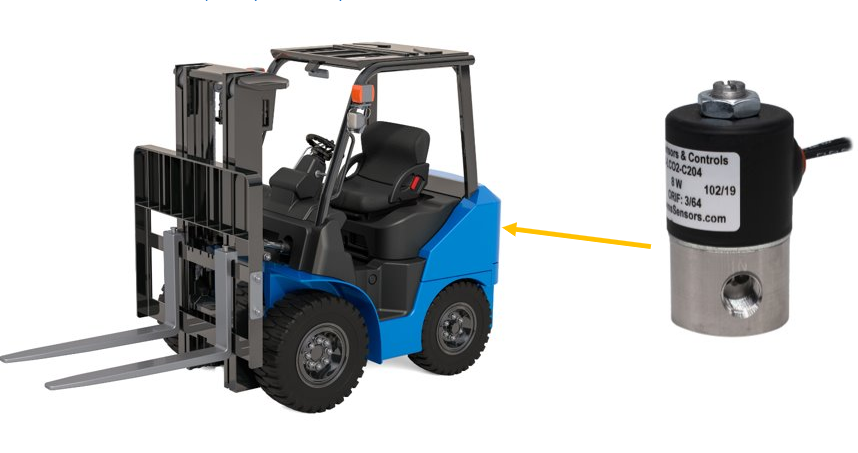

Solution:  Gems B Series Solenoid Valve


Utilizing all Stainless-Steel construction (316SS body and guide tube, and 430FR SS for plunger and stop piece), the Gems’ B Series Solenoid Valve is compatible with Hydrogen Fuel Cell systems. This will lead to a long-lasting solution for trouble-free operation.  With Max Operating Pressure Differential up to 400 PSI and orifice sizes as large as 3/16” the B Series Solenoid valve provides high flow of hydrogen to power the fuel cell.


Additional Features of the Gems’ B Series Solenoid Valve:

  • EPDM O-Ring seal and EPDM plunger seal are compatible with Hydrogen gas.
  • Available in 2 or 3-Way configurations, Normally Closed or Normally Open
  • Encapsulated coils provide moisture intrusion protection 
  • Has bubble tight sealing capability and is designed to last for millions of cycles in general purpose liquid, gas, and vacuum applications 
  • Available in various orifice sizes, body materials, wattages, and coil constructions 


Additional Sensor Options for Fuel Cell Systems:

  • XLS-1:Ultrasonic level switch for fluid reservoirs
  • 3500 Pressure Sensor:  Monitors hydrogen pressure
  • CAP-3 (or CAP-300):  coolant level
  • ELS-950/1100/1150:   level of DI water tank
  • PS61:  Monitoring pressure of the water part of system
