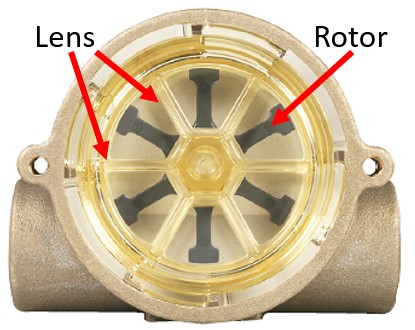

Gems RotorFlow® sensors RFO, RFA, RFS, RFO-PW all include a translucent polysulfone lens. This allows the operator to easily view the rotor for visual confirmation of flow.
![](/images/default-source/default-album/rotorflow-1.jpg?sfvrsn=8c2a1a4_1)

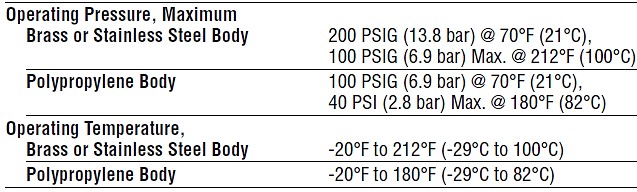

The polysulfone lens is durable plastic that is rated up to 200 PSIG (13.8 bar) or up to 212° F (100° C) when paired with a brass or stainless steel housing. However, as the media temperature rises, the allowable operating pressure decreases. Likewise, as pressure increases, the acceptable media temperature goes down.
![](/images/default-source/default-album/rotorflow-2.jpg?sfvrsn=b93439f2_1)

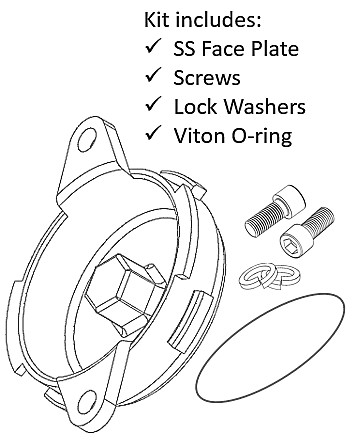

Many applications require operating pressure and/or temperature above the more moderate limits the polysulfone lens provides. To cover these applications Gems offers a stainless steel face plate kit. The stainless steel will not allow the operator visual confirmation of flow, but all other functionality remains unchanged.
![](/images/default-source/default-album/rotorflow-3.jpg?sfvrsn=f1ea7bd_1)
These face plates are made of CF3M cast stainless alloy and manufactured with all machined surfaces. They are offered for all of the Rotorflow® sizes; 1/4”, 1/2”, 9/16“, 3/4“, 1”. By adding the SS face plate, greater operating temperatures and pressures can be achieved up to 300° F (260° C) and 500 PSIG (34.5 bar).
RotorFlow® Stainless Steel Face Plate Kit Part Number:
Fits RFO, RFA, RFS, RFO-PW
- 1/4”, 1/2“, 9/16“ = 185429
- 3/4“, 1” = 216598
Request a quote HERE.
RotorFlow® catalog:
