Level Sensing in Mobile Agricultural Equipment
June 29, 2023
Low coolant level detection in large tractors is needed to protect the engine from overheating. This requires a simple, reliable sensing solution with long life to handle the conditions often present with agricultural equipment.
Challenge
Traditional float-type level switches often face durability and reliability issues in mobile agricultural equipment.
Vibration from the moving vehicle can wear down the moving parts, leading to shorter life spans and mechanical failures. Float-type switches rely on the physical movement of a mechanical float to detect falling coolant levels, which can result in delays or inaccuracies. Installation challenges, including the need for precise orientation, further complicate their use and can lead to operational failures.
Solution

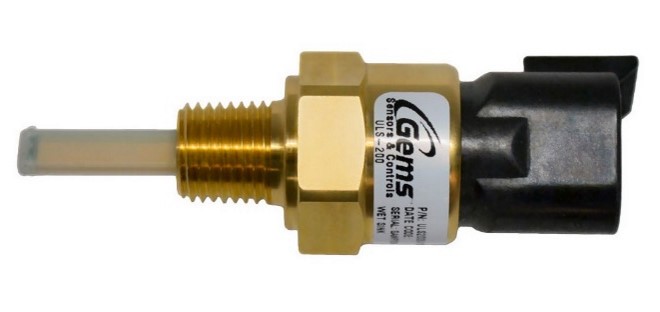

Gems Sensors’ ULS-200 Solid-State Point-Level Sensor
The Gems ULS-200 Solid-State Point-Level Sensor is designed to overcome the challenges posed by traditional float-type sensors. Featuring advanced solid-state technology, the ULS-200 eliminates moving parts, making it highly resistant to vibration and mechanical wear. Its rugged construction and IP6K9K sealing ensure durability in harsh environments, including exposure to dust, water, mud, and pressure washing. The ULS-200 is factory-tested to meet stringent off-highway vehicle (OHV) standards, reducing validation times and accelerating time-to-market for equipment manufacturers.
Features & Benefits
- No Moving Parts: Increases durability and eliminates mechanical failure from vibration or wear.
- IP6K9K Sealing: Ensures reliable performance even in extreme dust, water, and pressure conditions.
- Wide Temperature Range: Operates from -40°F to 257°F to handle extreme weather conditions.
- Withstands Vibrations: Built to endure up to 2000 Hz vibration per IEC 60068-2-64 standards, ensuring reliability in high-vibration environments.
- Simple Installation: Flexible mounting options reduce complexity and ensure proper operation regardless of orientation.
- Configurable Time Delays: Prevents false readings caused by turbulence or sloshing, improving accuracy and reducing downtime.
The ULS-200’s solid-state design and advanced sensing technology make it the ideal choice for detecting low coolant levels in mobile agricultural equipment. Its robust construction and reliable performance simplify operations, extending the lifespan of your machinery and ensuring critical engine protection in demanding applications.
