Gems Pressure Sensors Monitor Hydraulic Cylinders on Large Form Press

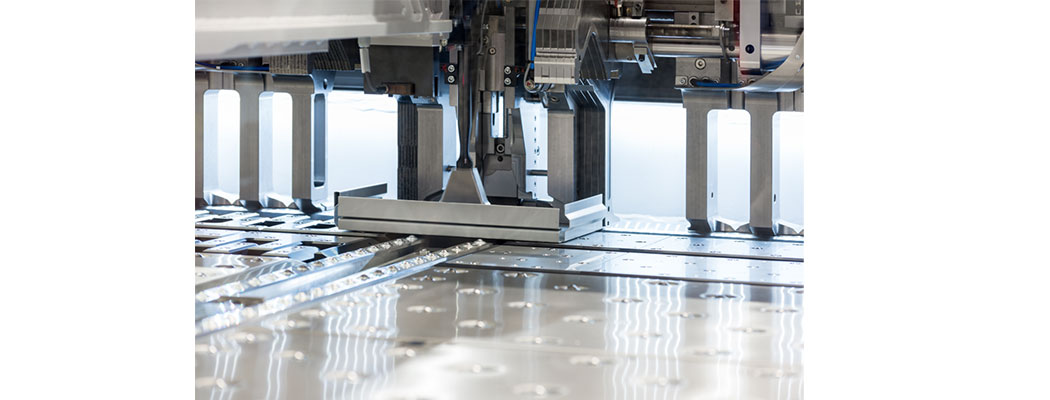

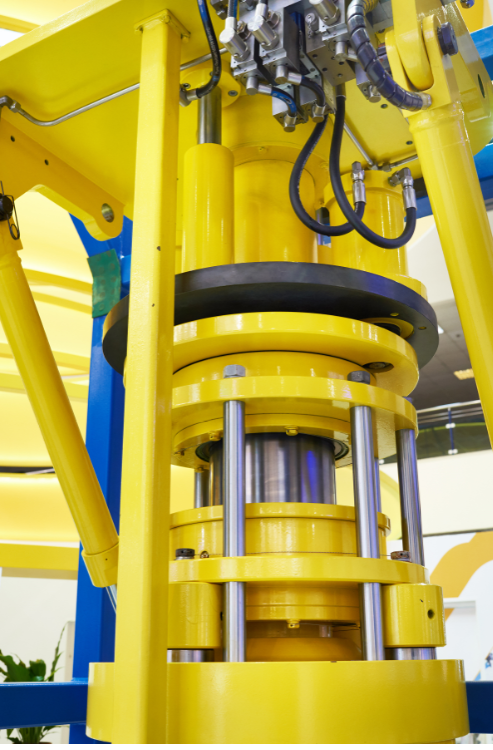

A form press is a large industrial machine used in a production facility to form sheet metal parts. They could be sheet metal body parts for an automobile, a steel bracket for a dishwasher or even a housing for an electrical panel.  These machines incorporate hydraulic cylinders, which are utilized to control the amount of pressure applied to form the parts.


To help increase cylinder position control accuracytypically two pressure sensors are utilized to measure the differential pressures across the hydraulic cylinder when making high tolerance parts.  The pressure sensor performance matching, stability, and ability to withstand high over-pressure situations are critical to ensuring parts are stamped to the correct toleranceThe extreme pressure and force applied on these large form presses can range from 3,000 PSI up to 15,000 PSI with large pressure spikes that could exceed these operating pressures by 2 to 4 times.



Challenge: Sensor stability, 1:1 interchangeability and ability to withstandhigh over pressure

Accurately measuring the applied pressure force helps to ensure the production parts are formed correctly. Too much pressure can distort the part, too little pressure prevents the part from being shaped the correct way and to specification. Pressure sensors must be able to deliver the accuracy yet withstand large pressure spikes without degradation of sensor performance in a harsh operating condition.



Solution: 3200 Series Heavy Duty Pressure Sensor

Our 3200 Series Pressure Sensors provide both the accuracy and high over pressure protection required In addition, 3200 Series Pressure Sensors offer high 1:1 interchangeability from sensor to sensor which enables manufacturers to easy select married pairs without having to sort thru to find the right one.  The high accuracy, 1:1 interchangeability and over pressure ratings within our 3200 Series pressure transducers ensure high part quality while also surviving in harsh operating conditions.



https://www.gemssensors.com/blog/blog-details/3100-vs.-3200-pressure-sensors



Click here to learn more about the difference between the 3100 and 3200 Series Pressure Sensors.



Additional Sensor Options for Large Form Presses:

  • CAP-3:  coolant level
  • ELS-950/1100/1150:   Optical switch for fluid (oil) reservoirs
  • PS61/PS71:  Monitoring pressure of the oil/water part of system
