Level Sensors & Switches

LS-800 Multi-Point Level Switch

Part Number:

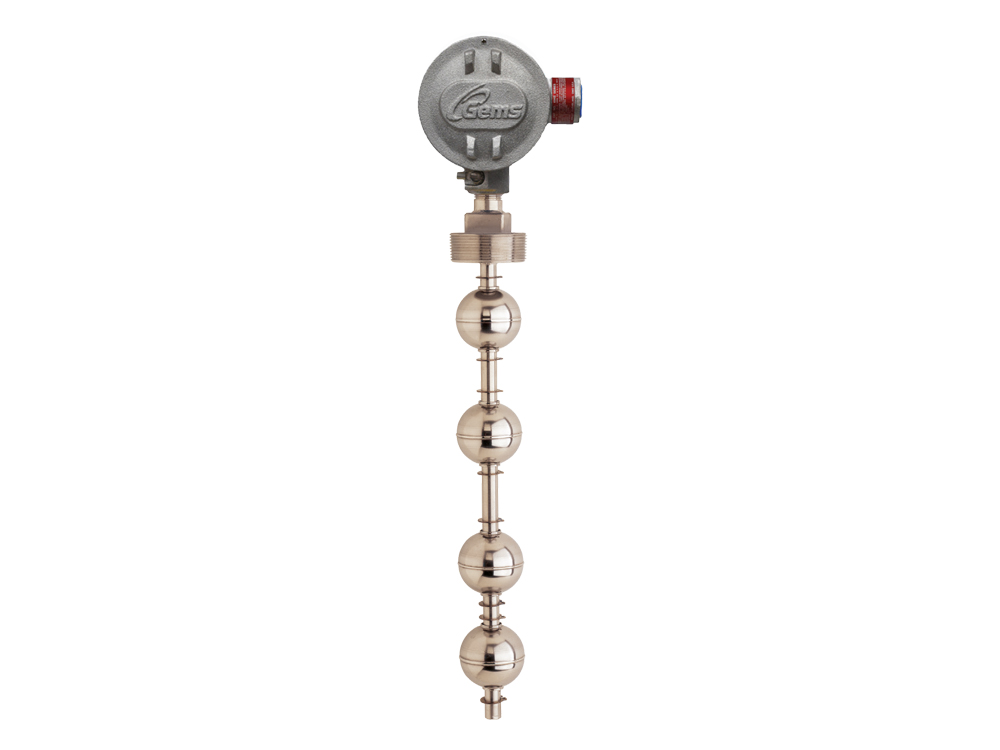

Image is of similar product

PRODUCT DESCRIPTION:

LS-800 Series Multi-Point Level Switch is capable of supporting larger, more buoyant floats, and is physically stronger than other metallic models for better reliability in contaminated or turbulent media. LS-800 offers SPST or SPDT switches, and a choice of mountings, floats and materials that can be configured for a wide range of applications in water, oils, chemicals and corrosive liquids.

LEAD TIME:

5 - 15 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Stainless Steel or Brass Mountings
  • 1 to 6 Actuation Levels
  • Lengths to Over 11 Feet (3.35 m)
  • U.L. Recognized; CSA Listed Versions Available
Minimum Temperature
-30°F
Maximum Temperature
300°F
Minimum Pressure
0 psi
Maximum Pressure
750 psi
Minimum Specific Gravity
0.55
Maximum Specific Gravity
1.8
Minimum Indication
1.625"
Maximum Indication
137.5"

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, LS-800

Format .pdf
Size 594 KB

LS-800 Product Guide

Format .pdf
Size 299 KB

Gems Sensors Catalog, LS-800

Format .pdf
Size 904 KB
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Beverage Processing
  • Food & Beverage - Brewery
  • Food & Beverage - Brewing Equipment
  • Food & Beverage - Food Processing
  • Food & Beverage - Other
  • Food & Beverage - Systems Integrator- OEM- both
  • General Industry
  • General Industry - Chemical Metering/Injection
  • General Industry - Cleaning Equipment
  • General Industry - Elevators
  • General Industry - Environmental
  • General Industry - Fire Suppression
  • General Industry - Hydraulics
  • General Industry - Industrial Ovens & Furnaces
  • General Industry - Machine Tool
  • General Industry - Machinery
  • General Industry - Maintenance Equipment
  • General Industry - Other
  • General Industry - Plastics & Packaging
  • General Industry - Service Cart
  • General Industry - Skid Manufacturer
  • General Industry - Tanks
  • General Industry - Tanks - Specialty Chem
  • HVAC/R - Boilers
  • HVAC/R - Chillers
  • HVAC/R - Cooling Towers
  • HVAC/R - Evaporators
  • HVAC/R - General HVAC
  • HVAC/R - Heating/Condensate Systems
  • HVAC/R - Other
  • HVAC/R Equipment
  • Marine - Commercial - Aftermarket
  • Marine - Commercial - Container Ships
  • Marine - Commercial - Cruise Ships
  • Marine - Commercial - Other
  • Marine - Commercial - Pleasure Craft
  • Marine - Commercial - Repair Yard
  • Marine - Commercial - Ship Owner
  • Marine - Commercial - Ship Systems
  • Marine - Commercial - Shipbuilder
  • Marine - Commercial - Workboats
  • Marine - Commercial - Yachts
  • Marine - Govt & Military - Homeland Security
  • Marine - Govt & Military - Marine
  • Marine - Govt & Military - Marine - Other
  • Marine - Govt & Military - Military
  • Marine - Govt & Military - US Government
  • Marine Vessels
  • Oil & Gas - Drilling Equipment
  • Oil & Gas - Offshore Platforms
  • Oil & Gas - Oil Water Separators
  • Oil & Gas - Other
  • Oil & Gas - Storage Tanks
  • Oil & Gas Equipment
  • Power Gen Equipment
  • Power Generation - Distributed Generation
  • Power Generation - Fuel Cell
  • Power Generation - Generators
  • Power Generation - Green Energy
  • Power Generation - Other
  • Power Generation - Power Generating Facilities
  • Power Generation - Power Transmission Companies
  • Process Applications
  • Process Industry - Other
  • Process Industry - Process Tanks
  • Process Industry - Pulp & Paper
  • Process Industry - Textiles
  • Process Tanks
  • Storage Tanks
  • Waster Water Applications
  • Water & Waste Water - Flood Level Monitoring
  • Water & Waste Water - Groundwater Monitoring
  • Water & Waste Water - Other
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
