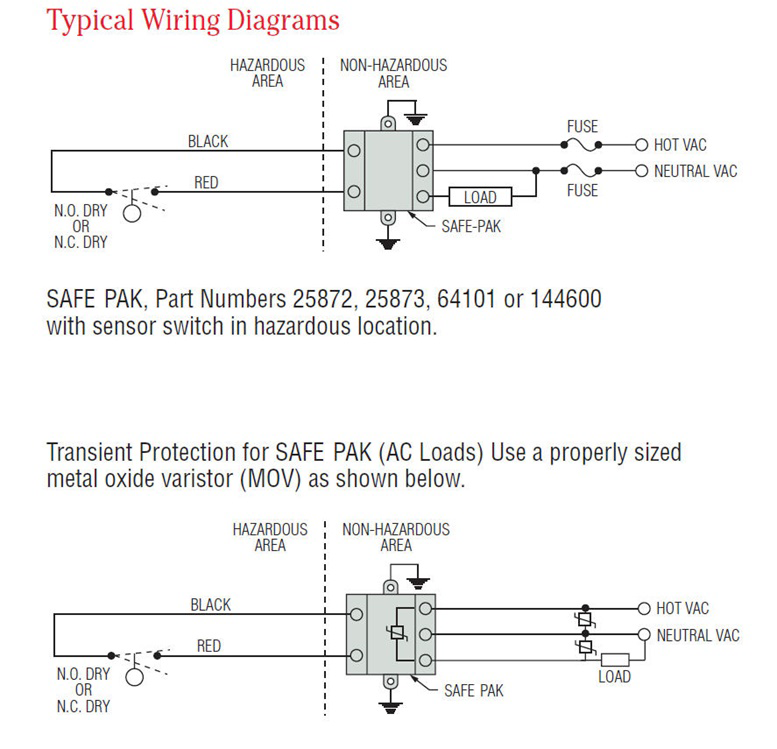

Wiring Diagrams

The Low Sensitivity Electronic SAFE-PAK ® eliminate the need for explosion proof enclosures. No purging is required. Sensors closures up to 1000 ohms resistance control resitive loads to 5A at 120 VAC. 120 VAC, N.O. model.Loads to 5A at 120...

Programmable Electronic SAFE-PAK ® Relay are designed for use with switches or sensors monitoring flow, pressure, level, etc. They render non-voltage-producing sensors intrinsically safe for operation in potentially hazardous areas. Operations...
