Please note: The product image may depict a similar model from the same series.

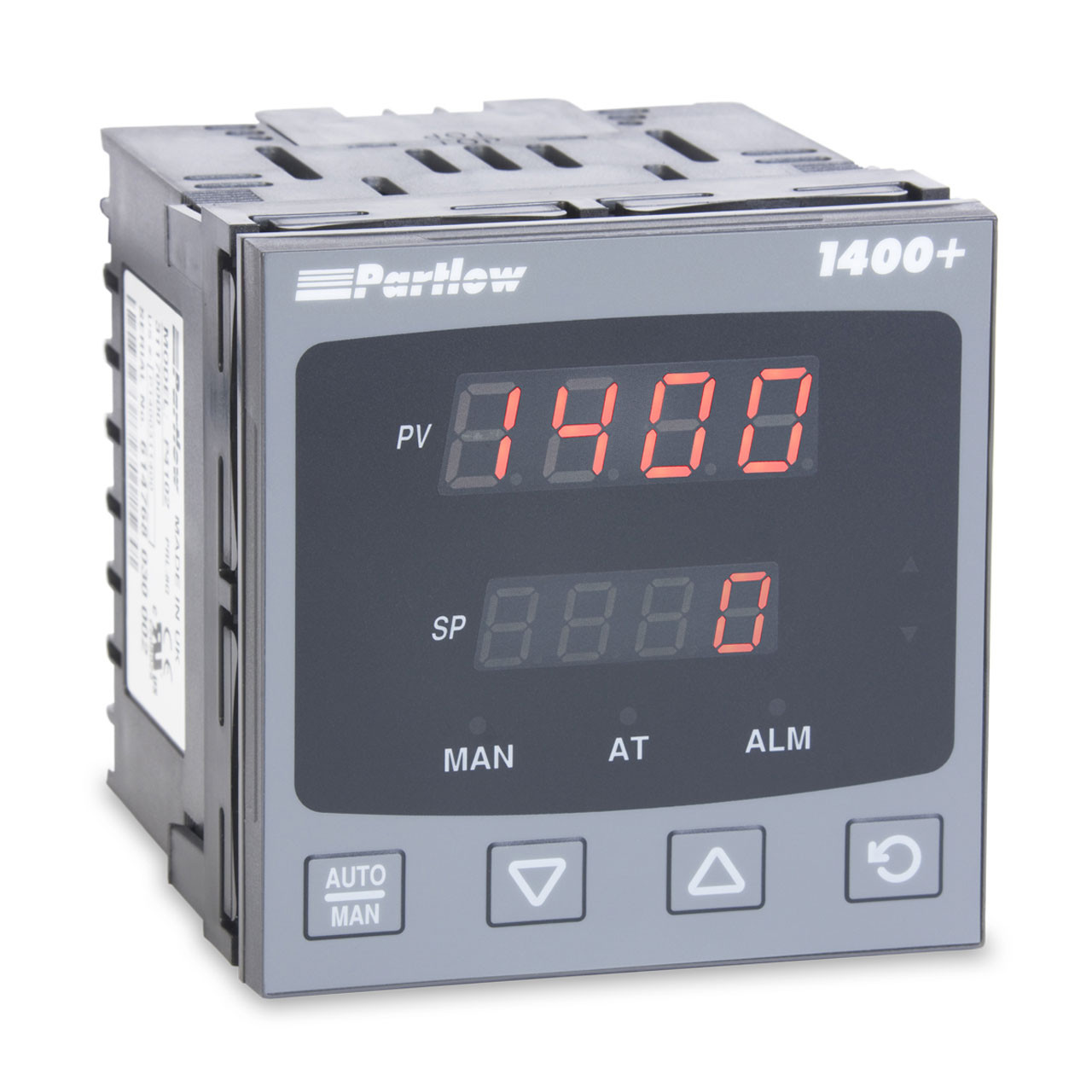

Plus Series 1400+ Temperature Controller
Dual setpoints with optional remote selection
Plug‑in, user‑selectable output modules for application‑specific functionality
Expanded user‑selectable operator modes
Customizable and easy‑to‑use HMI interface
Process and loop alarms with adjustable hysteresis
Optional analog remote setpoint input
Optional 10 V SSR driver
Jumperless input configuration with auto‑hardware recognition
Faster communication speeds with enhanced security options
Improved Windows® PC configuration software
Backward‑compatible panel cutout, housing, and terminal wiring
The Partlow 1400+ is part of the advanced Plus Series of temperature controllers, delivering improved flexibility, ease of use, and performance for demanding industrial and process control applications. Evolved from the West N4100, the 1400+ incorporates enhanced, user‑friendly features including remote setpoint inputs, digital inputs, plug‑in output modules, and a customizable operator/HMI menu. Jumperless configuration, auto‑hardware recognition, and an integrated 24 VDC transmitter power supply help reduce setup time by up to 50%, lower inventory requirements, and virtually eliminate operator errors. The Partlow 1400+ is built to surpass competitive controllers in usability, delivery speed, and overall value.
