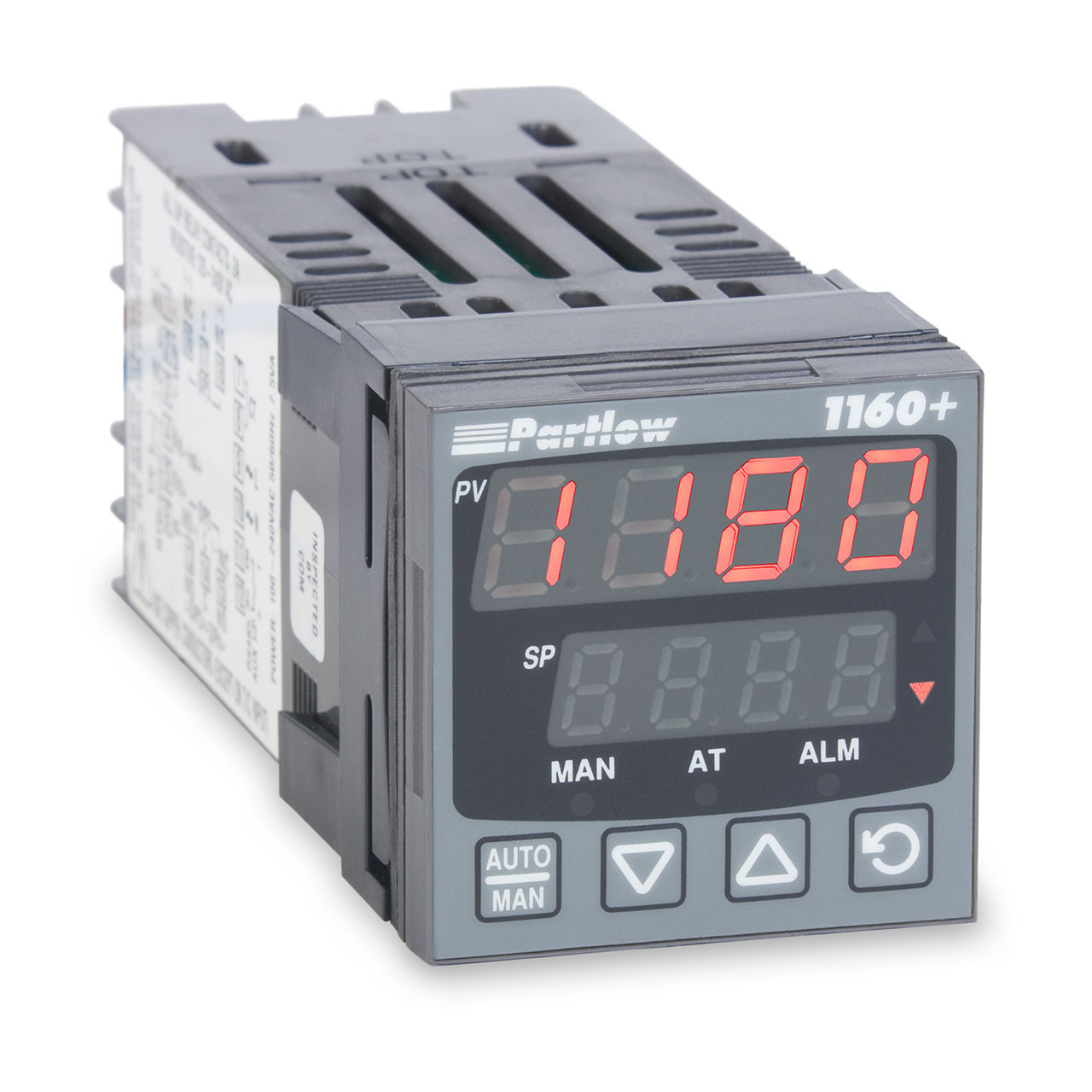

Please note: The product image may depict a similar model from the same series.
P Series 1161+ Limit Controller
- 5A latching limit relay standard
- Easy‑to‑use HMI with customizable operator menu
- PC‑based configuration capability
- Auto‑hardware detection and jumperless configuration
- Modbus communications
- Process alarms for enhanced system protection
- Optional digital input and remote reset
- Optional 10 V SSR driver output
- FM approved
- Backward‑compatible panel cutout, housing, and terminal wiring
The 1161+ Limit Controller is part of the P Series family and provides dependable fail‑safe limit protection for industrial and process control systems. It features a latched relay output that activates when the process value exceeds or falls below a predefined limit, safely shutting down the process until the controller is reset. Clear LED status indicators show when a limit has been reached and when the relay remains latched. With a full range of universal sensor input options, the 1161+ functions as a reliable system “watchdog” for many applications.
