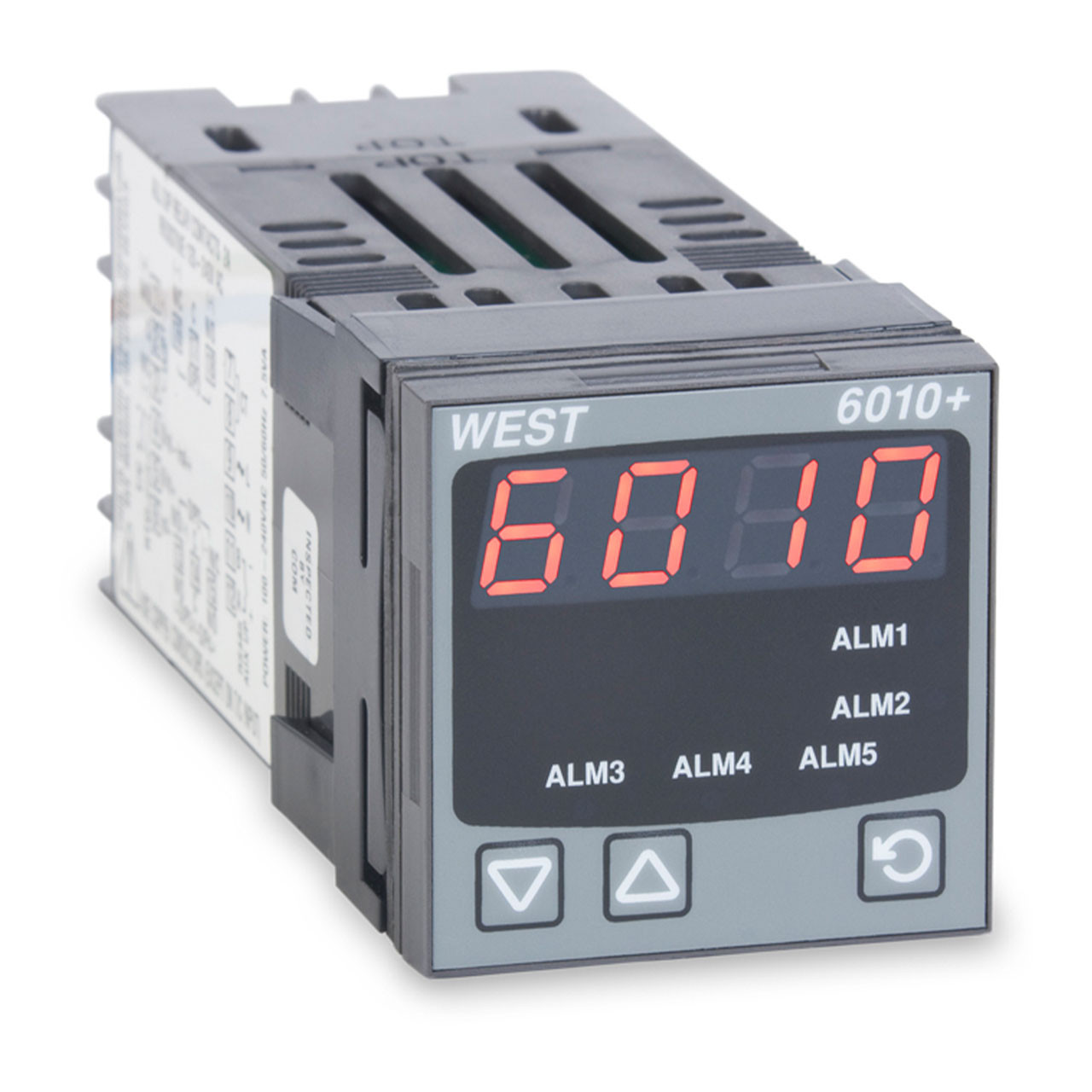

Please note: The product image may depict a similar model from the same series.
6010+ Digital Panel Process Indicator
Single‑line 4‑digit LED display (fixed red or green)
Up to 4 outputs via plug‑in option boards
Plug‑in output modules for SSR driver, triac, relay, and linear outputs
Self‑recognition of option boards for simple, error‑free setup
Alarm relays selectable as latching or non‑latching
Jumperless configuration
Modbus and ASCII communications
10 V SSR driver output (drives up to 3 typical SSR/SCR inputs)
Multi‑point scaling and tare functions standard
Easy‑to‑use PC configurator with guided setup wizard
The 6010+ Digital Panel Process Indicator features a high‑contrast, high‑visibility 4‑digit display designed for clear monitoring in a wide range of temperature and process indication applications. Built for ease of use, the 6010+ offers jumperless configuration, plug‑in output modules, and an intuitive PC‑based configurator for fast, error‑free setup. Field‑changeable modules support PV retransmission, transmitter power supply, and up to four alarm relays, making the indicator highly adaptable to changing application requirements.
