Check out our new Valve p/n Structure

We are in the process of updating our Valve product line to an easier smart p/n configuration setup. Previously, standard options were left blank, making it more difficult to understand how the valve is constructed. Now every option must be selected making the configuration simple to understand. In addition, no more rearranging the options in alphabetical order!

See the below example of an old A Series p/n compared to the new structure:

        Old Structure: A2011-C204

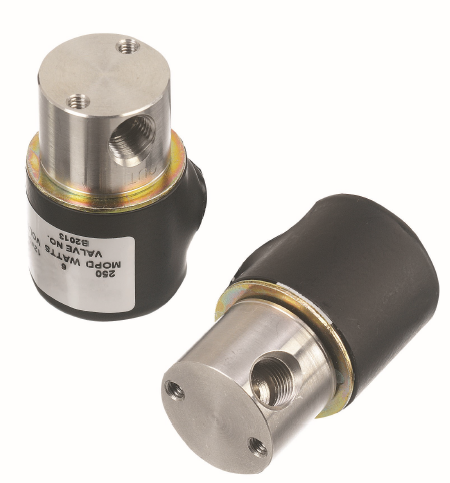

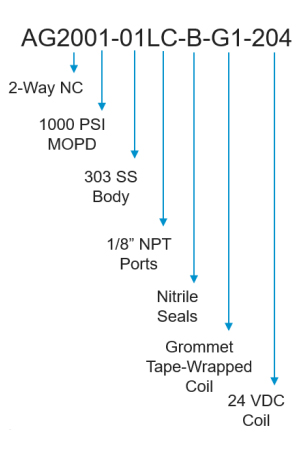

        New Structure: AG2001-01LC-B-G1-204

        Both have the following specs: 2-Way NC, 1000 psi MOPD, 303 SS Body, 1/8” NPT Ports,
        Nitrile Seals, Grommet Housing, Class B Tape Wrapped Coil with 18” lead wires, 24 VDC Coil

Miniature Valves (AG, BG, DG)

A Series ---> AG Series
              Example p/n: AG2001-01LC-B-G1-204
              Available Options: 2-Way NC (20), 3-Way NC (31), 3-Way NO (32), 3-Way Multipurpose
              (33), 3-Way Directional Control (34)
              MOPD: Same amount as A Series, but select MOPD, not Orifice
              Body Material: 303 (01), Brass (03), 316 (05)
              Body Ports: 1/8” NPT (LC), Manifold Mount (MM) 1/4 - 28”
              Seal Material: Nitrile (B), EPR (E), Viton (V). No longer select plunger seal and o-ring, just one selection.
              Cannot mix  different seals anymore.
              Coil: Grommet only, Conduit not available. Class B Tape Wrapped (G1) or Epoxy (G5)
              Voltage: 12 VDC (203), 24 VDC (204), 120 VAC 60 Hz (111)

B Series ---> BG Series
              Example p/n: BG2005-01LB-E-G5-203
              Available Options: 2-Way NC (20), 3-Way NC (31), 3-Way NO (32), 3-Way Multipurpose
              (33), 3-Way Directional Control (34)
              MOPD: Same amount as B Series, but select MOPD, not Orifice
              Body Material: 303 (01), Brass (03)
              Body Ports: 1/8” NPT (LC), ¼” NPT (LB), Manifold Mount (MM) 5/16 - 24
              Seal Material: Nitrile (B), EPR (E), Viton (V). No longer select plunger seal and o-ring, just one selection.
              Cannot mix different seals anymore.
              Coil: Grommet only, no longer conduit available. Class B Tape Wrapped (G1) or Epoxy (G5)
              Voltage: 12 VDC (203), 24 VDC (204)

C Series ---> Obsolete ---> BG Series
              C Series will be obsolete since almost all the features are available in our BG Series now.

D Series ---> DG Series
              Example p/n: DG2002-01LD-V-G5-203
              Available Options: 2-Way NC (20), 3-Way NC (31), 3-Way NO (32), 3-Way Multipurpose
              (33), 3-Way Directional Control (34)
              MOPD: Same amount as D Series, but select MOPD, not Orifice
              Body Material: 303 (01)
              Body Ports: 1/4” NPT (LB), 3/8” NPT (LD) Manifold Mount (MM) ½ - 20
              Seal Material: Nitrile (B), Viton (V). No longer select plunger seal and o-ring, just one selection.
              Cannot mix different seals anymore.
              Coil: Grommet Class B Tape Wrapped (G1), Grommet Class B Epoxy (G5), Spade Terminals Epoxy Class B (S1)
              Voltage: 12 VDC (203), 24 VDC (204)

Learn more about our Miniature Solenoid Valves | Gems Sensors

Sub-Miniature Valves (EG/EH, GG/GH, MA/MB/MC)

E/EH Series ---> EG/EH Series
              Example p/n: EG2012-06BD-V-G1-203
              Available Options: 2-Way NC (20), 3-Way NC (31), 3-Way NO (32), 3-Way Multipurpose
              (33), 3-Way Directional Control (34)
              MOPD: Same amount as E/EH Series, but select MOPD, not Orifice
              Body Material: Nickel Plated Brass (06)
              Body Ports: #10-32 (BD), Manifold Mount (MM)
              Seal Material: Nitrile (B), Viton (V). No longer select plunger seal and o-ring, just
              one selection. Cannot mix different seals anymore.
              Coil: Grommet only, Class B Tape Wrapped (G1)
              Voltage: 12 VDC (203), 24 VDC (204)

G/GH Series ---> GG/GH Series
              Example p/n: GH2009-01BM-B-G1-204
              Available Options: 2-Way NC (20), 3-Way NC (31), 3-Way NO (32), 3-Way Multipurpose
              (33), 3-Way Directional Control (34)
              MOPD: Same amount as G/GH Series, but select MOPD, not Orifice
              Body Material: 303 (01)
              Body Ports: #10-32 (BD), M5x0.8 (BM), Manifold Mount (MM)
              Seal Material: Nitrile (B), Viton (V). No longer select plunger seal and o-ring, just one selection.
              Cannot mix different seals anymore.
              Coil: Grommet only, Class B Tape Wrapped (G1), Epoxy Class B (G5)
              Voltage: 12 VDC (203), 24 VDC (204)

MA/MB/MC Series ---> MA/MB/MH Series
              Example p/n: MH2022-038B-V-P1-201
              Available Options: 2-Way NC (20)
              MOPD: Same amount as MA/MB/MC Series, but select MOPD, not Orifice
              Body Material: Brass (03), Aluminum (18)
              Body Ports: Face Mount (FM), 5/64” or 3/32” Barb (6B), 1/8” Barb (8B), Manifold Mount
              #10-32 (MM)
              Seal Material: Nitrile (B), Viton (V), EPR (E). No longer select plunger seal and o-ring, just one selection.
              Cannot mix different seals anymore.
              Coil: PC Board (P1), Lead Wires (Y1)
              Voltage: 5 VDC (201), 12 VDC (203), 24 VDC (204)

Learn more about our Subminiature Solenoid Valves | Gems Sensors

Isolation Valves

AS/BS Series ---> AS Series (BS Series will be non-configurable, require form fill for pricing)
              Example p/n: AS2017-01LC-E-G1-203
              Available Options: 2-Way NC (20)
              MOPD: Same amount as AS Series, but select MOPD, not Orifice
              Body Material: 303 (01), Brass (03), 316 (05)
              Body Ports: 1/8” NPT (LC), Manifold Mount (MM) 1/4 - 28
              Seal Material: Viton (V), EPR (E).
              Coil: Coil: Grommet only, conduit not available. Class B Tape Wrapped (G1), Class B Epoxy (G5)
              Voltage: 12 VDC (203), 24 VDC (204)

Learn more about our Isolation Solenoid Valves | Gems Sensors

Specialty Valves (Non-Configurable Valve Series)

The following valve series will no longer be configurable online and will require a form fill to receive pricing.

B-Cryo Series, D-Cryo Series, BL Latching Series, BS Isolation Series
