Monitoring Cooling Loops in Advanced Semiconductor Facilities
Why Cooling Loop Monitoring Matters in Semiconductor Manufacturing
Advanced semiconductor facilities depend on tightly controlled thermal conditions. Process tools, power supplies, RF generators, vacuum pumps, chillers, heat exchangers, and facility cooling systems all rely on consistent coolant flow to maintain equipment performance and avoid unplanned interruptions.
Cooling water and glycol loops are sometimes viewed as supporting utility systems, but they can directly impact uptime. A restricted filter, a pump issue, a low reservoir level, heat exchanger fouling, or a loss of flow can reduce cooling efficiency and create conditions that lead to tool alarms, shutdowns, or maintenance events.
For facilities teams, OEM equipment designers, and maintenance engineers, monitoring cooling loop performance improves visibility into system health and helps identify issues before they affect production.
Key Monitoring Points in Semiconductor Cooling Systems

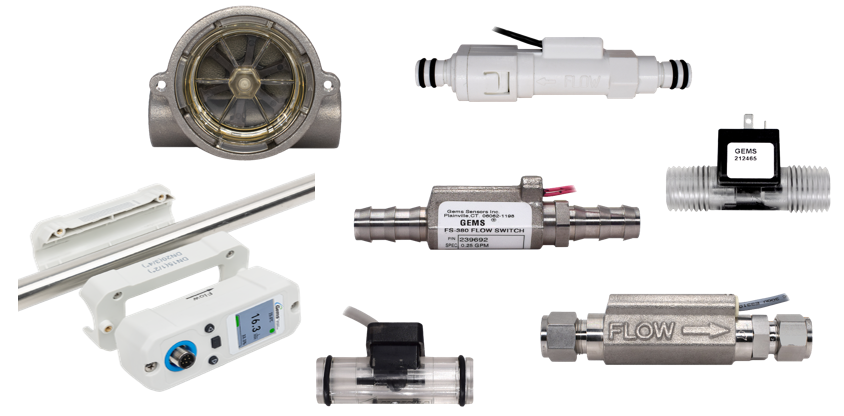

Flow Verification
Reliable coolant flow is one of the most important indicators of cooling loop performance. Whether the system is supporting a process tool, heat exchanger, chiller loop, or cooling distribution skid, operators need confidence that coolant is moving at the required rate.
Flow switches provide dependable flow/no-flow indication for equipment protection and interlock functions. Flow sensors provide continuous measurement for applications that require trend data, tighter monitoring, or lower-flow visibility.
Typical applications include:
- Cooling water distribution systems
- Glycol-based cooling loops
- Chiller supply and return lines
- Heat exchanger circuits
- Equipment protection interlocks
- Low-flow cooling circuits for sensitive components
Recommended Solutions
These solutions help verify coolant delivery, protect equipment from loss-of-flow conditions, and support more reliable thermal management across semiconductor facilities and equipment platforms.

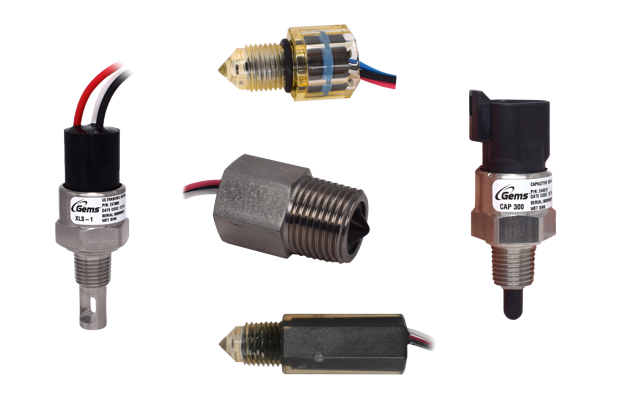

Tank Level Monitoring
Cooling systems often include reservoirs, expansion tanks, glycol storage tanks, and makeup water tanks. Maintaining proper fluid level is important for preventing pump cavitation, protecting cooling capacity, and avoiding unexpected system interruptions.
Level sensors provide early indication of low or high fluid conditions so facilities teams can respond before a cooling issue becomes a production issue.
Recommended Solutions
These level sensing options support a variety of cooling system designs, including water, glycol, and other compatible process-support fluids used in semiconductor facility infrastructure.

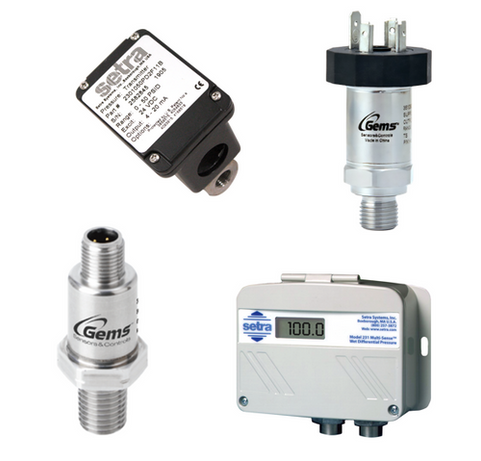

Pressure Monitoring
Pressure monitoring provides important insight into the health of cooling loops and heat rejection systems. Measuring pressure across filters, pumps, and heat exchangers helps identify restrictions, fouling, or performance changes before they result in system failure.
For example, rising differential pressure across a filter can indicate contamination buildup and help maintenance teams determine when service is required. Pressure changes across pumps or heat exchangers can also indicate developing issues, including reduced flow, blockage, or declining heat-transfer performance.
Recommended Solutions
By monitoring pressure at critical points in the loop, semiconductor facilities can move from reactive troubleshooting toward more proactive maintenance and system optimization.
Supporting Reliability Across the Facility
Cooling loops play a critical role in maintaining fab uptime, even when they operate outside the primary process chamber. From facility water systems to tool-level cooling circuits, reliable monitoring helps engineering and maintenance teams detect issues earlier and make better maintenance decisions.
By combining flow verification, tank level monitoring, and pressure measurement, semiconductor facilities can:
- Detect cooling interruptions before equipment damage occurs
- Improve preventive maintenance planning
- Reduce unplanned downtime
- Monitor filter, pump, and heat exchanger performance
- Protect critical equipment from low-flow or low-level conditions
- Support consistent thermal performance across facility and tool systems
Whether designing a new cooling skid, upgrading facility infrastructure, or improving monitoring on existing heat rejection systems, selecting the right sensing technology can improve reliability and reduce operational risk.
