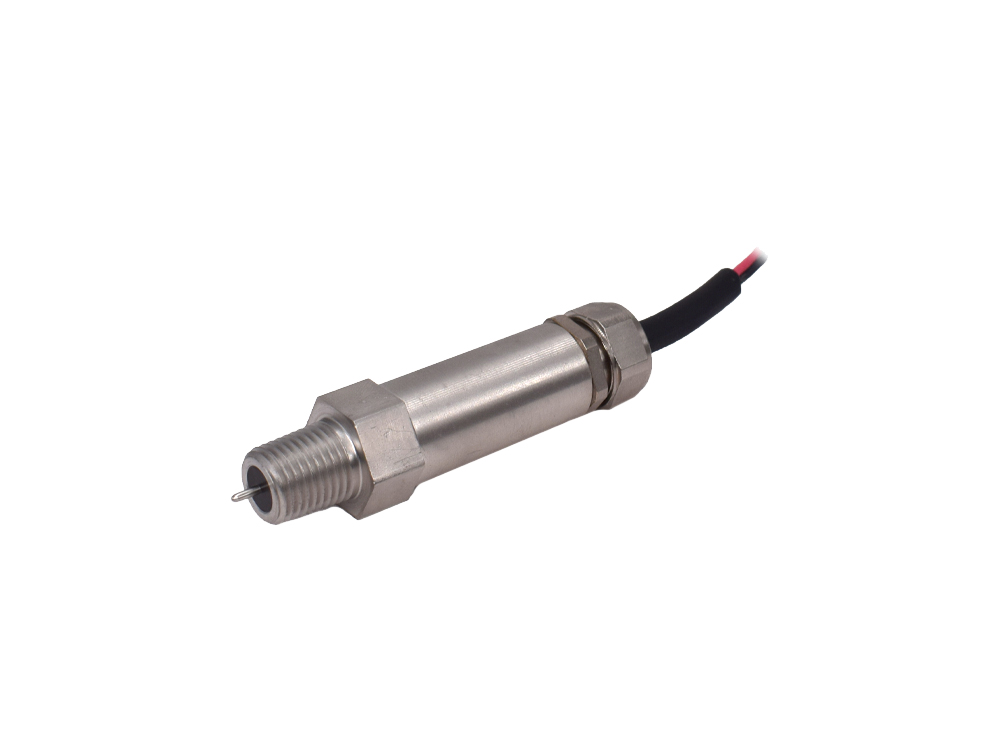

WIF-1250 Water in Fuel Sensor

Part Number: 238737
Buy Now REQUEST A QUOTE
WIF-1250_238737
Image is of similar product

PRODUCT DESCRIPTION:

WIF-1250 Water in Fuel Sensor is a no-moving-parts solution specifically designed to detect the presence of water in fuel. The sensor is an ideal solution for OEM's of off-highway vehicles, locomotive and generator sets. It is also ideal for use with fuel filters. The sensor is easily mounted in any position and is compatible with temperatures up to 257°F (125°C).
  • Designed for OHV and Generator Set applications
  • Compact size - easy to install
  • Operates in plastic or metal tanks
  • Reliable and affordable OEM solution
  • Solid-State – no moving parts

FEATURED DOWNLOADS:

Catalog Page

Features

  • Designed for OHV and Generator Set applications
  • Compact size - easy to install
  • Operates in plastic or metal tanks
  • Reliable and affordable OEM solution
  • Solid-State – no moving parts
SKU
238737
Model
WIF-1250
Sensor Type
Conductivity
Primary Material Of Construction
Nickel Plated Steel
Wetted Materials
Nickel Plated Steel, Fused Glass
Stem Material
N/A
Float Material
N/A
Float Diameter
N/A
Actuation Level
N/A
Min. Liquid SG
N/A
Maximum Pressure
750 psi
Minimum Temperature
-40°F
Maximum Temperature
257°F
Mounting Size
1/4" NPT Male
Mounting Style
Vertical or Horizontal
Electrical Termination
15" Long, 20 AWG, (3) Conductor Cable
Switch Type
TTL/CMOS Compatible
Switch Operation
Normally Open
Input
8-32 VDC, Current Consumption less than 20 mA
Output
Open Collector, Sinking Outtput
Instructions_241882

Gems Sensors Instructions, WIF-1250

Format .pdf
Size 57 KB
Download
Catalog-A_WIF1250_thumb

Gems Sensors Catalog, WIF-1250

Format .pdf
Size 288 KB
Download
