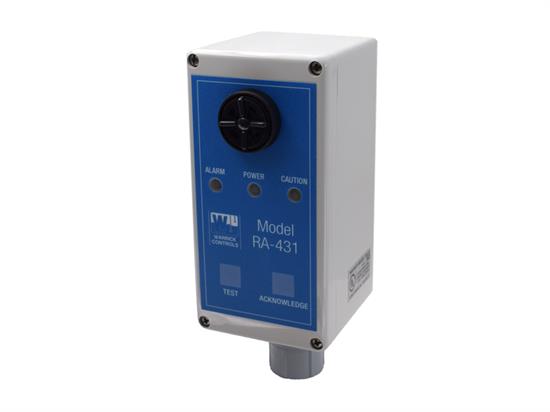

Warrick RA-431 Alarm Panel
Warrick RA-431 Alarm Panels can be used with conductivity probes, has a small footprint design and a size 6 pan head screw connections.
Warrick Conductivity Controls
Warrick TA-730 Alarm Panel
Part Number: TA732B0
Image is of similar product
PRODUCT DESCRIPTION:
Warrick TA-730 Alarm Panels are intrinsically safe monitoring panels that solve simple tank monitoring needs. Packaged in secure 3R rated electrical enclosures, they are designed to interface with a variety of leak detection or overfill sensors. Applications
include refill alarm, overfill alarm, high level alarm and leak detection.
LEAD TIME:
10
days
Lead-times and expedites
Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.
FEATURED DOWNLOADS:
Features
- Intrinsically Safe Approved
- Auxiliary Contact for Remote Annunciation or Cutoff
- One or Two Channels
- Two Conduit Connection Hubs
Sku
TA732B0
Model
TA73
Supply Voltage
120 VAC
Indicators
Red, Green, Yellow Solid State LED's
Audible Alarm
Adjustable from 77 to 97 dB at 2 feet
Enclosure
NEMA 4
Terminal Style
Size 6 Pan Head Screws w/ Captive Wire Clampsing Plate
Contact Design
N/A
Contact Rating
N/A
AuxillaryContacts
1
Interface Contacts
Normally Closed Dry
Secondary Voltage
12 VAC
Number Of Channels
2
Maximum Temperature
150°F
Protection
Intrinsically Safe
Approvals
UL 913 Intrinsically Safe
Weight
2.3
- General Industry
- General Industry - Alarm Panels
- General Industry - Environmental
- General Industry - Tanks
- HVAC/R - General HVAC
- HVAC/R - Other
- HVAC/R Equipment
- Waster Water Applications
- Water & Waste Water - Industrial Water Treatment
- Water & Waste Water - Other
Should the sensitivity of my control be higher or lower in resistance than my liquid?
The sensitivity of the control should be greater than the resistance of the liquid.
