TH-800 Single-Point Level Switch

Part Number: 57144

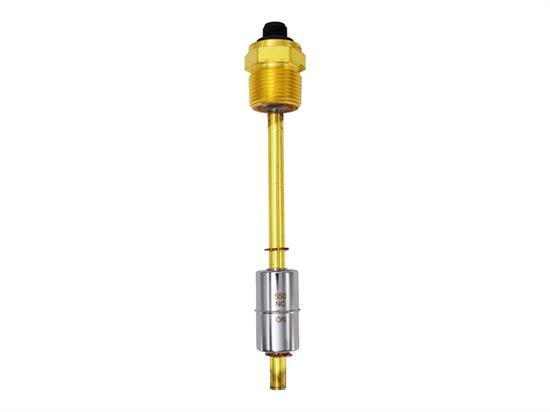

Image is of similar product

PRODUCT DESCRIPTION:

TH-800 Series Single-Point Level Switches incorporate level monitoring and a temperature switch in a single unit. A single-setting temperature sensor is in the bottom of the stem. TH-800 are ideal for use in oils and water and are intermediate in size.

LEAD TIME:

In Stock
Lead Time

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Ideal in Oils and Water
  • Level Monitoring and Temperature Switch in a Single Unit
  • Intermediate Size
Sku
57144
Model
TH-800
Sensor Type
Float Type
Primary Material Of Construction
Alloy
Wetted Materials
Brass, Buna N, Berylium Copper
Stem Material
Brass
Float Material
Buna N
Float Diameter
1 1/4"
Actuation Level
1 1/2"
Min. Liquid SG
0.75
Maximum Pressure
150 psi
Minimum Temperature
-40°F
Maximum Temperature
230°F
Mounting Size
1/4" NPT Male
Mounting Style
Vertical
Electrical Termination
24" Long, 18 AWG, Polymeric Leads
Switch Type
SPST (20 VA)
Switch Operation
Normally Open (Reversible)
Input
N/A
Output
N/A
Approvals
UL Recognized, CSA Listed, ROHS

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, Level Switches

Format .pdf
Size 553 KB

Gems Sensors Catalog, Specialty Switches

Format .pdf
Size 4 MB
