Level Sensors & Switches

LS-800PVC Multi-Point Level Switch

Part Number:
LS-800PVC

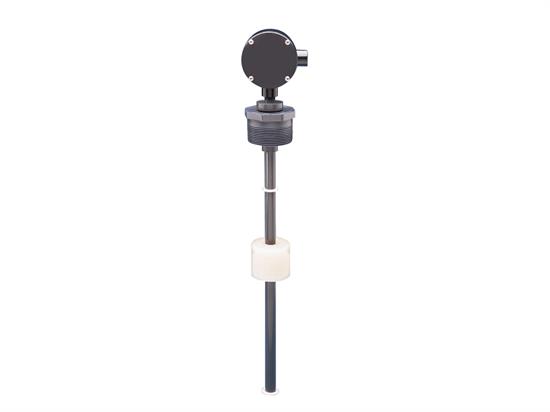

Image is of similar product

PRODUCT DESCRIPTION:

LS-800PVC Series Multi-Point Level Switch is an inexpensive and durable all-PVC level switch for reliable sensing of corrosive liquids. Wetted parts make the LS-800PVC suitable for potable water applications.

LEAD TIME:

5 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • PVC Wetted Parts Available
  • 1 to 7 Actuation Levels
  • Lengths to 60 Inches (1524 mm)
Minimum Temperature
0°F
Maximum Temperature
125°F
Minimum Pressure
0 psi
Maximum Pressure
15 psi
Minimum Specific Gravity
0.8
Maximum Specific Gravity
1.8
Minimum Indication
1.5"
Maximum Indication
58"

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, LS-800

Format .pdf
Size 594 KB

Gems Sensors Catalog, LS-800PVC

Format .pdf
Size 180 KB
  • Alt Energy Equipment
  • General Industry
  • General Industry - Car Wash Equipment
  • General Industry - Chemical Metering/Injection
  • General Industry - Cleaning Equipment
  • General Industry - Environmental
  • General Industry - Other
  • General Industry - Plastics & Packaging
  • General Industry - Tanks
  • General Industry - Tanks - Specialty Chem
  • Process Applications
  • Process Industry - Chemical
  • Process Industry - Other
  • Process Industry - Process Tanks
  • Storage Tanks
  • Waster Water Applications
  • Water & Waste Water - Industrial Water Treatment
  • Water & Waste Water - Other
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
