LS-700 Multi-Point Level Switch

Part Number:
LS-700

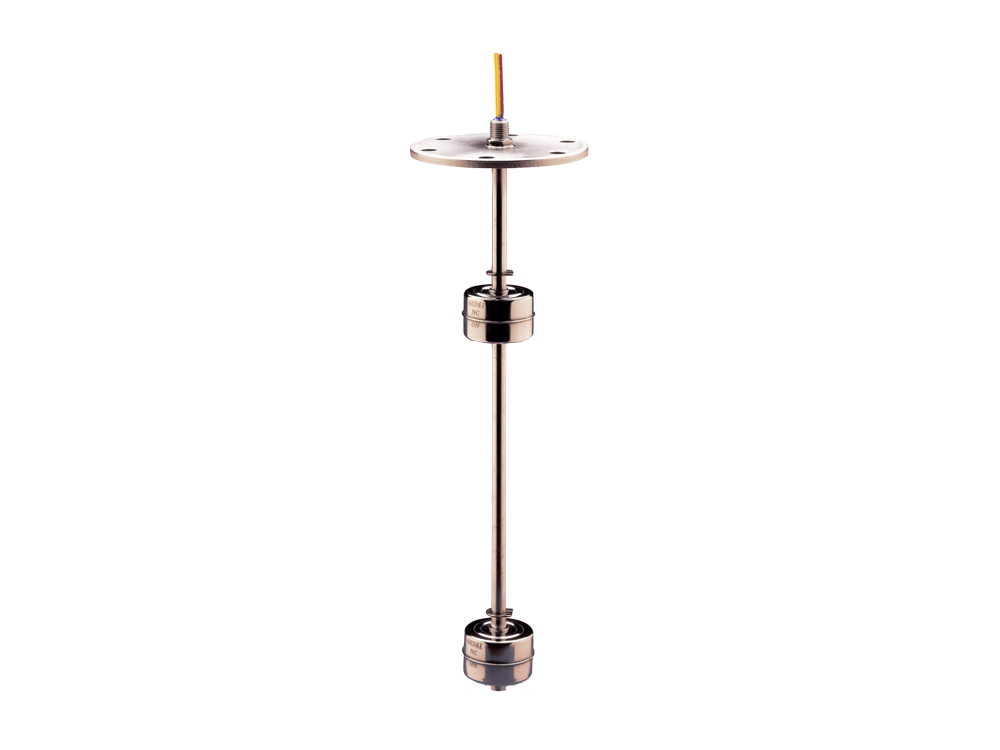

Image is of similar product

PRODUCT DESCRIPTION:

LS-700 Series Multi-Point Level Switch is a compact unit that features the rugged durability of stainless steel or brass construction in a lightweight package. It is ideal for restricted spaces, including tanks less than 4 feet (1.22 m).

LEAD TIME:

5 - 15 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Stainless Steel or Brass Mountings and Stems
  • 1 to 5 Actuation Levels
  • Lengths to 48 Inches (1219 mm)
  • U.L. Recognized; CSA Listed Versions Available
Minimum Temperature
-40°F
Maximum Temperature
300°F
Minimum Pressure
0 psi
Maximum Pressure
1000 psi
Minimum Specific Gravity
0.5
Maximum Specific Gravity
1.8
Minimum Indication
.688"
Maximum Indication
47"

Reed Switch Protection

Format .pdf
Size 56 KB

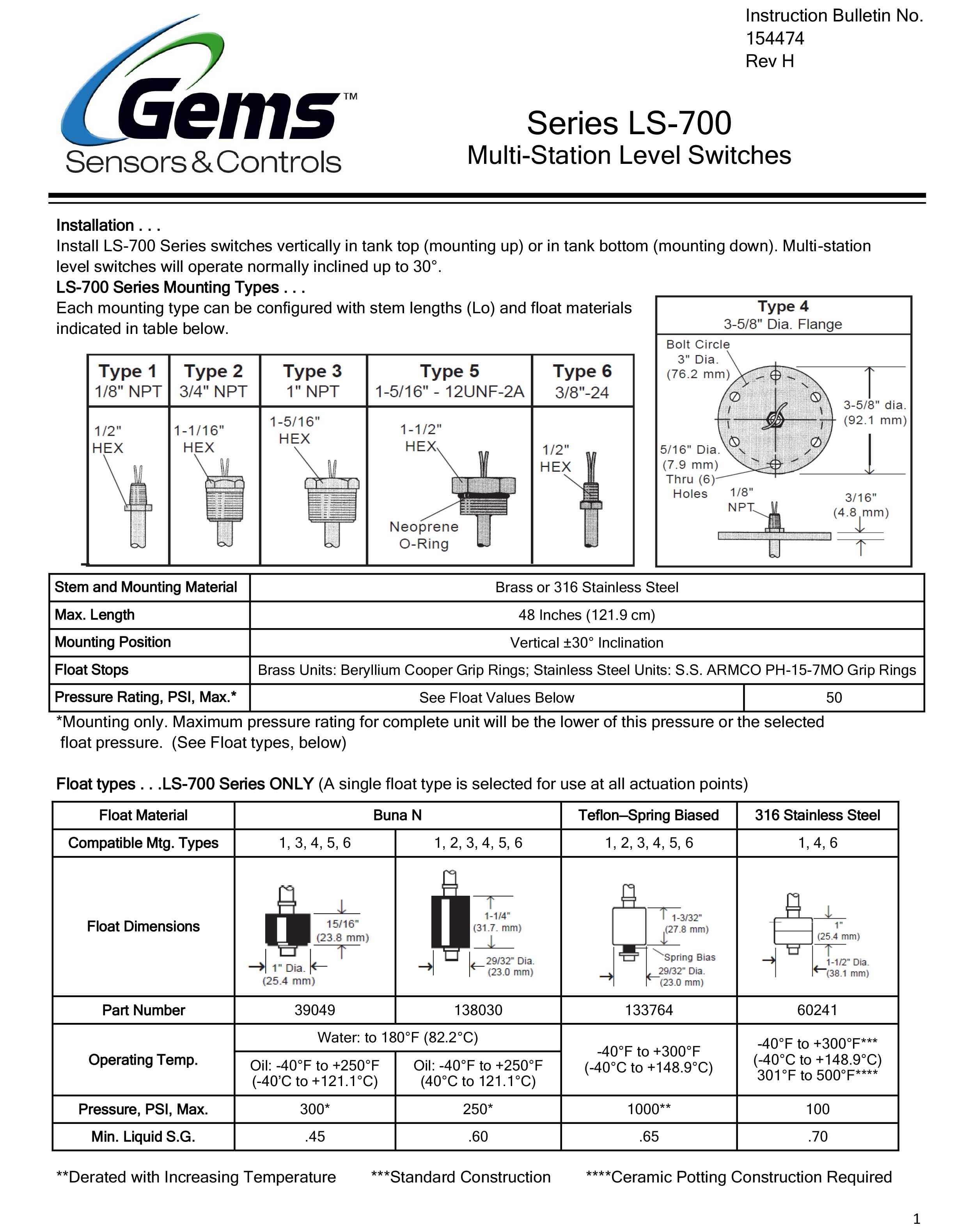

Gems Sensors Instructions, LS-700 and LS-700EP

Format .pdf
Size 660 KB

LS-700 Product Guide

Format .pdf
Size 821 KB

Gems Sensors Catalog, LS-700

Format .pdf
Size 737 KB
