LS-7 Single-Point Type 8 Level Switch

Part Number: 160950

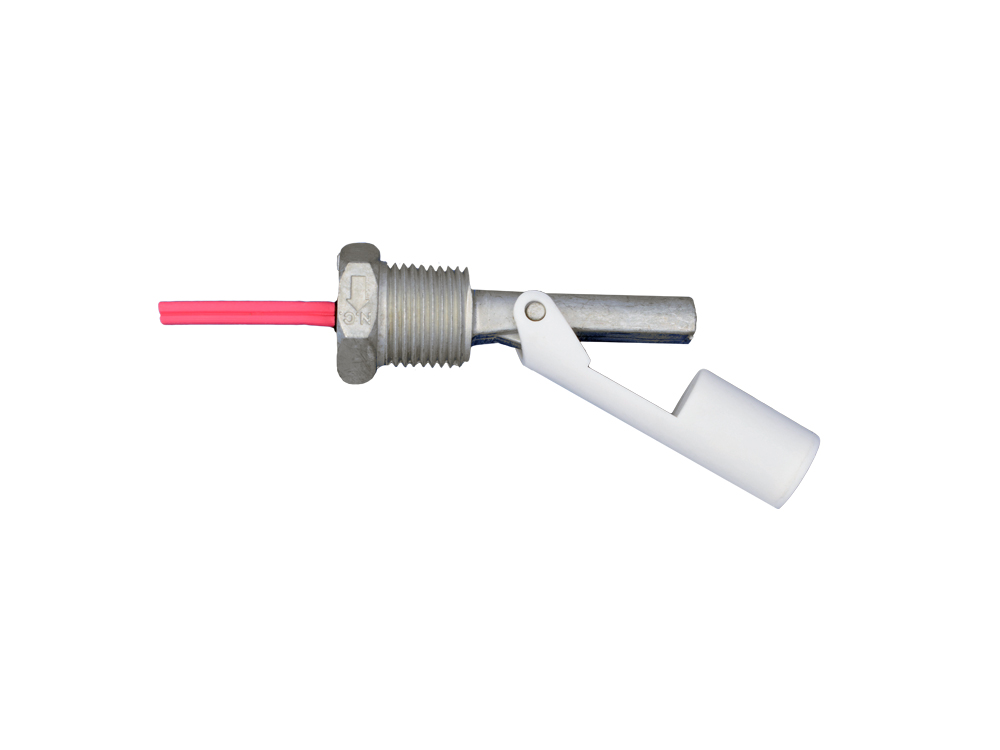

LS-7_Type8_162795
Image is of similar product

PRODUCT DESCRIPTION:

LS-7 Series Single-Point Type 8 Level Switches are compact, durable alloy body switches with polypropylene or nylon floats, ideal for any small tank or vessel destined for a rugged environment.



LEAD TIME:

In Stock
In Stock

In Stock

CE ROHS Gems Compliant CSA

Features

  • Controls Two Independent Loads up to 5 amps Each
Sku
160950
Model
LS-7
Sensor Type
Float Type
Primary Material Of Construction
 Alloy
Wetted Materials
 Zinc Alloy, Nylon
Stem Material
Zinc Alloy
Float Material
Nylon
Float Diameter
11/16"
Min. Liquid SG
0.65
Maximum Pressure
100 psi
Minimum Temperature
-40°F
Maximum Temperature
250°F
Mounting Size
1/2" NPT Male
Mounting Style
Horizontal
Electrical Termination
24" Long, 22 AWG, Teflon Zip Cord
Switch Type
SPST (20 VA)
Switch Operation
Selectable
Approvals
UL Recognized, CSA Listed, CE

Reed Switch Protection

Format .pdf
Size 56 KB

LS-7 Product Guide

Format .pdf
Size 1 MB

Gems Sensors Catalog, LS-7 with 5 Amp Relay

Format .pdf
Size 1 MB
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
