LS-7 Single-Point Type 7 Level Switch

Part Number: 160450

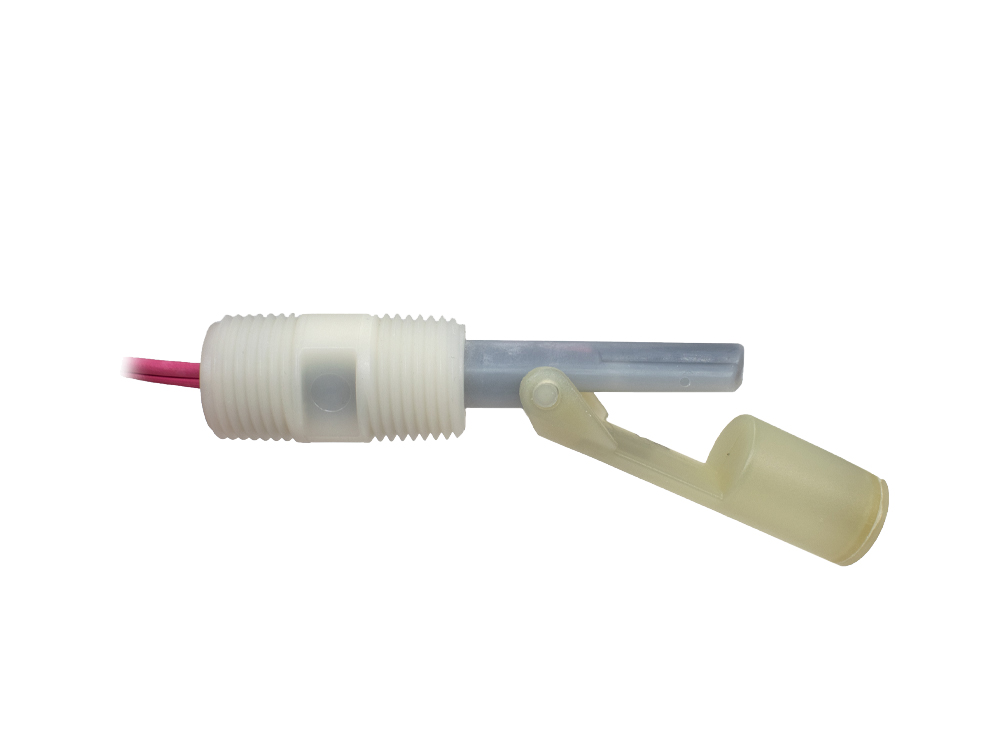

LS-7_Type7_160460
Image is of similar product

PRODUCT DESCRIPTION:

LS-7 Series Single-Point Type 7 Level Switches are ideal for high volume use in small tanks and vessels. Polypropylene or Nylon options are available and a conduit connection. Polypropylene is ideal for potable water and broad chemicals and Nylon is ideal for oils and fuels.

  • Polypropylene
  • Ideal for Potable Water and Broad Chemicals

Features

  • Polypropylene
  • Ideal for Potable Water and Broad Chemicals
SKU
160450
Model
LS-7
Sensor Type
Float Type
Primary Material Of Construction
Plastic
Wetted Materials
Polypropylene
Stem Material
Polypropylene
Float Material
Polypropylene
Float Diameter
11/16"
Actuation Level
N/A
Min. Liquid SG
0.55
Maximum Pressure
100 psi
Minimum Temperature
-40°F
Maximum Temperature
225°F
Mounting Size
1/2" NPT Male
Mounting Style
Horizontal
Electrical Termination
24" Long, 22 AWG, TPE Zip Cord
Switch Type
SPST (20 VA)
Switch Operation
Selectable
Input
N/A
Output
N/A

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, LS-7 Plastic Switches

Format .pdf
Size 59 KB

LS-7 Product Guide

Format .pdf
Size 1 MB

Gems Sensors Catalog, LS-7

Format .pdf
Size 1 MB
  • Agricultural Equipment
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Automated Water Dispense
  • Food & Beverage - Beverage dispensing
  • Food & Beverage - Brewery
  • Food & Beverage - Other
  • Food & Beverage - Ovens
  • Food & Beverage - Washers
  • General Industry
  • General Industry - Alarm Panels
  • General Industry - Car Wash Equipment
  • General Industry - Chemical Metering/Injection
  • General Industry - Compressors
  • General Industry - Environmental
  • General Industry - Fountains
  • General Industry - Hydraulics
  • General Industry - Laser Equipment
  • General Industry - Machinery
  • General Industry - Maintenance Equipment
  • General Industry - Other
  • General Industry - Service Cart
  • General Industry - Skid Manufacturer
  • General Industry - Tanks
  • General Industry - Test Stands/Systems
  • General Industry - Welders
  • HVAC/R - Air Conditioning Systems
  • HVAC/R - Chillers
  • HVAC/R - Cooling
  • HVAC/R - Cooling Towers
  • HVAC/R - Evaporators
  • HVAC/R - General HVAC
  • HVAC/R - Heating/Condensate Systems
  • HVAC/R - Humidifers
  • HVAC/R - Other
  • HVAC/R - Refrigeration
  • HVAC/R - Warmers
  • HVAC/R Equipment
  • Medical - Imaging
  • Medical - Immunochemistry
  • Medical - IVD
  • Medical - Lab
  • Medical - Laboratory & Testing
  • Medical - Life Sciences
  • Medical - Medical Lasers
  • Medical - Other
  • Medical - Radiology
  • Medical - Renal Care / Dialysis
  • Medical - Sterilization
  • Medical Equipment
  • Off Highway Vehicles
  • OHV - Agricultural Equipment
  • OHV - Construction Equipment
  • OHV - Fertilizer
  • OHV - Forestry Equipment
  • OHV - Highway Construction Equipment
  • OHV - Industrial Equipment
  • OHV - Lawn Equipment
  • OHV - Material Handling
  • OHV - Military Vehicles
  • OHV - Mining Equipment
  • OHV - Other
  • OHV - Recreational Vehicles
  • OHV - Refueling Trucks
  • OHV - Specialty Equipment
  • OHV - Street Sweepers
  • Power Gen Equipment
  • Power Generation - AC General
  • Power Generation - Fuel Cell
  • Power Generation - Generators
  • Power Generation - Green Energy
  • Power Generation - Other
  • Power Generation - Turbines
  • Specialty Vehicles
  • Transportation
  • Transportation - Buses
  • Transportation - Commercial On-Road Vehicles
  • Transportation - Fire Trucks
  • Transportation - Fuel - Level Monitoring
  • Transportation - Other
  • Transportation - Rail - Other
  • Transportation - Rail - Passenger
  • Transportation - Specialty Vehicles
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
