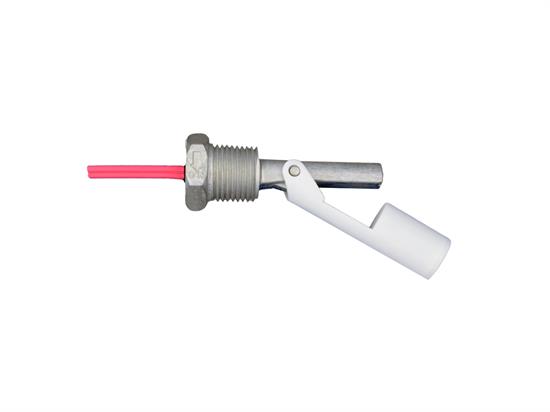

LS-7 Single-Point Type 8 Level Switch
LS-7 Series Single-Point Type 8 Level Switches are compact, durable alloy body switches with polypropylene or nylon floats, ideal for any small tank or vessel destined for a rugged environment.
Level Sensors & Switches

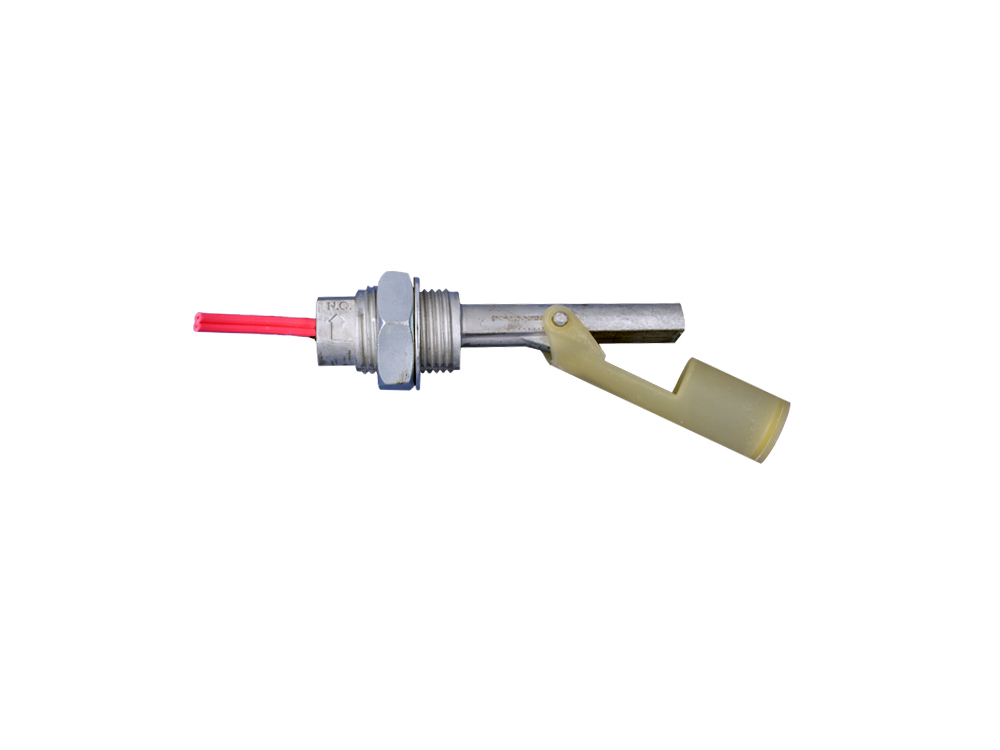

LS-7 Single-Point Type 6 Level Switch
Part Number: 155660
Image is of similar product
PRODUCT DESCRIPTION:
LS-7 Series Single-Point Type 6 Level Switches are compact, durable alloy body switches with polypropylene or nylon floats and SAE mounting ideal for any small tank or vessel destined for a rugged environment.
- External Mounting
- 7/8" - 14UNF Thread
- SAE Mounting
LEAD TIME:
In Stock
Lead-times and expedites
Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.
FEATURED DOWNLOADS:
Features
- External Mounting
- 7/8" - 14UNF Thread
- SAE Mounting
Sku
155660
Model
LS-7
Sensor Type
Float Type
Primary Material Of Construction
Alloy
Wetted Materials
Zinc Alloy, Nylon
Stem Material
Zinc Alloy
Float Material
Nylon
Float Diameter
11/16"
Actuation Level
N/A
Min. Liquid SG
0.65
Maximum Pressure
100 psi
Minimum Temperature
-40°F
Maximum Temperature
250°F
Mounting Size
7/8"-14UNF Male
Mounting Style
Horizontal
Electrical Termination
24" Long, 22 AWG, Teflon Zip Cord
Switch Type
SPST (20 VA)
Switch Operation
Selectable
Input
N/A
Output
N/A
Approvals
CE
Is there a minimum current flow requirement for a standard 20VA reed switch?
Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).
What is the life expectancy of a reed switch?
A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
