Level Sensors & Switches

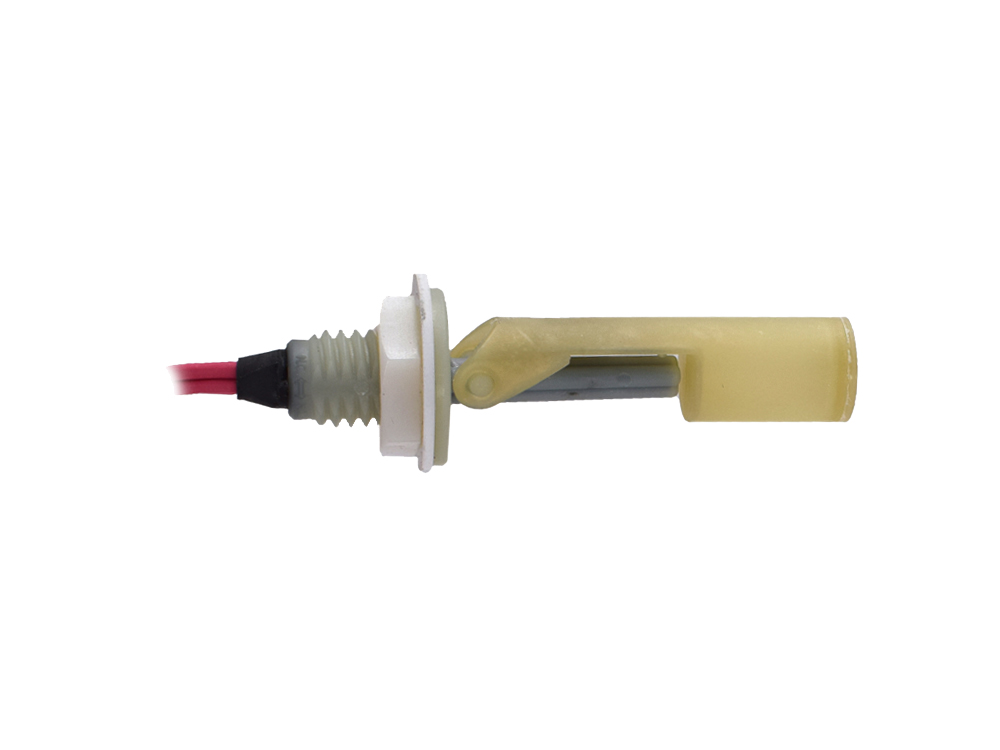

LS-7 Single-Point Type 3 Level Switch

Part Number: 165570

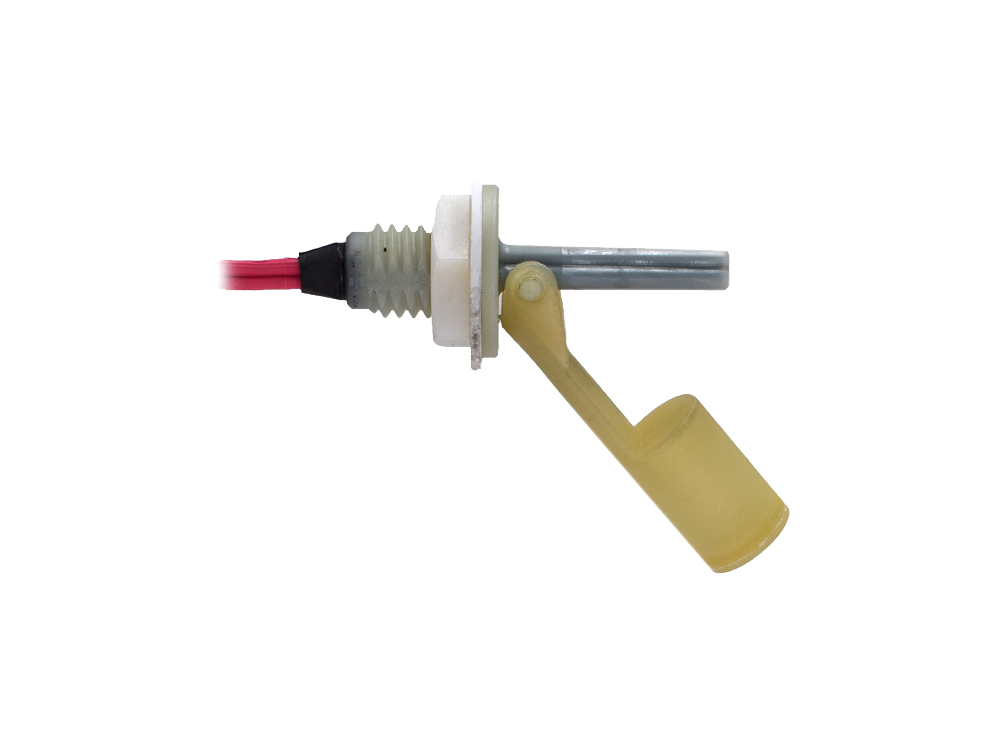

LS-7_Type3_165570_Open
Image is of similar product

PRODUCT DESCRIPTION:

LS-7 Series Single-Point Type 3 Level Switches are ideal for high volume use in small tanks and vessels. Polypropylene, Nylon or Versplast options are available. Polypropylene is ideal for potable water and broad chemicals, Nylon is ideal for oils and fuels and Versaplast is ideal for corrosive fluids.

  • Nylon is Ideal for Oils and Fuels
  • Polypropylene is Ideal for Potable Water and Broad Chemicals
  • Versaplast is ideal for corrosive fluids

Features

  • Nylon is Ideal for Oils and Fuels
  • Polypropylene is Ideal for Potable Water and Broad Chemicals
  • Versaplast is ideal for corrosive fluids
SKU
165570
Model
LS-7
Sensor Type
Float Type
Primary Material Of Construction
Plastic
Wetted Materials
Nylon
Stem Material
Nylon
Float Material
Nylon
Float Diameter
11/16"
Actuation Level
N/A
Min. Liquid SG
0.65
Maximum Pressure
100 psi
Minimum Temperature
-40°F
Maximum Temperature
250°F
Mounting Size
Internal
Mounting Style
Horizontal
Electrical Termination
24" Long, 22 AWG, TPE Zip Cord
Switch Type
SPST (20 VA)
Switch Operation
Selectable
Input
N/A
Output
N/A

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, LS-7 Plastic Switches

Format .pdf
Size 59 KB

LS-7 Product Guide

Format .pdf
Size 1 MB

Gems Sensors Catalog, LS-7

Format .pdf
Size 1 MB
  • Agricultural Equipment
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Automated Water Dispense
  • Food & Beverage - Beverage dispensing
  • Food & Beverage - Brewery
  • Food & Beverage - Other
  • Food & Beverage - Ovens
  • Food & Beverage - Washers
  • General Industry
  • General Industry - Alarm Panels
  • General Industry - Car Wash Equipment
  • General Industry - Chemical Metering/Injection
  • General Industry - Compressors
  • General Industry - Environmental
  • General Industry - Fountains
  • General Industry - Hydraulics
  • General Industry - Laser Equipment
  • General Industry - Machinery
  • General Industry - Maintenance Equipment
  • General Industry - Other
  • General Industry - Service Cart
  • General Industry - Skid Manufacturer
  • General Industry - Tanks
  • General Industry - Test Stands/Systems
  • General Industry - Welders
  • HVAC/R - Air Conditioning Systems
  • HVAC/R - Chillers
  • HVAC/R - Cooling
  • HVAC/R - Cooling Towers
  • HVAC/R - Evaporators
  • HVAC/R - General HVAC
  • HVAC/R - Heating/Condensate Systems
  • HVAC/R - Humidifers
  • HVAC/R - Other
  • HVAC/R - Refrigeration
  • HVAC/R - Warmers
  • HVAC/R Equipment
  • Medical - Imaging
  • Medical - Immunochemistry
  • Medical - IVD
  • Medical - Lab
  • Medical - Laboratory & Testing
  • Medical - Life Sciences
  • Medical - Medical Lasers
  • Medical - Other
  • Medical - Radiology
  • Medical - Renal Care / Dialysis
  • Medical - Sterilization
  • Medical Equipment
  • Off Highway Vehicles
  • OHV - Agricultural Equipment
  • OHV - Construction Equipment
  • OHV - Fertilizer
  • OHV - Forestry Equipment
  • OHV - Highway Construction Equipment
  • OHV - Industrial Equipment
  • OHV - Lawn Equipment
  • OHV - Material Handling
  • OHV - Military Vehicles
  • OHV - Mining Equipment
  • OHV - Other
  • OHV - Recreational Vehicles
  • OHV - Refueling Trucks
  • OHV - Specialty Equipment
  • OHV - Street Sweepers
  • Power Gen Equipment
  • Power Generation - AC General
  • Power Generation - Fuel Cell
  • Power Generation - Generators
  • Power Generation - Green Energy
  • Power Generation - Other
  • Power Generation - Turbines
  • Specialty Vehicles
  • Transportation
  • Transportation - Buses
  • Transportation - Commercial On-Road Vehicles
  • Transportation - Fire Trucks
  • Transportation - Fuel - Level Monitoring
  • Transportation - Other
  • Transportation - Rail - Other
  • Transportation - Rail - Passenger
  • Transportation - Specialty Vehicles
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
