Level Sensors & Switches

LS-1950 Single-Point Level Switch

Part Number: 26717

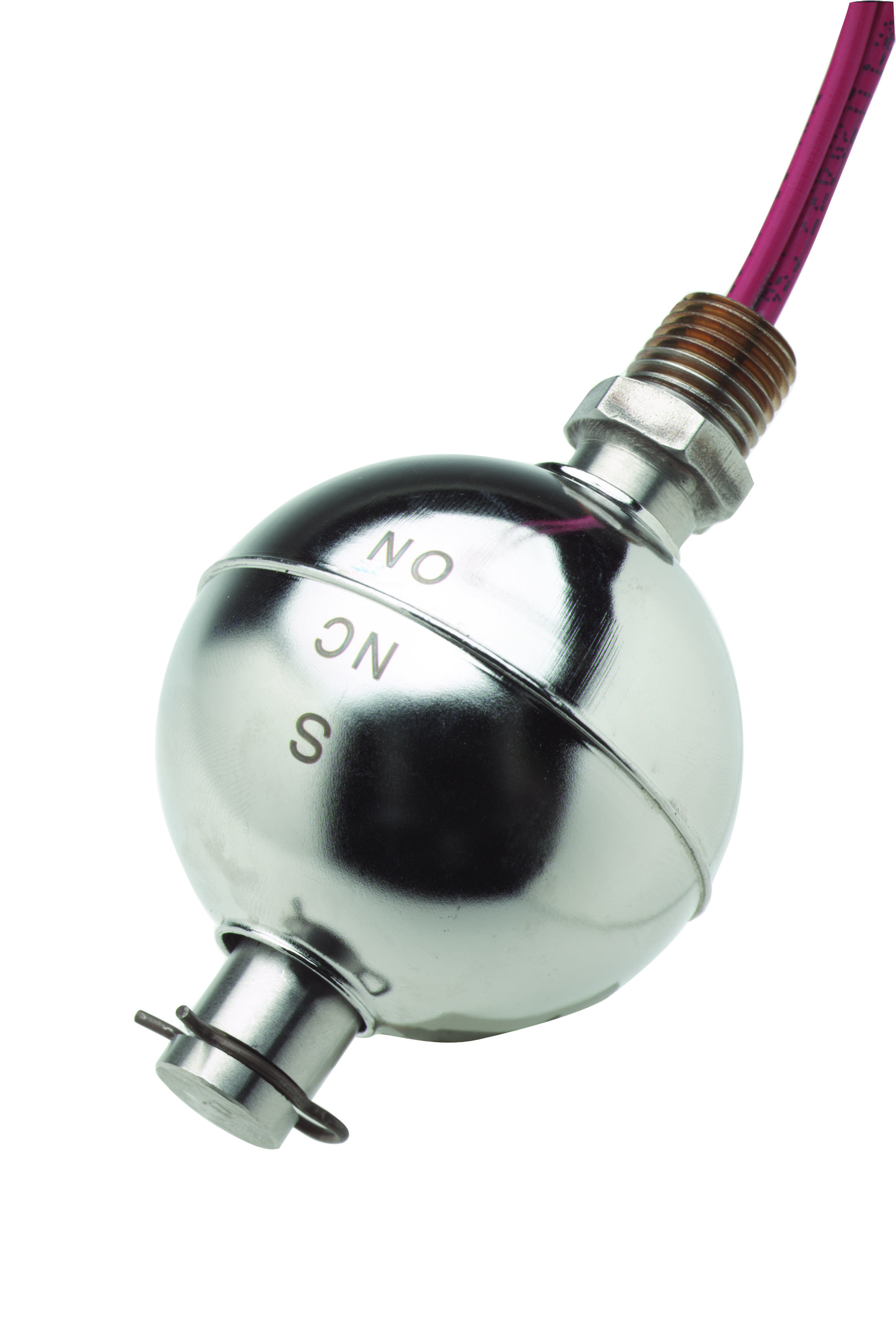

Level_LS-1950
Image is of similar product

PRODUCT DESCRIPTION:

LS-1950 Series Single-Point Level Switches provide high temperature and pressure capabilities for high performance applications, including oils, water and chemicals. The materials of construction comply with FDA food contact regulations and the switch is exceptionally accurate and rugged for higher temperatures and in pressurized or corrosive liquids.

LEAD TIME:

In Stock
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • High Temperature
  • Pressure Capabilities
  • Materials of Construction Comply with FDA Food Regulations
Sku
26717
Model
LS-1950
Sensor Type
Float Type
Primary Material Of Construction
Alloy
Wetted Materials
316 Stainless Steel
Stem Material
Stainless Steel
Float Material
316 Stainless Steel
Float Diameter
2 1/16"
Actuation Level
1 3/32"
Min. Liquid SG
0.75
Maximum Pressure
750 psi
Minimum Temperature
-40°F
Maximum Temperature
300°F
Mounting Size
1/4" NPT Male
Mounting Style
Vertical
Electrical Termination
25" Long, 18 AWG, Polymeric Leads
Switch Type
SPST (20 VA)
Switch Operation
Normally Open (Reversible)
Input
N/A
Output
N/A
Approvals
UL Recognized, CSA Listed, CE, ROHS

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, Level Switches

Format .pdf
Size 553 KB

Gems Sensors Catalog, LS-1950

Format .pdf
Size 1 MB
  • Agricultural Equipment
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Other
  • Food & Beverage - Ovens
  • Food & Beverage - Washers
  • General Industry
  • General Industry - Car Wash Equipment
  • General Industry - Compressors
  • General Industry - Elevators
  • General Industry - Hydraulics
  • General Industry - Machine Tool
  • General Industry - Machinery
  • General Industry - Other
  • General Industry - Skid Manufacturer
  • HVAC/R - Chillers
  • HVAC/R - Cooling
  • HVAC/R - Evaporators
  • HVAC/R - General HVAC
  • HVAC/R - Other
  • HVAC/R - Refrigeration
  • HVAC/R Equipment
  • Marine - Commercial - Aftermarket
  • Marine - Commercial - Other
  • Marine - Commercial - Pleasure Craft
  • Marine - Commercial - Repair Yard
  • Marine - Commercial - Ship Owner
  • Marine - Commercial - Ship Systems
  • Marine - Commercial - Shipbuilder
  • Marine - Commercial - Workboats
  • Marine - Commercial - Yachts
  • Marine - Govt & Military - Homeland Security
  • Marine - Govt & Military - Marine - Other
  • Marine Vessels
  • Off Highway Vehicles
  • OHV - Agricultural Equipment
  • OHV - Construction Equipment
  • OHV - Forestry Equipment
  • OHV - Highway Construction Equipment
  • OHV - Industrial Equipment
  • OHV - Material Handling
  • OHV - Mining Equipment
  • OHV - Other
  • OHV - Recreational Vehicles
  • OHV - Street Sweepers
  • Power Gen Equipment
  • Power Generation - Generators
  • Power Generation - Green Energy
  • Power Generation - Other
  • Power Generation - Solar
  • Process Industry - Other
  • Process Industry - Process Tanks
  • Process Tanks
  • Semicon Equipment
  • Specialty Vehicles
  • Storage Tanks
  • Waster Water Applications
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
