Level Sensors & Switches

LS-1800 Single-Point Level Switch

Part Number: 15208
LS-1800, 15208

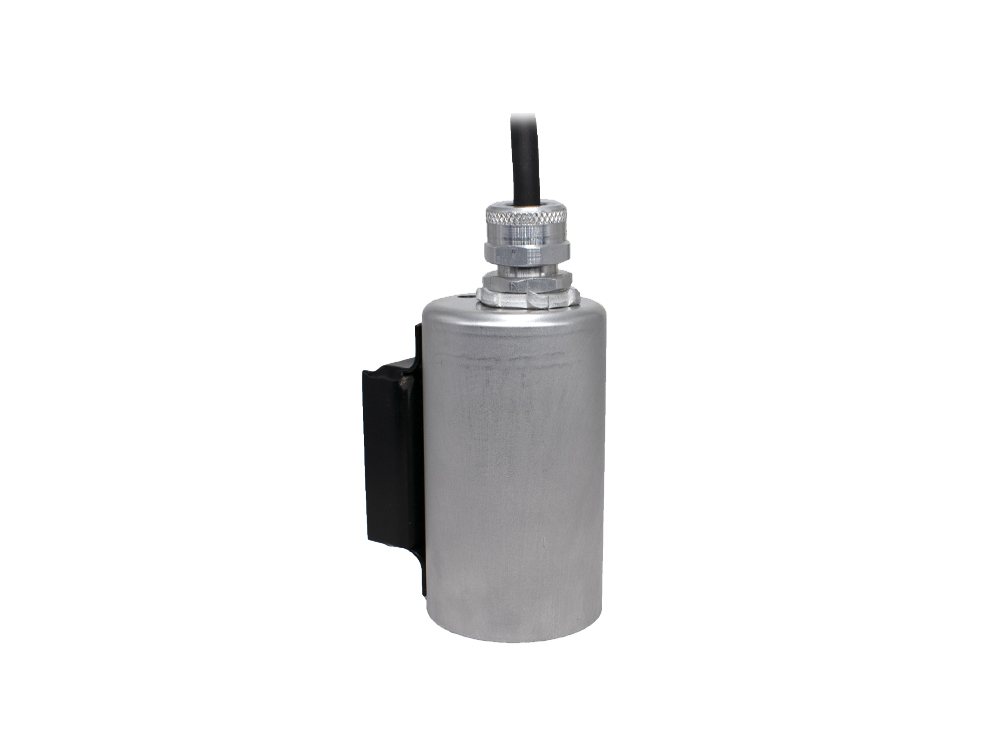

Image is of similar product

PRODUCT DESCRIPTION:

LS-1800 Series Single-Point Level Switches are intermediate in size, are suitable for high viscosity liquids and provide excellent stability for general use in oils and water. With large float displacement, the LS-1800 Series switch withstands rough service.

LEAD TIME:

5 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Withstands Rough Service
  • Intermediate Size
  • Excellent Stability
Sku
15208
Model
LS-1800
Sensor Type
Float Type
Primary Material Of Construction
Alloy
Wetted Materials
Brass, Buna N, Aluminum, 316 Stainless Steel
Stem Material
Brass
Float Material
Buna N
Float Diameter
1.145"
Actuation Level
7/8"
Min. Liquid SG
0.85
Maximum Pressure
10 psi
Minimum Temperature
-40°F
Maximum Temperature
230°F
Mounting Size
Bracket
Mounting Style
Vertical
Electrical Termination
120" Long, 18 AWG, (2) Conductor Neoprene Cable
Switch Type
SPST (20 VA)
Switch Operation
Normally Open (Non-Reversible)
Input
N/A
Output
N/A
Approvals
ROHS

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, Level Switches

Format .pdf
Size 553 KB

Gems Sensors Catalog, Large Alloy Float Level Switches

Format .pdf
Size 1 MB
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Other
  • Food & Beverage - Ovens
  • Food & Beverage - Washers
  • General Industry
  • General Industry - Car Wash Equipment
  • General Industry - Compressors
  • General Industry - Environmental
  • General Industry - Fountains
  • General Industry - Hydraulics
  • General Industry - Machine Tool
  • General Industry - Machinery
  • General Industry - Other
  • General Industry - Printing Equipment
  • General Industry - Skid Manufacturer
  • General Industry - Tanks
  • HVAC/R - Cooling
  • HVAC/R - General HVAC
  • HVAC/R - Other
  • HVAC/R Equipment
  • Power Generation - Green Energy
  • Power Generation - Other
  • Printers
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
