LS-1700TFE Single-Point Level Switch

Part Number: 174100

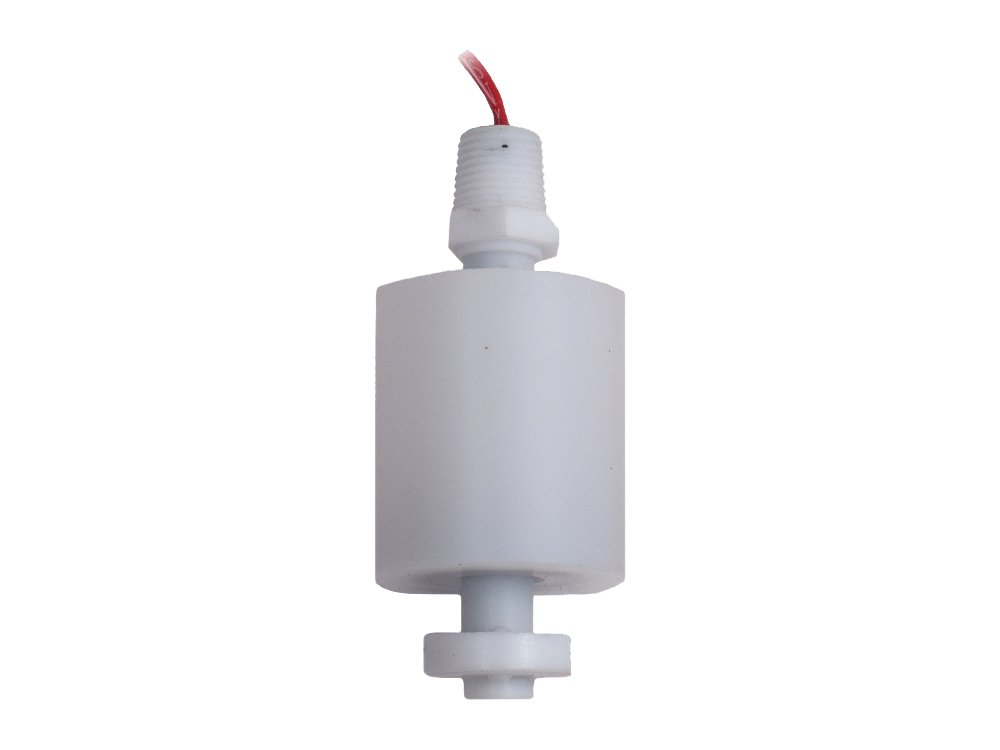

LS-1700TFE_174100
Image is of similar product

PRODUCT DESCRIPTION:

Offers broad chemical compatibility for general purpose use. Also ideal for oils and water. A medium-size solution for ultra-pure liquid level sensing. Made of corrosion resistant PTFE for low particle generation.

  • Rugged Durability
  • Ideal for Oils and Water
  • Broad Heat and Pressure Capabilities

Features

  • Low Particle Generation
  • Corrosion Resistant PTFE
SKU
174100
Model
LS-1700TFE
Sensor Type
Float Type
Primary Material Of Construction
Plastic
Wetted Materials
Teflon
Stem Material
Teflon
Float Material
Teflon
Float Diameter
1 1/8"
Actuation Level
1 31/32"
Min. Liquid SG
0.86
Maximum Pressure
25 psi
Minimum Temperature
-40°F
Maximum Temperature
212°F
Mounting Size
1/8" NPT Male
Mounting Style
Vertical
Electrical Termination
25" Long, 18 AWG, Polymeric Leads
Switch Type
SPST (20 VA)
Switch Operation
Normally Open
Input
N/A
Output
N/A

Reed Switch Protection

Format .pdf
Size 56 KB

Gems Sensors Instructions, Level Switches

Format .pdf
Size 553 KB

Gems Sensors Catalog, Large Plastic Float Level Switches

Format .pdf
Size 1 MB
  • Alt Energy Equipment
  • Food & Bev Equipment
  • Food & Beverage - Other
  • Food & Beverage - Specialty dispensing
  • General Industry
  • General Industry - Other
  • Semicon Equipment
  • Semiconductor - Other
  • Semiconductor - Semiconductor Equipment
Is there a minimum current flow requirement for a standard 20VA reed switch?

Yes, very low currents (< 5ma) can prevent “cleaning” of the contacts or not have enough energy to maintain low contact resistance. 5ma is likely a good minimum for our standard 20 VA switch. But you also want enough voltage. Approximately, 5V, 5ma is a good minimum. For low current switching we recommend a 10 VA reed switch which can better handle lower loads. (1ma for example).

What is the life expectancy of a reed switch?

A reed switch is extremely rugged and designed to operate reliably for many years, under ideal conditions, up to about 2 million cycles. To achieve maximum service life, reed switches benefit from protected electrical supply.
