Level Sensors & Switches

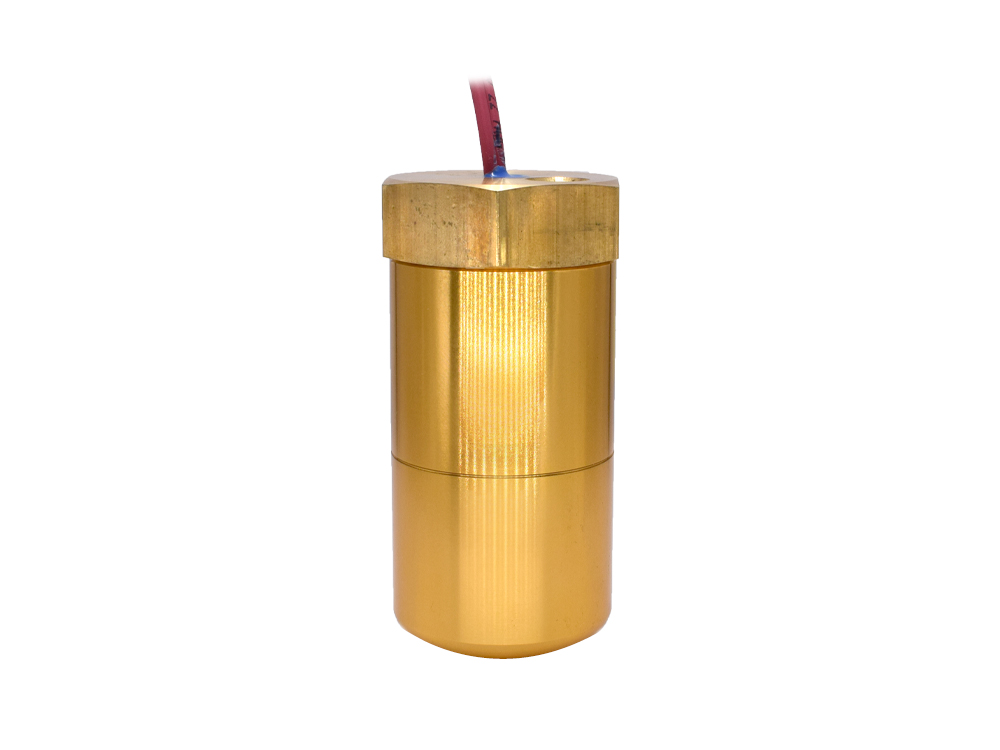

LS-159000 Single-Point Level Switch

Part Number: 144080
LS-159000_16405
Image is of similar product

PRODUCT DESCRIPTION:

LS-159000 Series bottle type level switches are ideal for large or small tanks or where access to the inside is impractical or impossible. These units mount completely outside the tank, at the level actuation point. LS-159000 Series - Low Cost, Compact Aluminum Housing. Inline NPT Ports.

LEAD TIME:

5 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  • Ideal for Large or Small Tanks
  • Compact Aluminum Housing
  • Inline NPT Ports
Sku
144080
Model
LS-159000
Sensor Type
Float Type
Primary Material Of Construction
Alloy
Wetted Materials
Aluminum, Brass, Berylium Copper, 316 Stainless Steel
Stem Material
Brass
Float Material
316 Stainless Steel
Float Diameter
1.17"
Actuation Level
1 5/16"
Min. Liquid SG
0.9
Maximum Pressure
600 psi
Minimum Temperature
-40°F
Maximum Temperature
300°F
Mounting Size
1/4" NPT Femaile Inlet 1/8" NPT Outlet
Mounting Style
Vertical
Electrical Termination
24" Long, 22 AWG, Polymeric Leads
Switch Type
SPST (20 VA)
Switch Operation
Normally Closed (Reversible)
Input
N/A
Output
N/A
Approvals
UL Recognized, CSA Listed, CE, ROHS
  • General Industry
  • General Industry - Alarm Panels
  • General Industry - Car Wash Equipment
  • General Industry - Environmental
  • General Industry - Hydraulics
  • General Industry - Other
  • HVAC/R - Cooling Towers
  • HVAC/R - Other
  • HVAC/R Equipment
