CAP-3 Capacitive Level Sensor

Part Number:

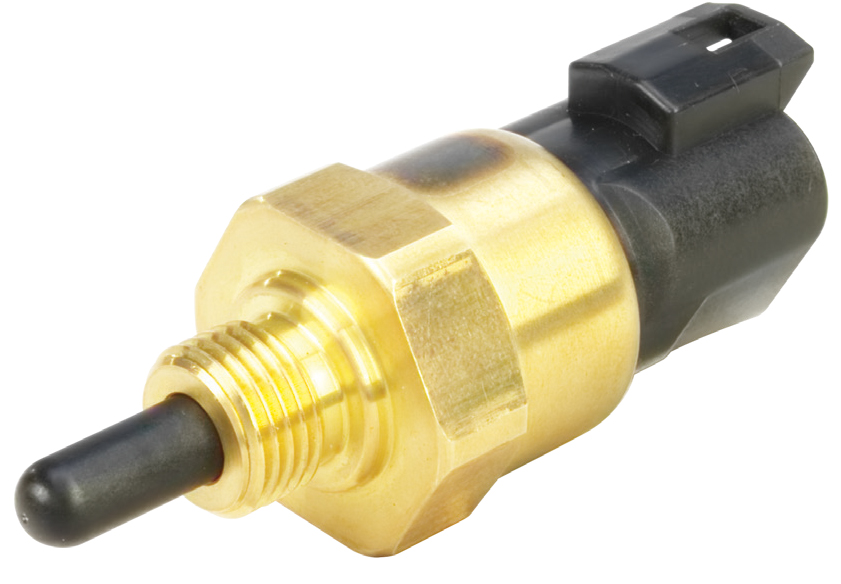

CAP-3-image
Image is of similar product

PRODUCT DESCRIPTION:

The versatile CAP-3 is a solution for OEM applications. The sensor is compact, tolerates coating, and is rugged enough for OHV, Rail, Power Generation, and HVAC applications.



LEAD TIME:

5 days
Lead-times and expedites

Lead-times apply to standard parts & configurations. Expedited shipments available by contacting factory. Lead-times may vary based on quantity and/or non-standard configurations.

CE ROHS Gems Compliant CSA

Features

  •  Durable sealed design - IP67 & IP6k9k
  • Developed for the most rugged aqueous applications
  • Tolerates coolant coating
  • Small size - under 3" total length
Model
CAP-3
Sensor Type
Capacitance
Primary Material Of Construction
Brass, EPDM, Versaplast™
Maximum Pressure
100 psi
Minimum Temperature
40°F
Maximum Temperature
212°F
Mounting Size
1/4" NPT, 1/2" NPT
Mounting Style
Vertical or Horizontal
Electrical Termination
3-pin Deutsch
Input
9-32 VDC
Output
Open collector, sinking or sourcing output, 9-32 VDC, 30mA max
Approvals
CE, IP67, IP6k9k RoHS

Gems Sensors Instructions, CAP-3

Format .pdf
Size 269 KB

Gems Sensors Catalog, CAP-3

Format .pdf
Size 862 KB
