Series 27 Direct Mode Bench Test

The below instructions help describe how to bench test a Series 27 Intrinsically Safe relay in Direct mode.  This will help users ensure the relay is working properly and help explain the operation and wiring of the board.

The relay works off liquids natural conductive properties and is typically wired to conductivity probes.  However, all Warrick conductivity relays also work with dry contact switches, like a LS-800 float level switch, because it is a non-voltage storing device.  The Series 27 is intrinsically safe, which means it limits the voltage and current traveling to the sensor to a level that is incapable of producing a spark that may ignite flammable gases.  Jumpers may be placed between the sensor contacts to help test the board and simulate a switch closure or conductance between two probes.

Single Level Service High Alarm

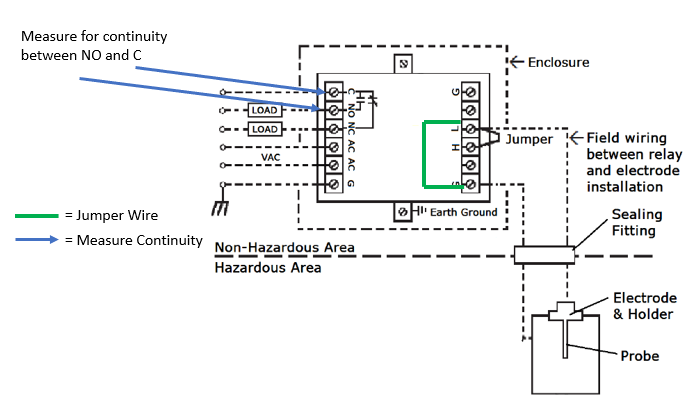

 Below diagram explains how to test the board if using it as a high-level alarm.  Place a jumper between L (Low) and G (Reference) contacts.  Leave the jumpers between L and H.  This will simulate that the H and G probes are in the liquid and the relay will energize.  The Normally Open (NO) contact will close, and you will have continuity between NO and Common (C).

27-1

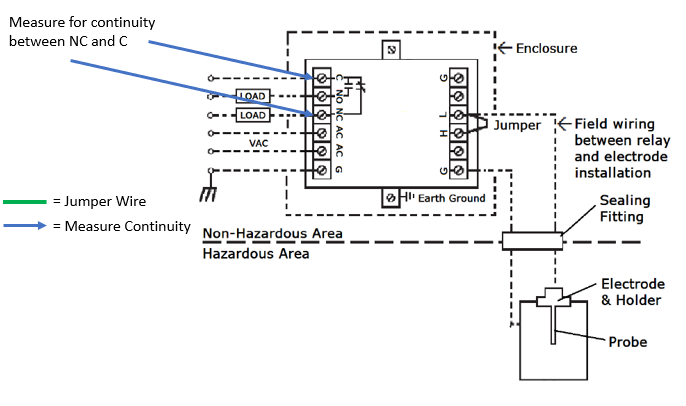

Next step is to remove the jumper between L and G, but leave the jumper between H and L.  This will simulate that all probes (H, L, and G) are not in the liquid.  The relay will be deenergized, and you should have no continuity on the Normally Open contacts, and continuity on the Normally Closed contacts.

27-2

Single Level Service Low Alarm

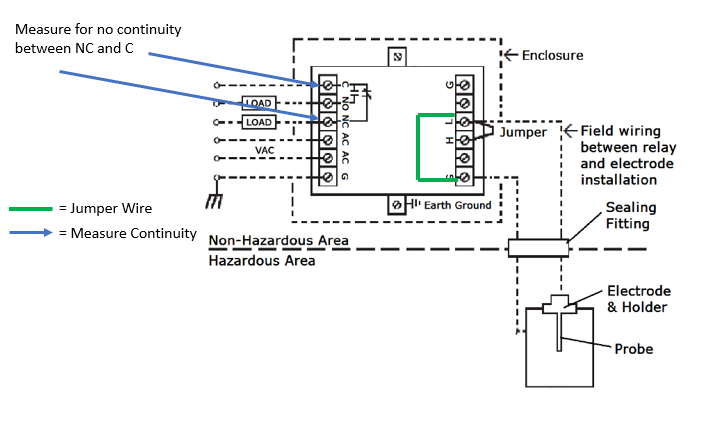

The diagram below explains how to test the board if using it as a low-level alarm.  Typically, Inverse mode is used for low-level alarms, but Direct mode can still be used, the relay will just be energized opposite of the alarm.  Place a jumper between L (Low) and G (Reference) contacts.  Leave the jumpers between L and H connected.  This will simulate that the H and G probes are in the liquid and the relay will energize.  Since this is a low-level alarm, you will be using the NC contact which will be open.

27-3

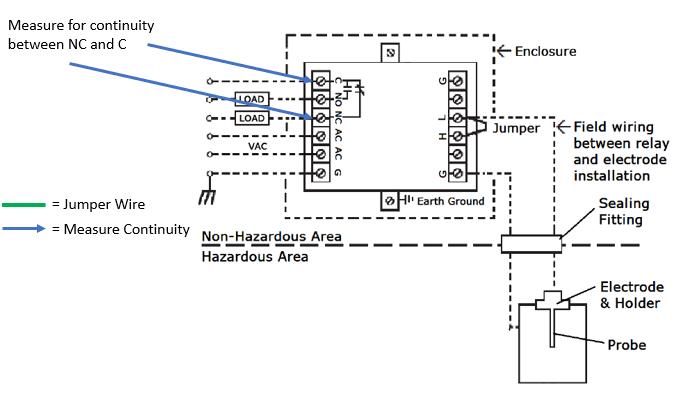

Next step is to remove the jumper between L and G, which will simulate that all the probes are dry.  The relay will be deenergized, and you should have no continuity between NO and C, and continuity between NC and C.

27-4

Differential Level Service (Pump or Valve Control)

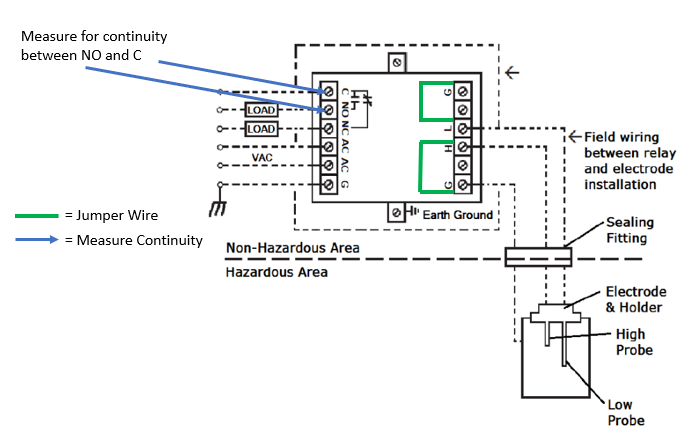

Direct mode is typically used for a pump down (valve drain) application.  First step is to place a jumper between H and G, and another jumper between L and G.  This will simulate that all probes are in the liquid.  The relay will be energized, and the Normally Open (NO) contact will close.  You should have continuity between NO and C.

27-5

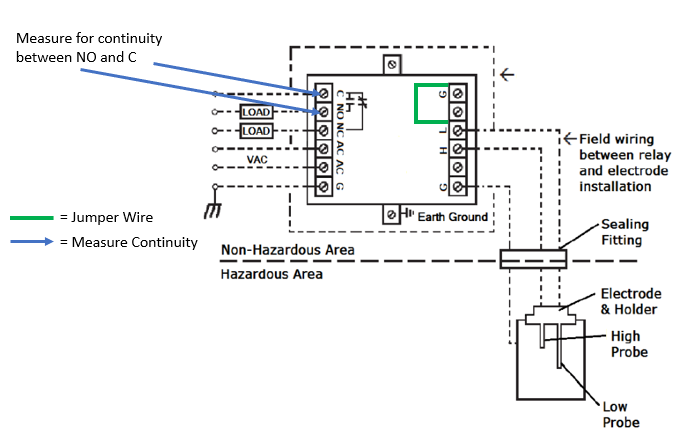

Next step is to remove jumper between H and G but leave all the other jumpers.  This will simulate that the liquid level is dropping, which is typical in a pump down (valve drain) situation.  However, the relay should remain energized because it is latched, and still have continuity on the Normally Open contacts.

27-6

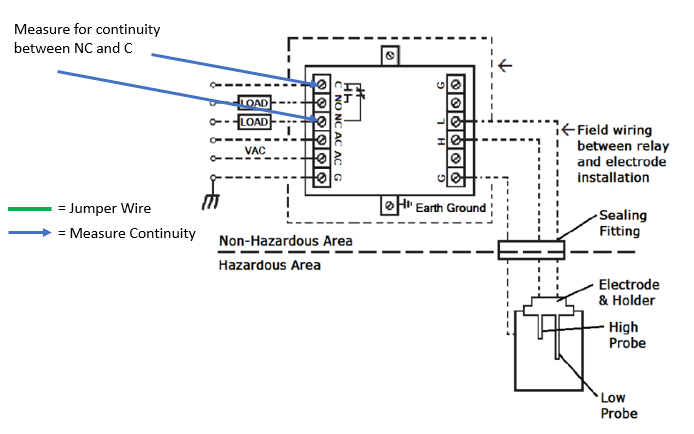

Last step is to remove the jumper between L and G.  This will simulate that the liquid level is beneath both the High (H) and Low (L) probes.  The relay should now be deenergized and the Normally Open (NO) will be open and the Normally Closed (NC) will be closed.

27-7

Additional Tests to Run

After the relay is bench tested, you can also perform these same tests at the probe fitting.  This will ensure the wiring is correct and there are no shorts present.  You may need a helper to confirm the relay is actuating.

Since jumping the relay out does not test the relays ability to conduct through a liquid, you can also perform these same tests using a bucket of water.  When it calls for two contacts to be jumped out, for example H and G, then both H and G probes should be placed in the bucket of water.  This will accomplish the same thing and test the relays ability to conduct through the liquid.

You may also choose to leave the probes installed and place the probe wire directly into the bucket of water.  In this case the wire will act as the probe and the probe wire.
