Warrick Series 16 Standoff Kits

16-standoff-1

The Series 16 Open Board Relay is mounted with either standoffs, screws, or on a retrofit plate.  The below explains more on each as well as provided the part numbers to order in the likelihood they need to be replaced.



1/16” Panel:

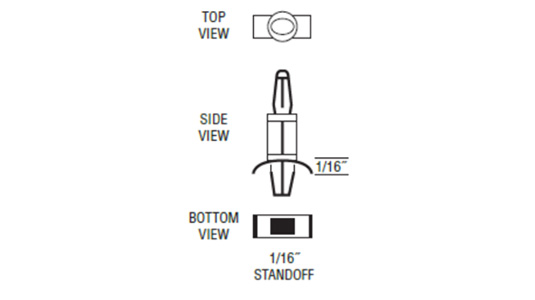

These standoffs are used to mount within a panel.  The kit part number is 7763305, which includes the 1/16” standoffs.  Below shows the detail of the 1/16” standoff:



DF-Standoff2



1/8” Panel:

These standoffs also are used to mount within a panel.  The kit part number is 7763301, which will include the 1/8” standoffs.  Below shows the detail of the 1/8” standoff:

DF-Standoff3





Screw Mount:

The screw mount is a screw with a plastic through hole for the screw to go through and the board to sit on.  The kit part number is 7880225, it includes the screws, the PVC sleeve, and the washers. Below are the details:

DF-Standoff4

Retrofit Plate:

The retrofit option mounts the Series 16 relay on a metal plate.  This retrofit plate has the same footprint as the obsolete Series 1 relays so it can be mounted in the same position.  You will need to order (3) standoffs, part number, 7763216, (1) keystone part number, 7763218, and if you need another plate, part number 7763294.

Please contact Gems for pricing and availability.
