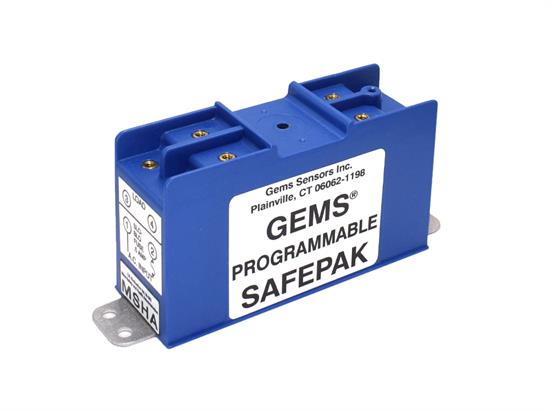

Programmable SAFE-PAK Installation

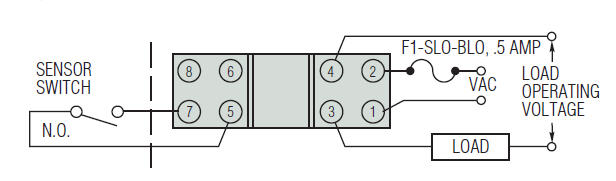

Normally Open Load Operation: Switch closure to terminals 5 and 7 turns programmable Relay "on" and energizes load. Same switch opening will turn "off" programmable Relay and de-energize load. Terminals 6 and 8 are not used.

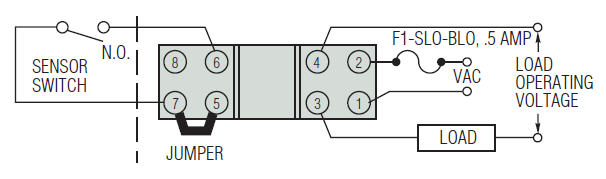

Normally Closed Load Operation: Switch closure to terminals 6 and 7 turns Programmable Relay "off" and de-energized load. Same switch opening will turn "on" programmable Relay and energize load. Jumper must be connected between terminals 5 and 7... terminal 8 is not used.

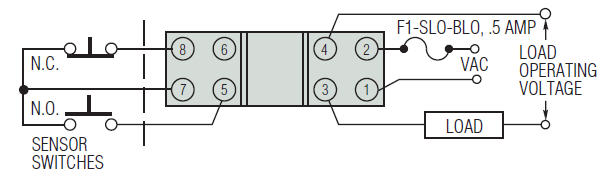

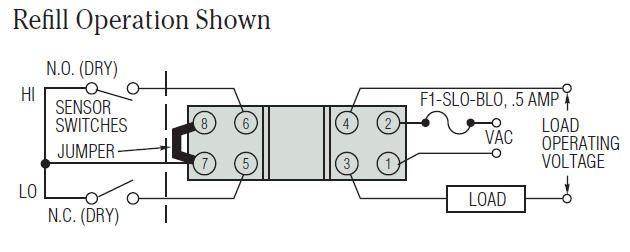

Latching "A" Operation: For refill control, momentary switch closure to terminals 5 and 7 turns Programmable Relay "on" and energized load. Load remains "on" until the Programmable Relay turns "off" with a momentary switch closure at terminals 6 and 7. The load is then de-energized. Jumper must be connected between terminals 7 and 8. For pump-down, reverse wires on terminals 5 and 6.

Latching "B" Operation: Momentary switch closure to terminals 5 and 7 turns Programmable Relay "on" and energizes load. Load remains "on" until the N.C. switch terminals 7 and 8 opens. The Programmable Relay turns "off" and load is de-energized. Terminal 6 and jumper are not used.

Note: Latching function should be accomplished on sensor input side of the Programmable SAFE-PAK®. No latching function is advised on the output power circuit side.

Typical wiring diagram for sensor installation and configuration.

Typical wiring diagram for sensor installation.

Sensor wiring diagram for electrical configuration.

Sensor wiring diagram for industrial setup.
