65800 Series Single Channel Zener Barriers Applications

Sensors or Switches may be any non-voltage-producing device. Typical are: flow and level switches, temperature switches (thermostats), pressure switches or passive resistive transducers or transmitters. Below are typical examples.

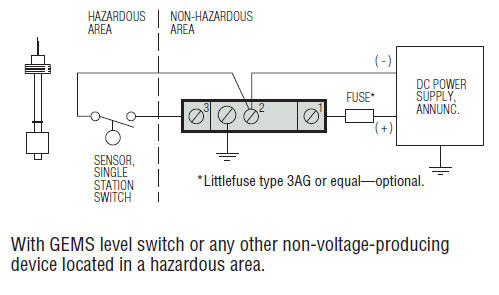

65800-L8a

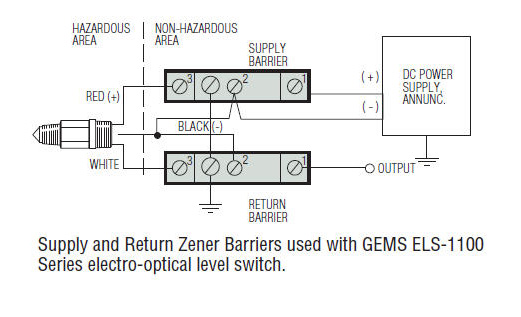

65800-L8b

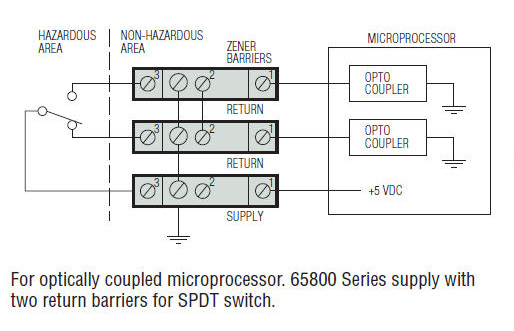

65800-L8c

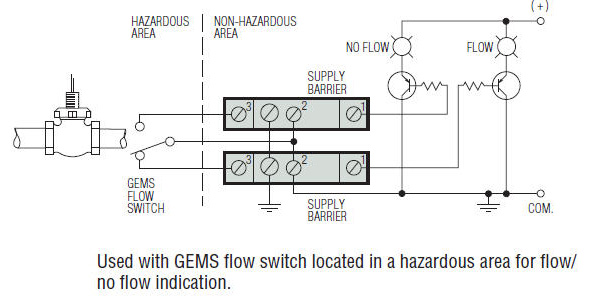

65800-L8d
