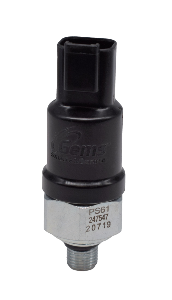

All New, Redesigned PS61 OEM Subminiature Pressure Switch

$40 USD Base Price
Generous Discounts to Qualified OEM's


Designed For Reliable Performance in Challenging Environments at Competitive Prices For All of Your Hydraulic & Pneumatic Applications


  • Configurable Selections – A host of ports and electrical options to fit your application needs
  • Lightweight, Compact Design – Less than 2” (50 mm) long body & weighs under 2 oz (75 g)
  • Wide Media Range – Resistant to most fluids & environments
  • High-Temperature Range – Operates from -40° F to +250° F (-40° C to +121° C)
  • Reliable – Designed for over 2,000,000 repeatable cycles
  • Durable & Environmentally-Sealed – Available up to IPX7, IPX9K & IP6KX
  • High Shock & Vibration Resistance – Tested to MIL-SPEC
  • Broad Pressure Range – Low (10 PSI / 0.7 bar) to High (4350 PSI / 300 bar)
  • Approvals – CE, RoHS

AVAILABLE, ORDER NOW!
PS61 Pressure Switch Applications



Sensing Fluids

  • Coolant
  • Hydraulic Oil
  • Air
  • Engine Oil
  • Brake, Power Steering, and Transmission Fluids
  • And Many Others!



Comparison Chart


PS61 Deutsch ConnectorPS41 Series pressure switch
SeriesPS61PS11PS41PS71
Set Points10 to 4,350 psi
(0.7 to 300 bar)
0.75 to 15 psi
(0.051 to 1 bar)
3.5 to 100 psi
(0.24 to 7 bar)
10 to 5,000 psi
(0.7 to 344 bar)
Max Pressure7,000 psi
(483 bar)
150 psi
(10.3 bar)
350 psi
(24 bar)
6,000 psi
(414 bar)
Temp Ranges-40°F to +250°F
(-40°C to +121°C)
-40°F to +250°F
(-40°C to +121°C)

-10°F to +250°F
(-23°C to +121°C)

-10°F to +250°F
(-23°C to +121°C)
Housing MaterialsZinc-plated Steel
316 Stainless Steel
BrassBrass
316 Stainless Steel
Zinc-plated Steel
316 Stainless Steel
Contact StyleMake/BreakSnap-action MicroswitchSnap-action MicroswitchSnap-action Microswitch
Contact ConfigurationSPST/N.O.
SPST/N.C.
SPST/N.O.
SPST/N.C.
SPDT/ N.O. & N.C.
SPST/N.O.
SPST/N.C.
SPDT/ N.O. & N.C.
SPST/N.O.
SPST/N.C.
SPDT/ N.O. & N.C.
Highest IP RatingIPX7, IPX9k & IP6KXIP00IP66IP66
DeadbandNarrowMedium to WideMedium to WideMedium to Wide
Switch Ratings1 A @ 12VDC, 100 VA5 A @ 24VDC & 250 VAC5A @ 125/250 VAC
10A @ 125/250VAC
5A @ 125/250 VAC
10A @ 125/250VAC
ApprovalsCE, RoHSCE, RoHS & UL AvailableCE, RoHS & UL AvailableCE, RoHS & UL Available

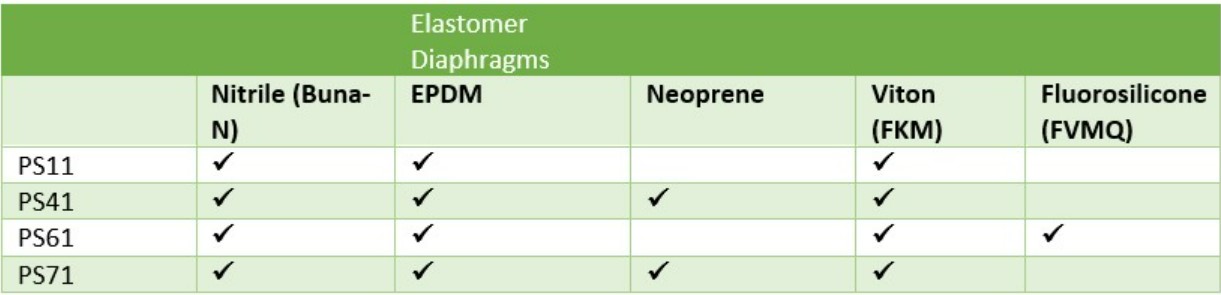

Media CompatibilityPressure Range codes 10-60: Liquids & Gases
Pressure Range codes 70-100: Liquids
Liquids & GasesLiquids & GasesLiquids & Gases





For More Information on the PS61, Fill Out the Form Below
