Understanding Pipe Size Standards for Clamp-On Flow Measurement

Why They Matter for Clamp-On Flow Measurement

Accurate flow measurement starts with a clear understanding of pipe sizing. Terms like NPS, DN, and OD are commonly referenced in specifications and drawings, yet they are often misunderstood or used interchangeably. For engineers, OEMs, and MRO teams, these distinctions are especially important when selecting clamp-on ultrasonic flow meters, where proper fit directly impacts signal quality and measurement accuracy.

This article provides a practical overview of pipe size standards and explains how they relate to non-invasive ultrasonic flow measurement using the Gems XFT Series as a real-world application example.

NPS: Nominal Pipe Size (Imperial Standard)

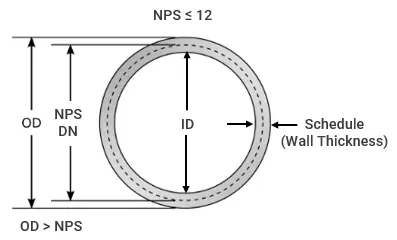

Nominal Pipe Size (NPS) is a dimensionless designation used primarily in North America and tied to the imperial system. Despite appearing to reference inches, NPS does not represent the actual pipe diameter*.

For example, an NPS 1½ pipe does not measure 1.5 inches OD. Its actual outside diameter is 1.9 inches. This convention dates back to early pipe manufacturing practices, where internal diameter was held constant while wall thickness evolved. Over time, pipe schedules changed, but the original NPS naming convention remained.

NPS is a naming standard and not a physical measurement. Outside diameter must always be verified separately.

*Note: This is for pipe sizes of NPS 12” or below. For NPS 14” or above, NPS and OD are the same.

DN: Diameter Nominal (Metric Standard)

Diameter Nominal (DN) is the metric counterpart to NPS, defined by ISO standards. Like NPS, DN is also dimensionless and does not equal the pipe’s actual diameter in millimeters.

For instance, a common DN 20 pipe outside diameter is 26.67 mm (1.050 in), not 20 mm. Conversion tables are commonly used to correlate DN, NPS, and OD values when working across international standards. Much like NPS, DN provides a standardized reference, but actual OD is still required for proper sensor calibration.

OD: Outside Diameter: The Critical Dimension

While NPS and DN are useful for classification, outside diameter (OD) is the most important parameter when specifying and calibrating clamp-on flow meters. Ultrasonic sensors rely on precise spacing, acoustic coupling, and signal alignment—all of which are dependent on the true OD of the pipe.

Incorrect OD assumptions can lead to:

• Reduced signal strength
• Measurement instability
• Installation challenges
• Inaccurate flow readings

This is why OD verification is a critical step in any clamp-on flow meter application.

Why Pipe Size Matters for Clamp-On Ultrasonic Flow Meters

Clamp-on ultrasonic flow meters measure flow by transmitting sound waves through the pipe wall and fluid. Because the sensor never comes into contact with the process media, installation is fast and non-invasive; however, accuracy depends heavily on the correct pipe parameters.

Key pipe-related inputs typically include:

• Outside diameter (OD)
• Pipe wall thickness
• Pipe material
• Fluid type and temperature

The XFT’s modern clamp-on design simplifies this process by guiding users through parameter setup and optimization.

A Note on Pipe Wall Thickness (Schedule)

Pipe schedule (SCH) is a standardized system for indicating pipe wall thickness. For a given Nominal Pipe Size (NPS), a higher schedule number (e.g., SCH 80 vs. SCH 40) means a thicker wall, higher pressure capability, and a smaller inside diameter (ID) while the outside diameter (OD) remains constant. Schedule values are guide numbers rather than direct measurements and are used alongside NPS to properly specify pipes for different pressure and mechanical requirements. Stainless steel pipes often use an “S” suffix (such as 40S), reflecting material properties that allow similar strength with different wall thicknesses.

XFT Series tested and verified wall thickness:

Applying These Principles with the Gems XFT Series

The Gems XFT Series clamp-on ultrasonic flow meter is designed to address the real-world challenges associated with pipe size variation and system retrofits. With outside diameters ranging from 16 mm to 52 mm (3/8" to 1.5"), the XFT accommodates common piping used in cooling loops, process utilities, and equipment skids.

Key features that support accurate pipe-based measurement include:

• Automatic optimization and self-learning routines
• Configurable pipe OD, wall thickness, material, and media settings
• Support for various pipe materials
• Real-time signal quality indication to confirm proper installation

These capabilities enable engineers and maintenance teams to obtain reliable measurements without cutting pipes, draining systems, or interrupting operations.

Practical Benefits for OEMs and MRO Teams

Understanding pipe sizing and selecting instrumentation designed around it delivers tangible benefits:

• OEMs can standardize designs across regions using DN and NPS conversions while relying on OD-based configuration.
• MRO teams can add or upgrade flow measurement on existing systems without shutdowns.
• Facilities and utilities gain visibility into cooling and process flows with minimal installation risk.

Clamp-on solutions like the XFT are particularly well-suited for applications where uptime, cleanliness, and flexibility are critical.

Learn More or Discuss Your Application

For engineers looking to dive deeper, this pipe sizing overview is also available as a downloadable technical PDF for reference and internal use.

If you’d like to discuss how pipe sizing impacts your specific application or explore whether the XFT Series is a fit for your system, you can:

• Schedule a 1:1 Teams meeting for application guidance and technical support
• Visit the XFT product page to review specifications, configure options, request quotes, and place orders online

Understanding pipe size standards is a small step that makes a big difference in flow measurement success, and the right clamp-on technology makes it easier than ever to put that knowledge into practice.
