Warrick Series 26M Part Number Configuration

Building a Warrick Controls Part Number

26M Warrick sensor blog image.

The series 26M liquid level controller is enclosed in a clear Lexan modular design with a plug-in socket for use with float-type or conductive probe-type level sensors. It is designed for low-water cutoff protection. When configuring a Warrick 26M you will need to select from several options which will be explained in this blog.

Sensitivity

How sensitive does the control module need to be? The general rule is the sensitivity of the control (e.g. 10K, 26K etc.) should be greater than the resistance of the liquid. The less conductive (more resistance) a liquid is, the more sensitive the control module needs to be. It is usually better to choose the sensitivity level that is above, yet as close to the conductivity/resistance as you can. Choosing a level too high could sense mist, foam, steam, etc., or even cause the module to not operate properly.

Please note, if your liquid conductivity is too high for any sensitivity level listed, then you will need to consider a float-type level sensor.

Part Number Code

Sensitivity

A

4.7K

B

10K

C

26K

D

50K

E

100K

Supply Voltage

The supply voltage selection is what is used to power the control module (attached to terminals L1 and L2).

Part Number Code

Supply Voltage

1

120VAC

2

240VAC

3

24VAC

8

208/240VAC

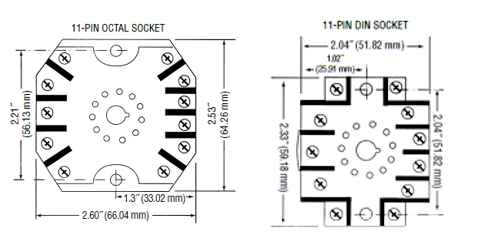

Socket Style

Plug-in style sockets allow for easy install and removal. After you have your socket mounted to your panel with all wires attached, future orders can be “M,” module only, without the need for re-wiring.

Alternate socket style diagram for sensor wiring.

Enclosure

You can choose to have the control module affixed within a 6x6x4 fiberglass NEMA rated enclosure.

Type 1 enclosure constructed for indoor use to provide a degree of protection to personnel against access to hazardous parts and to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (falling dirt).

Type 4 offered is type 4X enclosure constructed for either indoor or outdoor use to provide a degree of protection to personnel against access to hazardous parts; to provide a degree of protection of the equipment inside the enclosure against ingress of solid foreign objects (windblown dust); to provide a degree of protection with respect to harmful effects on the equipment due to the ingress of water (rain, sleet, snow, splashing water, and hose directed water); that provides an additional level of protection against corrosion; and that will be undamaged by the external formation of ice on the enclosure.

Part Number Code

Enclosure

0

None

1

NEMA 1

4

NEMA 4

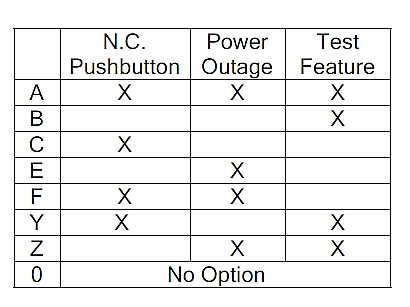

Options Package

Detailed options descriptions can be found in the instructions document found HERE .

Gems 26M sensor wiring diagram for installation.

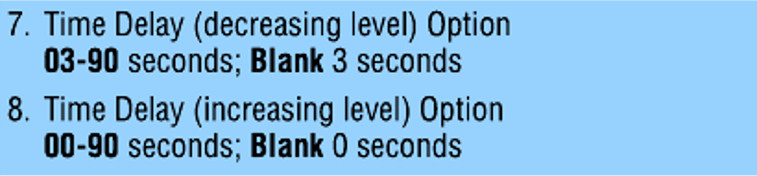

Time delay configuration for Gems sensor systems.

Time Delay

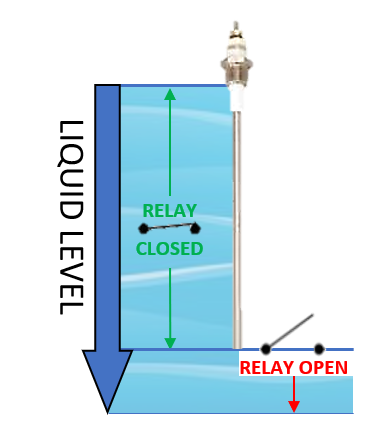

The time delay option can be used to prevent excessive relay operation due to waves, turbulence, disruptions in the water level when at or near the probe end. With time delay on increasing level, the liquid must be in contact with the low-level cutoff (LLCO) electrode for the full duration of the time delay before control will operate. 3 second time delay on decreasing level is standard. Delay up to 90 seconds can be specified and would act in the same manner as listed above.

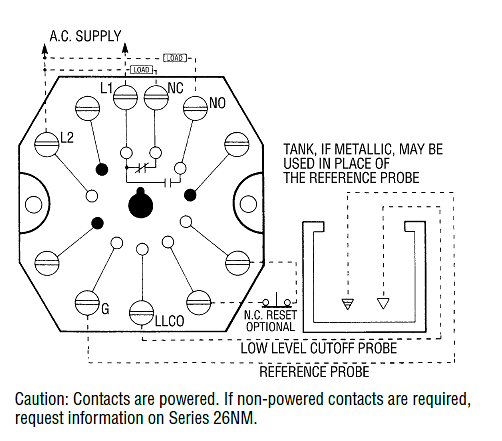

Alternate 26M wiring diagram for Gems sensor setup.Liquid level diagram for Gems 26M sensor blog.

Part Number Code

Time Delay (Decreasing Level) Option

03-90

3-90 seconds

Blank

3 seconds

Part Number Code

Time Delay (Increasing Level) Option

03-90

3-90 seconds

Blank

3 seconds
