Warrick Series 1 General Crossover Information
Warrick Controls Part Number Crossovers

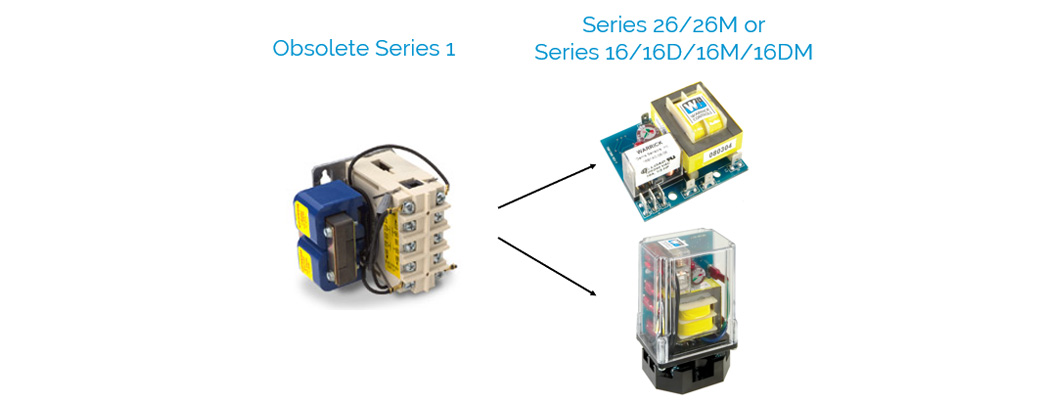

The Series 1 control was an industrial control for low sensitivity applications. They contained 2 or 3 pole contacts with high contact ratings. The Series 1 is obsolete but can be replaced with current solid-state Warrick Relays. Note that Series 1 relays cannot be within the same tank as current style relays due to the different voltages. Review the information and links to each crossover list below. The Series 1 instruction bulletin is linked below so you can review the part number structure.
Series 26M (module) or Series 26 (open board) Low Water Cutoff Control
- No probe shock hazard
- Solid state electronics
- Output: SPDT, 10A, Powered
- 3 Second Time Delay Standard
- Additional Features Power Outage Feature Manual Reset Pushbutton Test Feature Retrofit Plate to Mount with Series 1 or 2 Holes Additional time delays UL 353 Approval
Series 1 Crossover to Series 26M
Series 1 Crossover to Series 26
Series 16M (module) or Series 16 (open board) Pump/Valve Control
- No Probe Shock Hazard
- Solid State Electronics
- Output: SPDT, 10A
- Additional Features Time Delays on Rising and Falling Level Retrofit Plate to Mount with Series 1 or 2 Holes UL 508 Approval
Series 1 Crossover to Series 16M
Series 1 Crossover to Series 16
Series 16DM (module) or Series 16D (open board) Pump/Valve Control
- No Probe Shock Hazard
- Solid State Electronics
- Output: DPDT, 5A
- Additional Features: Time Delays on Rising and Falling Level Retrofit Plate to Mount with Series 1 or 2 Holes UL 508 Approval
