Warrick Series 3E & 3F: Probe Spacer Info

Sensor fittings and probes for installation.

Below is information on probe spacers for Warrick fittings 3E and 3F. Probe spacers are used to keep probes apart, so they don’t conduct and indicate a false reading, especially for longer length probes. For lengths over ten feet it is recommended to use a wire suspended probe, 3W or 3Y. Match your 3E or 3F mounting type and number of probes to order the correct spacer.

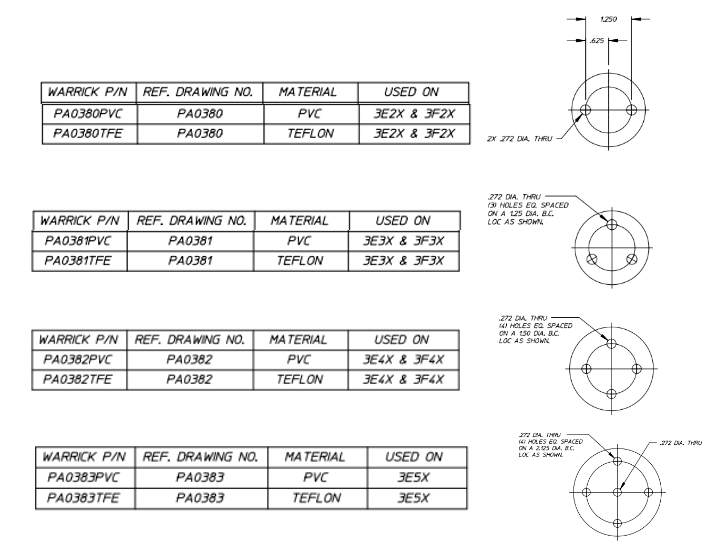

3E and 3F spacers sensor image.

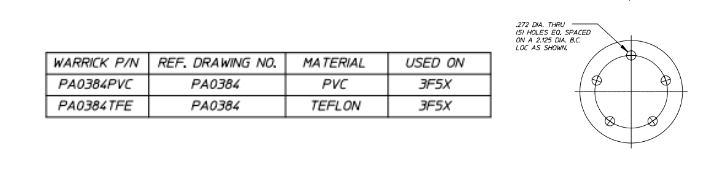

3E and 3F sensor image version 2.

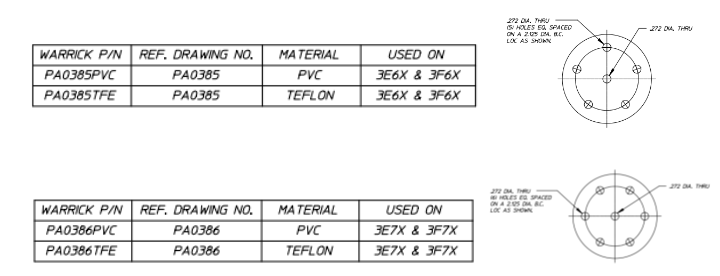

3E and 3F sensor image version 3.
