SureSite Switches: Wiring Guide

Disclaimer: Please note, all information on this page referring to EP, XP, explosion Proof, Factory Mutual, or FM approval are for reference purposes only. Explosion proof products and part numbers for these models are obsolete and no longer available to purchase from Gems.

SureSite Switches Wiring Guide

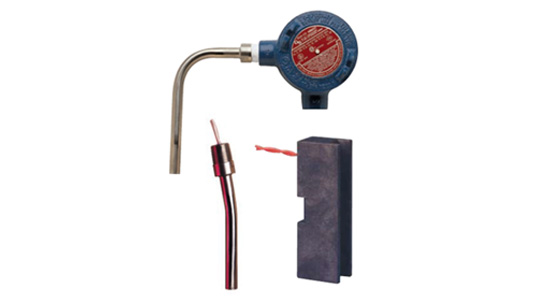

SureSite switches with sensor integration.

This guide covers the wire connections diagram for SureSite standard switch, high temperature switch, and explosion proof switch for alloy, plastic, and mini versions.

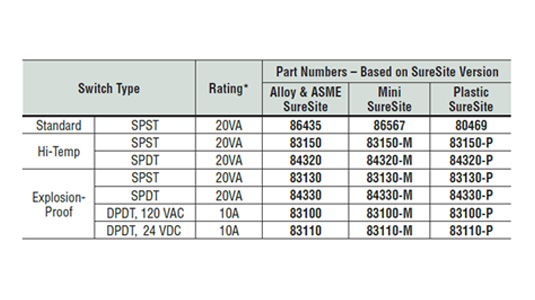

SureSite switch configuration for level sensing.

Standard Switch, SPST:

86435, 86567, 80469SureSite switch layout for industrial applications.

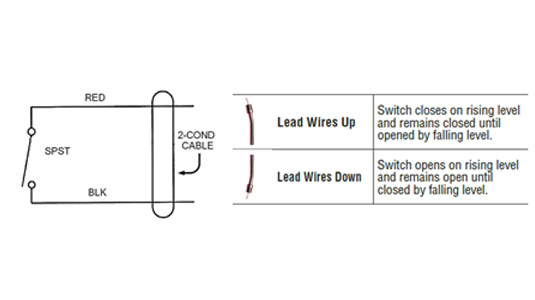

Hi-Temp Switch, SPST:

83150, 83150-M, 83150-P

SureSite switch wiring diagram for engineers.

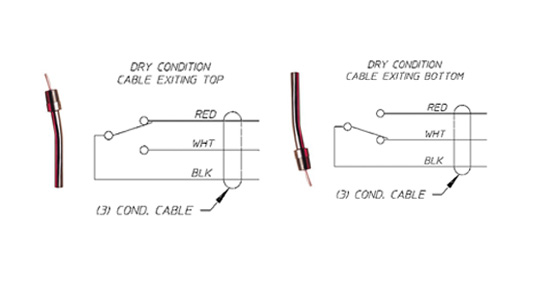

Hi-Temp Switch, SPDT:

84320, 84320-M, 84320-P

SureSite switch module for rugged environments.

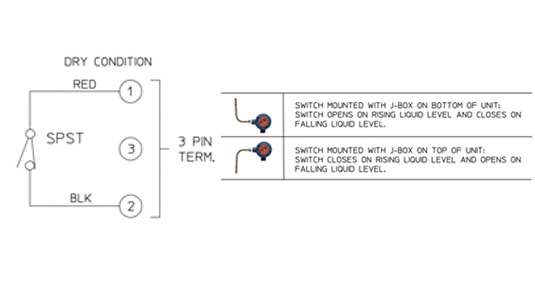

EP Switch, SPST:

83130, 83130-M, 83130-P

SureSite switch interface for fluid monitoring systems.

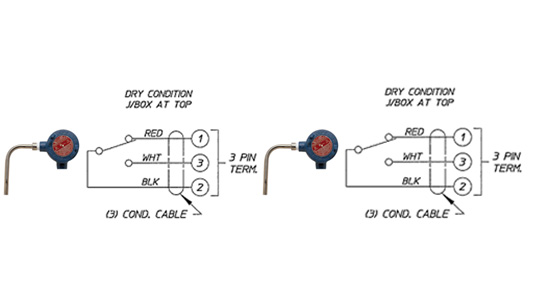

EP Switch, SPDT:

84330, 84330-M, 84330-P

SureSite switch housing for compact installations.

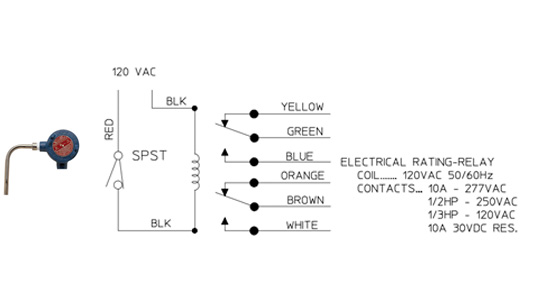

EP Switch, DPDT 120VAC:

83100, 83100-M, 83100-P

SureSite switch assembly for vertical mounting systems.

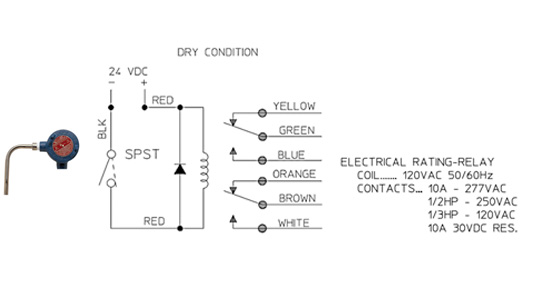

EP Switch, DPDT 120VDC:

83110, 83110-M, 83110-P

SureSite switch schematic for engineering reference.

SureSite switch clamps part numbers found HERE.
