Warrick Series 2 General Crossover Information

Warrick Controls Part Number Crossovers

Crossover Information for Obsoleted Series 2

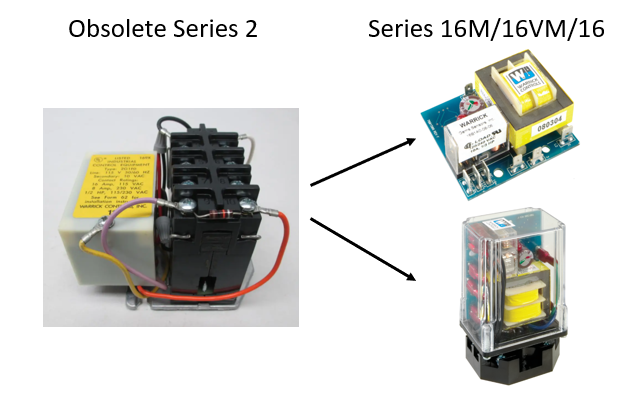

The Series 2 control was a simple solid-state industrial type control with field adjustable senstivity. They contained 2 or 3 pole contacts with high contact ratings. The Series 2 is obsolete but can be replaced with current solid-state Warrick Relays. If you know the sensitivity you are using you can replace it with a Series 16M (module) or a Series 16 (open board). Note that Series 2 relays cannot be within the same tank as current style relays due to the different voltages. Review the information and links to each crossover list below. The Series 2 instruction bulletin is linked below so you can review the p/n structure.

Series 2 Instruction Bulletin

Series 16VM (module) Pump/Valve Control

• Field adjustable sensitvity
• Module design
• No probe shock hazard
• Solid state electronics
• Output: SPDT, 10A
• Additional Features
  Time delays on rising and falling level
  Retrofit plate to mount with Series 1 or 2 holes
  UL 508 approval

Series 2 Conversions to Series 16VM

Series 16M (module) Pump/Valve Control

• Factory set sensitivity, not adjustable
• Module design
• No probe shock hazard
• Solid state electronics
• Output: SPDT, 10A
• Additional Features
  Time delays on rising and falling level
  Retrofit plate to mount with Series 1 or 2 holes
  UL 508 approval

Series 2 Crossover to Series 16M

Series 16 (open board) Pump/Valve Control

• No probe shock hazard
• Open board design
• Solid state electronics
• Output: DPDT, 5A
• Additional Features Time delays on rising and falling level Retrofit plate to mount with Series 1 or 2 holes UL 508 approval

Series 2 Conversions to Series 16
