FT-110 Flow Sensor: Electrical Connector Info

For P/Ns 218572, 212404

Gems FT-110 Flow Turbine sensor is available with two electrical connection options, Cable or DIN. The cable is 24 AWG 3 conductor, 3’ long. The DIN is a Form C, Industrial Type (Micro), with 9.4mm spacing.

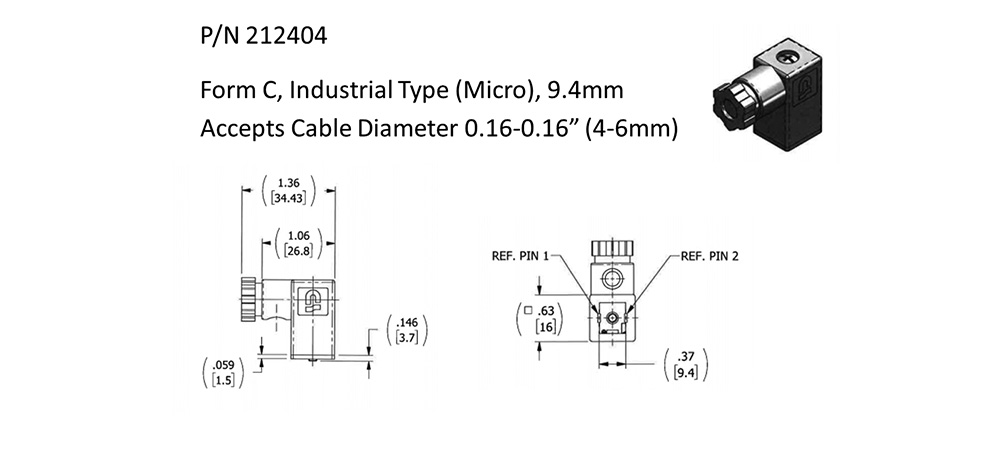

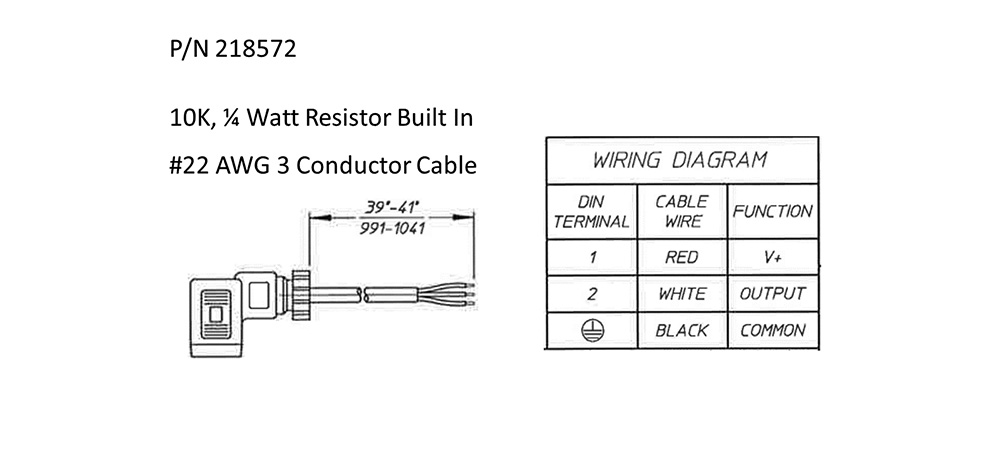

The below diagrams help explain the two accessories that can be ordered when selecting the DIN option. P/N 218572 will include the DIN connector, with a built-in 10K, ¼ Watt resistor, and with approximately 1m of cable. P/N 212404 is just the Form C Mating DIN connector.

Please refer to the instruction bulletin for further installation instructions.
