Warrick 3T Probe Installation Into 3G Fitting Instructions

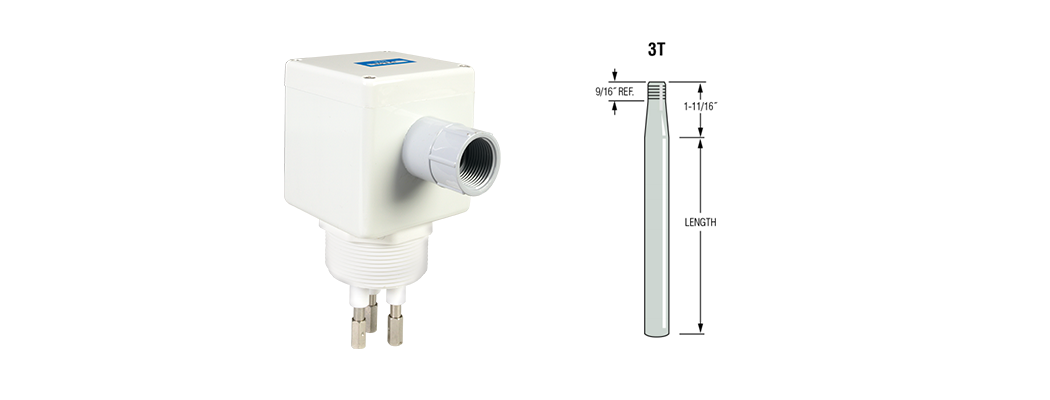

3G-3T sensor image for dual configuration.

3T Tapered probes are used on Warrick 3G fittings, option 2 under the Probe Type. For example, P/N 3G2E2, where the second ‘2’ signifies it is compatible with the 3T probe. This installation is different from the 3R probe that is simply threaded into the female coupling that is already installed on other Warrick fittings.

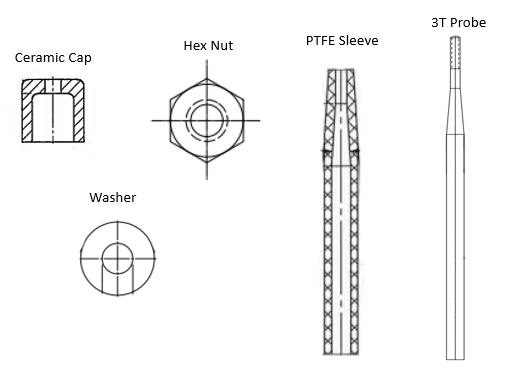

The fitting will come with a kit to attach the 3T probe into the fitting. The kit will include the ceramic cap, the PTFE sleeve, a washer, and a hex nut.

See Kit breakdown below:

3T/3G sensor configuration for fluid control systems.

Step 1

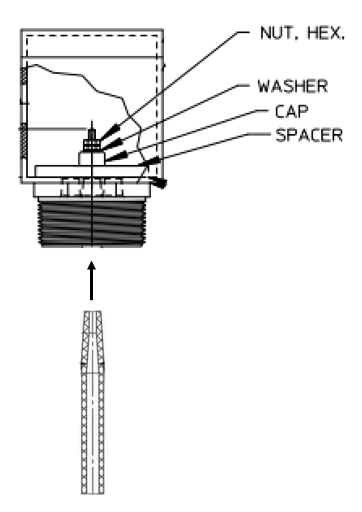

Take the PTFE Sleeve and press fit it into the 3G fitting from the bottom up, with the narrow end in first. See below image.

3T/3G sensor layout for industrial automation.

Step 2

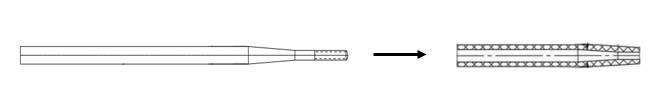

Now that the PTFE sleeve is within the 3G fitting, next step is to push the 3T probe within the PTFE sleeve. See below.

3T/3G sensor wiring diagram for engineers.

Step 3

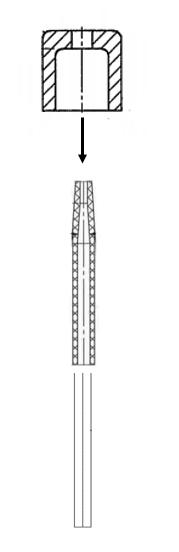

Next step is to place the ceramic cap over the PTFE sleeve and 3T probe within the 3G junction box.

3T/3G sensor module for rugged environments.

Last step is to place the washer over the threads, and then thread the hex nut onto the 3T threads and tighten it down to approximately 9.6 in-lbs of torque to complete the installation.
