35XX Sensor: 4-20mA Output Bench Testing

Bench Testing 35XX Series Pressure Sensor with a 4-20 mA Output

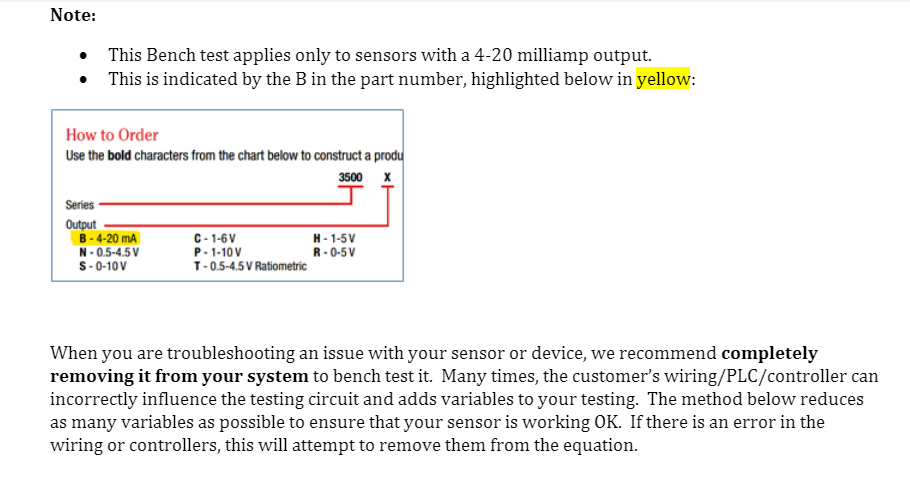

Bench testing setup for 3500 sensor series.

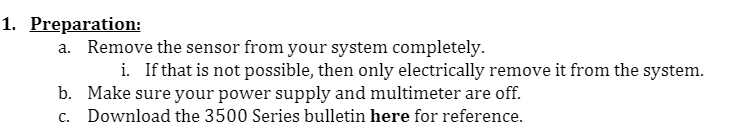

Bench test setup for Gems 3500 sensor.

d. Reference the pinout chart for the two pins/wires used in the 4-20 mA output:

Alternate bench test view of Gems 3500 sensor.

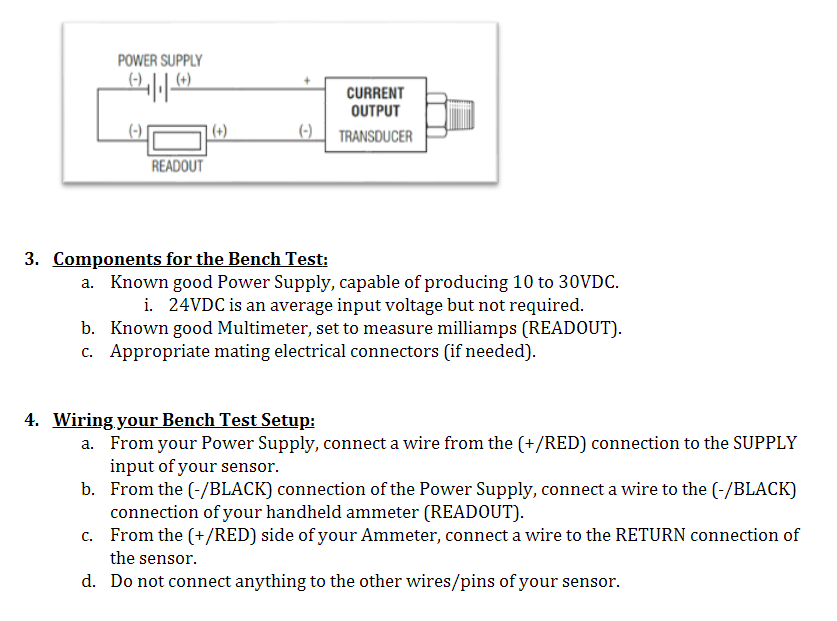

2. Basic wiring diagram:

See below.

Gems 3500 sensor bench testing configuration.

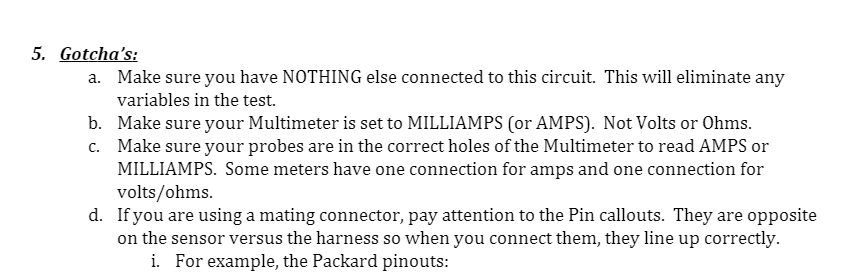

Sensor calibration during Gems 3500 bench testing.

Gems 3500 sensor under bench test conditions.

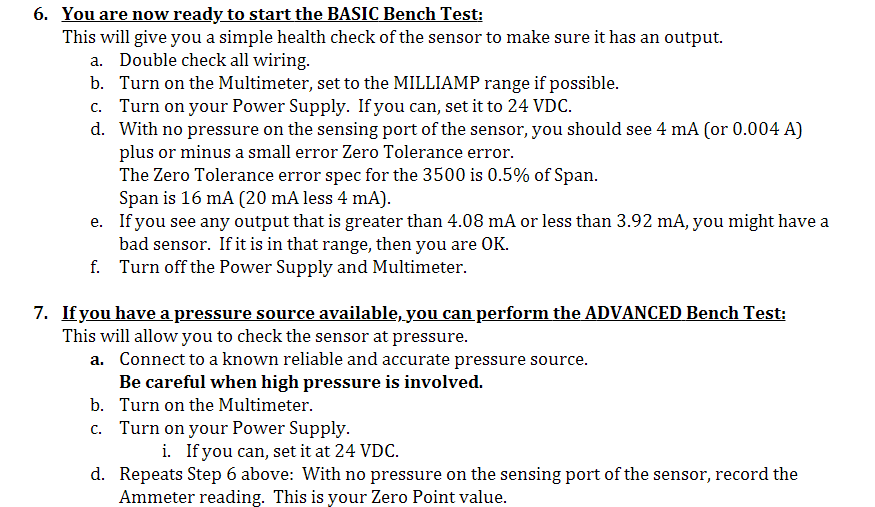

Detailed bench test of Gems 3500 sensor.

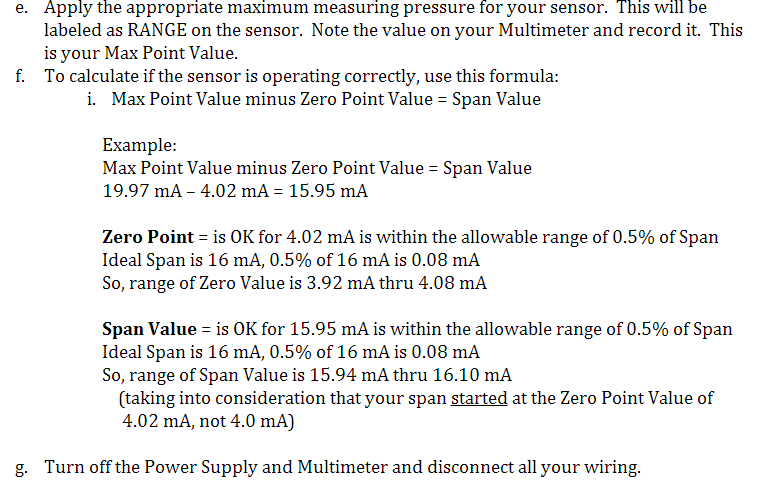

Final stage bench testing of Gems 3500 sensor.

8. If you find that your sensor is not reading correctly, contact Gems for options.
