Why Water Contamination is Still the #1 Hidden Failure Mode in Diesel Systems... And How OEMs are Designing it Out
Modern diesel systems have never been more efficient (or more vulnerable).
With high-pressure common rail (HPCR) systems operating under tight tolerances, even small amounts of water contamination can have serious consequences. Despite advances in fuel system design, water ingress remains one of the most persistent and underestimated sources of failure in both mobile and stationary diesel applications.
For OEM engineers, system designers, and operators, the challenge is not only understanding the risks of water contamination. It’s about detecting and preventing it before damage occurs.
The Reality: Water Contamination Is Inevitable
Water enters diesel systems through a variety of unavoidable pathways:
- Condensation in fuel tanks, especially in environments with temperature cycling
- Fuel handling and storage, including transfer from delivery systems and bulk tanks
- Environmental exposure, particularly in marine, construction, and off-highway equipment
- Idle or standby systems, such as backup generators, where fuel sits for extended periods
Because water is denser than diesel, it naturally settles at the lowest point in the system, typically in fuel tanks, filters, or dedicated water-separation bowls. This makes localized accumulation likely, even when overall fuel quality appears acceptable.
The Consequences: Small Contamination = Major Failures
The presence of water in diesel fuel introduces multiple failure modes, many of which develop before any visible symptoms appear.
1. Loss of Lubrication and Component Wear
Diesel fuel acts as a lubricant for high-pressure pumps and injectors. Water reduces this lubrication, leading to accelerated wear in components that rely on tight tolerances.
2. Corrosion and Material Degradation
Free water promotes oxidation and corrosion of metallic components throughout the fuel system. Over time, this can weaken internal surfaces, leading to leaks, debris generation, and system instability.
3. Injector and Pump Damage
Modern injection systems operate at extremely high pressures and are highly sensitive to contamination. Water intrusion can result in scoring, pitting, and premature failure of injectors and pumps.
4. Microbial Growth
Water creates an environment for microbial growth, leading to sludge formation, filter clogging, and additional corrosion risks.
5. Operational Downtime and Maintenance Costs
In fleet, industrial, and power generation applications, these issues translate directly into unplanned downtime, higher maintenance costs, and reduced equipment life.
The Problem with Traditional Mitigation Strategies
Historically, water contamination has been managed through:
- Scheduled maintenance intervals
- Manual draining of fuel filters and separators
- Visual inspection of fuel systems
While these approaches can help reduce risk, they share a common limitation. They are reactive and not preventative.
Water contamination often reaches damaging levels between inspection intervals, meaning issues are only identified after performance degradation has begun.
For modern diesel systems, this approach is no longer sufficient.
A Shift in Design: From Reactive to Proactive Detection
To address this gap, OEMs are increasingly integrating continuous monitoring into fuel system design.
Rather than relying on periodic checks, these systems provide real-time visibility into contamination levels, enabling early intervention before damage occurs.
How It Works

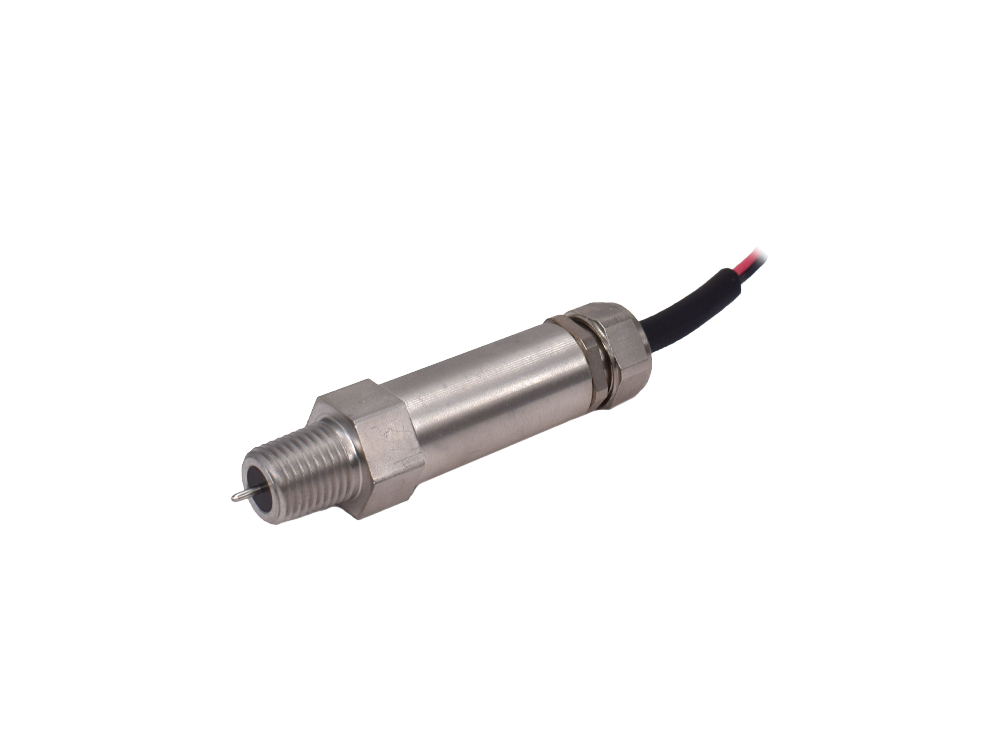

Water-in-fuel(WIF) sensors, such as Gems’ WIF-1250, are designed to detect the presence of water by measuring differences in electrical properties between diesel fuel and water.
- Diesel fuel is largely non-conductive
- Water conducts electricity (especially with impurities)
When water accumulates at the sensor’s probe, typically located at the lowest point in a system, the change in conductivity triggers an electrical output. This signal can be used to:
- Activate warning lights or alarms
- Interface with engine control units (ECUs)
- Integrate into PLC or system-level monitoring
This enables operators and control systems to respond before contamination reaches critical levels.
Designing for Reliability: Where Detection Matters Most
To be effective, water detection must be strategically integrated into the fuel system.
Key locations include:

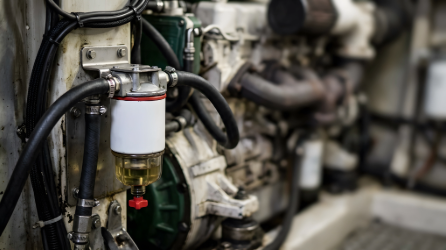

- Fuel filter and water separator housings
(where water naturally collects during filtration) - Diesel fuel storage tanks
(including onboard tanks and bulk storage systems) - System low points in piping or reservoirs
(where accumulation occurs over time)
Key design considerations:
- Sensor placement at the lowest point for accurate detection
- Robust construction to withstand temperature extremes and harsh environments
- Signal reliability, avoiding false positives from fuel movement (“sloshing”)
- Integration capability with electrical systems (ECU, PLC, alarms)
Enabling Proactive Protection in Modern Systems
Solid-state WIF sensors have emerged as a preferred solution for OEM integration because they provide:
- No moving parts, reducing mechanical failure risk
- Compact form factors for easy installation in tight system geometries
- Reliable detection performance in harsh operating conditions
- Electrical outputs compatible with modern control systems
Solutions such as the WIF-1250 are designed specifically for these environments, supporting applications such as:
- Off-highway equipment (agriculture, construction, mining)
- Commercial transportation and fleet vehicles
- Marine systems
- Industrial engines and generator sets
- Rail and locomotive platforms
These sensors can be installed in fuel filters or diesel storage tanks to provide early warning of contamination, helping protect critical fuel system components.
The Bottom Line: Water Detection Is Now a Design Requirement
As diesel systems continue to evolve, expectations for reliability, uptime, and lifecycle are rising.
Water contamination is not a rare issue. It is an expected condition that must be actively managed.
Forward-looking OEMs are responding by shifting from reactive maintenance to Proactive system design with integrated detection. By incorporating water-in-fuel sensing into the system architecture, engineers can:
- Reduce risk of component failure
- Extend equipment life
- Minimize downtime
- Improve overall system reliability
Take the Next Step
If you're designing or specifying fuel systems for diesel applications, early detection of water contamination is critical.
See how water-in-fuel sensing can be integrated into your design or explore specifications for proven solutions like the WIF-1250.
