4700 Series Thin Film Pressure Transducer (Discontinued)

Part Number:
Unavailable REQUEST A QUOTE

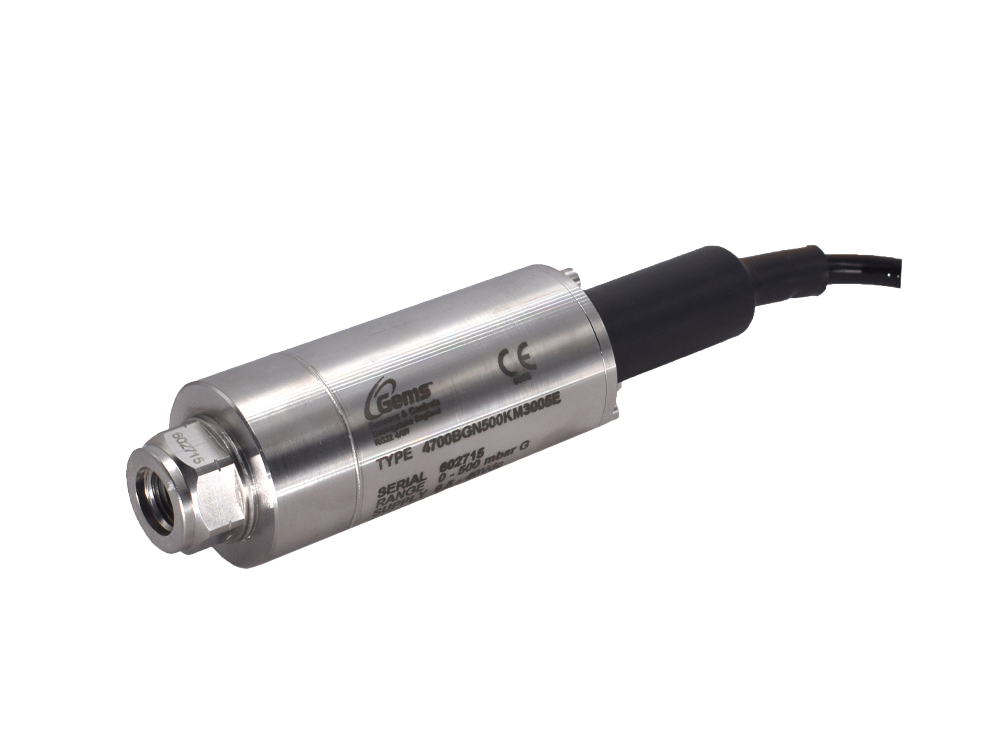

4700_Transducer
Image is of similar product

PRODUCT DESCRIPTION:

Please note that this product is now obsolete and no longer available.

4700 Series Thin Film Pressure Sensors provide precise laboratory type measurements in a rugged industrial package complete with turndown capabilities. Exceptional levels of stability and other performance specifications are achieved by using a sputtered sensing element, which achieves a molecular fusion of a strain gauge material, an insulating material, and the 17-4 PH ss sensing element.

  • Current Output
  • Gauge; Sealed and Absolute Models
  • Submersible; General Purpose and Wash Down Enclosures
  • Intrinsically Safe Models

FEATURED DOWNLOADS:

Catalog Page

Features

  • Current Output
  • Gauge; Sealed and Absolute Models
  • Submersible; General Purpose and Wash Down Enclosures
  • Intrinsically Safe Models
Sensor Type
Strain Gauge (Sputtered)
Purpose
Hazardous Locations
Minimum Temperature
-22°F
Maximum Temperature
212°F
Minimum Pressure
2 psi
Maximum Pressure
10,000 psi

Gems Sensors Instructions, 4700B HAZLOC

Format .pdf
Size 77 KB
Download

Gems Sensors Product Resource, 4700B/6700B Series ATEX Cert

Format .pdf
Size 766 KB
Download
Instructions_560550-0077

Gems Sensors Instructions, 4700B Standard

Format .pdf
Size 94 KB
Download
Catalog-H_4700-Series_thumb

Gems Sensors Catalog, 4700

Format .pdf
Size 468 KB
Download
